Service Manual

Koh Young Technology Inc.

4.2. AXIS & SETTING(Position Setting)

It is to set up the basic position setting of the machine.

Location: Menu  Settings  SystemSettings  Axis & Setting

4.2.1. AXIS & SETTING

Set up the values such as PCB origin, Conveyor Width, PCB Origin, Focus Position. (Factory

Setting)

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

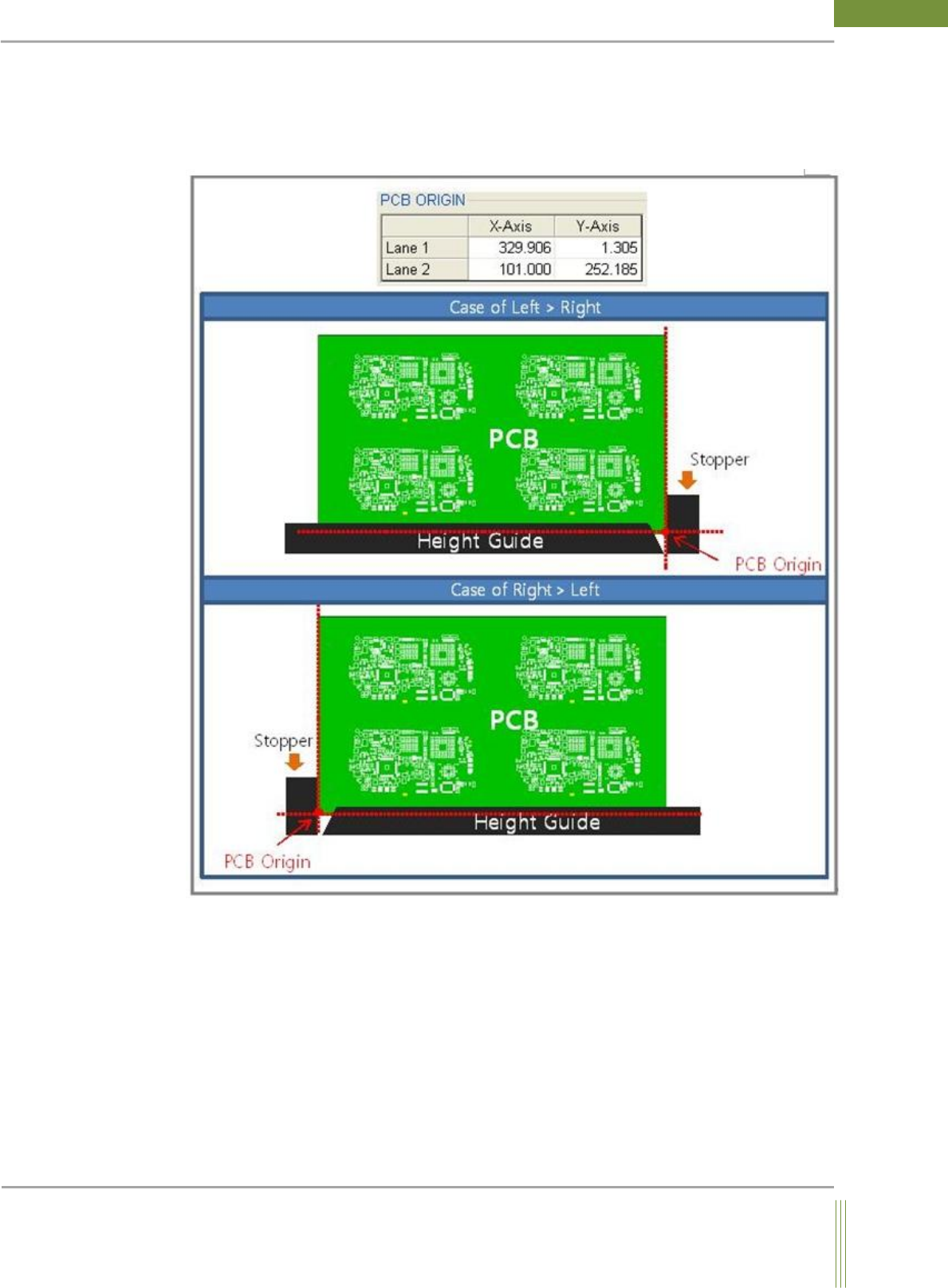

 PCB ORIGIN

The reference point of inspection. As below picture, if PCB flow direction is from Left to

Right side, the bottom left side is the origin of PCB, and If PCB flow direction is from Right

to Left, the bottom right side is the origin of PCB

Service Manual

Koh Young Technology Inc.

 AXIS STROKE(Unit. mm)

1. Set up the MIN/MAX motion range in X, Y, and Z axis. (Values differ from the machine type)

It serves an interlock function in S/W, and the movement command has to be set within this

range.

2. When you set AXIS STROKE, the range has to be set within the position of +, - Limit Sensor.

 FID_INSPECTION_METHOD

It is the order of fiducial mark inspection on array board.

0. Fid->Pad->Fid->Pad->…: Inspect the fiducial marks and start pad inspection on each array.

1. Fid All -> Pad All Inspection: After inspecting all fiducial marks in the board, pads are

inspected.
