Service Manual

Koh Young Technology Inc.

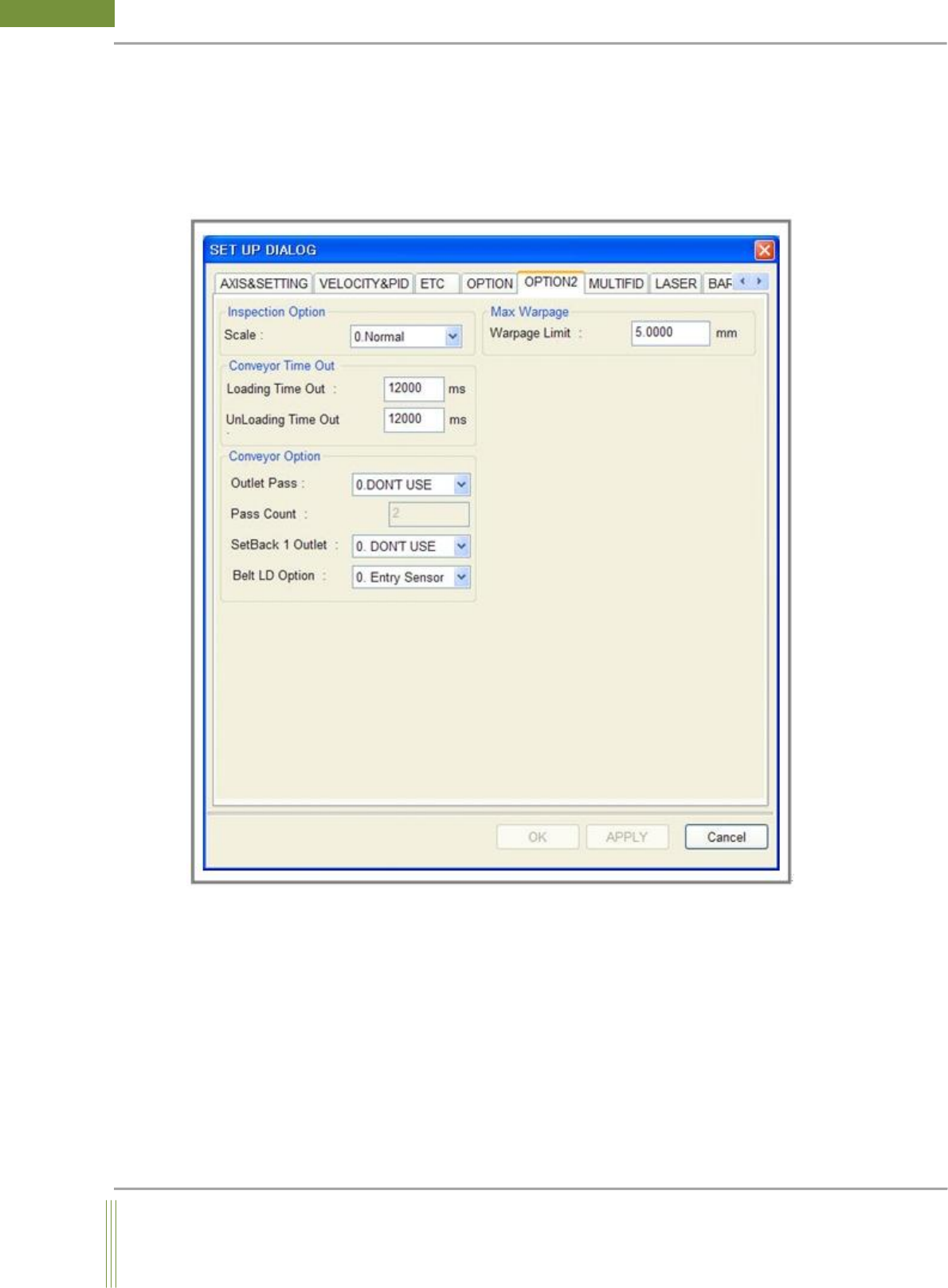

4.6. OPTION2 SETTING

It is setting for the optional items.

Location: Menu  Settings  SystemSettings  OPTION2

4.6.1. OPTION2 SETTING

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

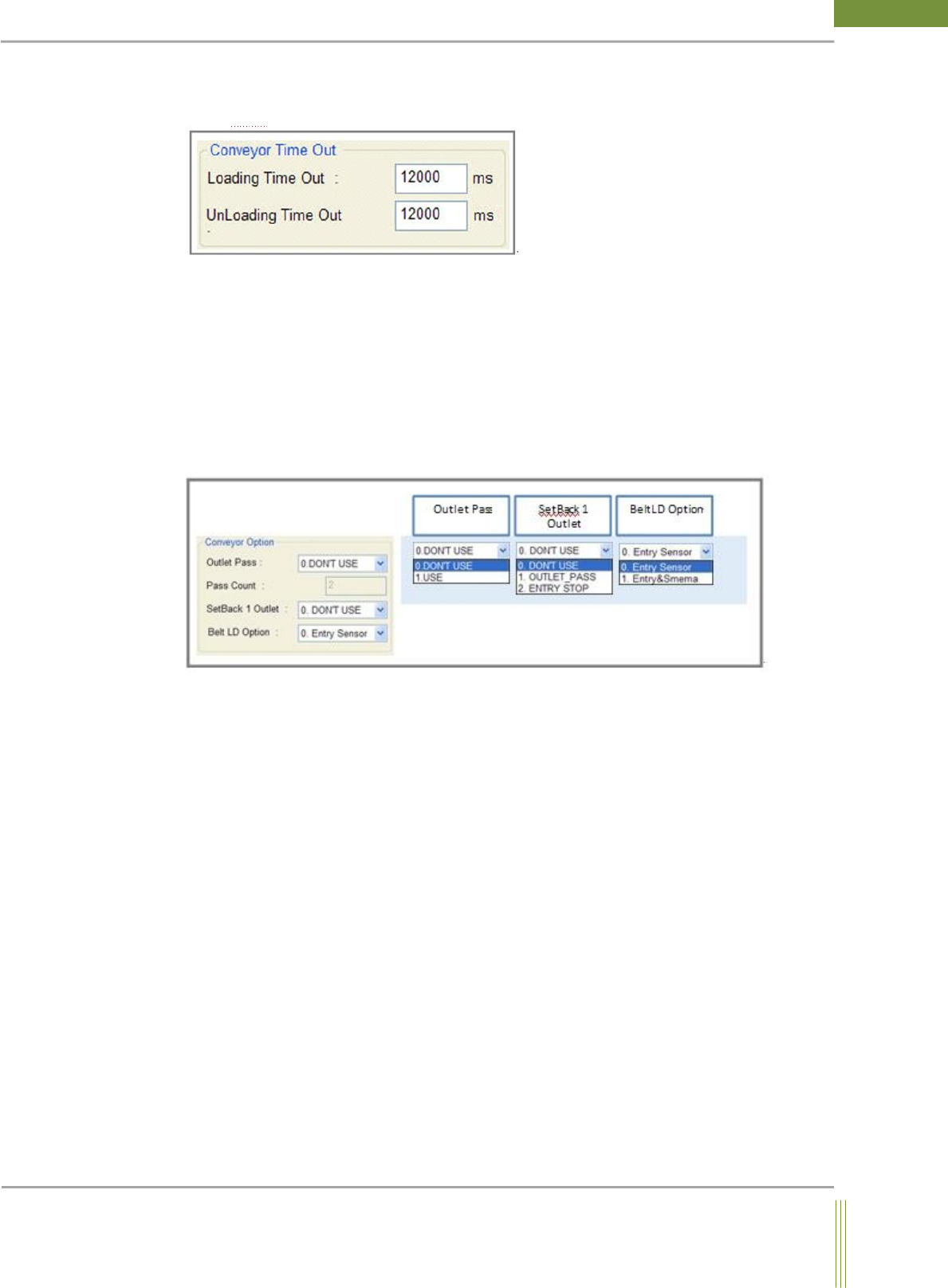

 Conveyor Time Out Setting

It is to set the time of PCB(Board) Loading / Unloading TimeOut.

1. Loading Time Out:

If the PCB is not arrived at Working Position for the time set in Loading Time Out, it is

judged error. (The time when a PCB arrives at Work Out Sensor after Entry-In sensor

detects PCB.)

2. UnLoading Time Out:

If the PCB does not move to next machine for the time set in UnLoading Time Out, it is

judged error.

 Conveyor Option Setting

1. Outlet Pass & Pass Count:

This is to set the PCB Pass Mode(as per PCB quantity) to improve machine cycle time.

0. DON’T USE: Do not use Outlet Pass Mode.

1. USE: Use Outlet Pass Mode.

Ex ) Outlet Pass Mode

2: One per two PCBs is passed without inspection. (Inspection  Pass  Inspection)

3: Two per three PCBs are passed, and one PCB is inspected. (Inspection  Pass  Pass 

Inspection)

However, the first PCB after Error or Reset is required to be inspected.

Service Manual

Koh Young Technology Inc.

2. SetBack 1 Outlet Option :

0. DON’T USE: Do not use SetBack 1 Outlet Mode.

1. OUTLET_PASS: After inspecting PCB when it arrives at the work position from Entry,

the request signal would come from the previous machine. Then, pass it to the previous

machine.

PCB PCB

[Figure 1. Inspection] [Figure 2. Pass the PCB after inspection]

2. ENTRY STOP: After inspecting PCB as below picture, PCB is stopped at the entry

position. The user has to remove the PCB at this moment and load it again at the entry

position. Then, repeat it.

PCB PCB

PCB

[Figure 1. Inspection] [Figure 2. Stop at the entry after inspection]

3. Belt LD Option: PCB Loading Option

Entry Sensor:

When Entry In Sensor detects a PCB, conveyor belt moves.

Entry & Smema:

When the Smema Ready signals of both Entry In and previous machine are on, conveyor

belt moves.

 Max Warpage Limit Setting

It is to set the warpage limit. If the warpage larger than the set value occurs when Z-

Tracking Inspection, it is judged error.
