25
Service Manual
Koh Young Technology Inc.

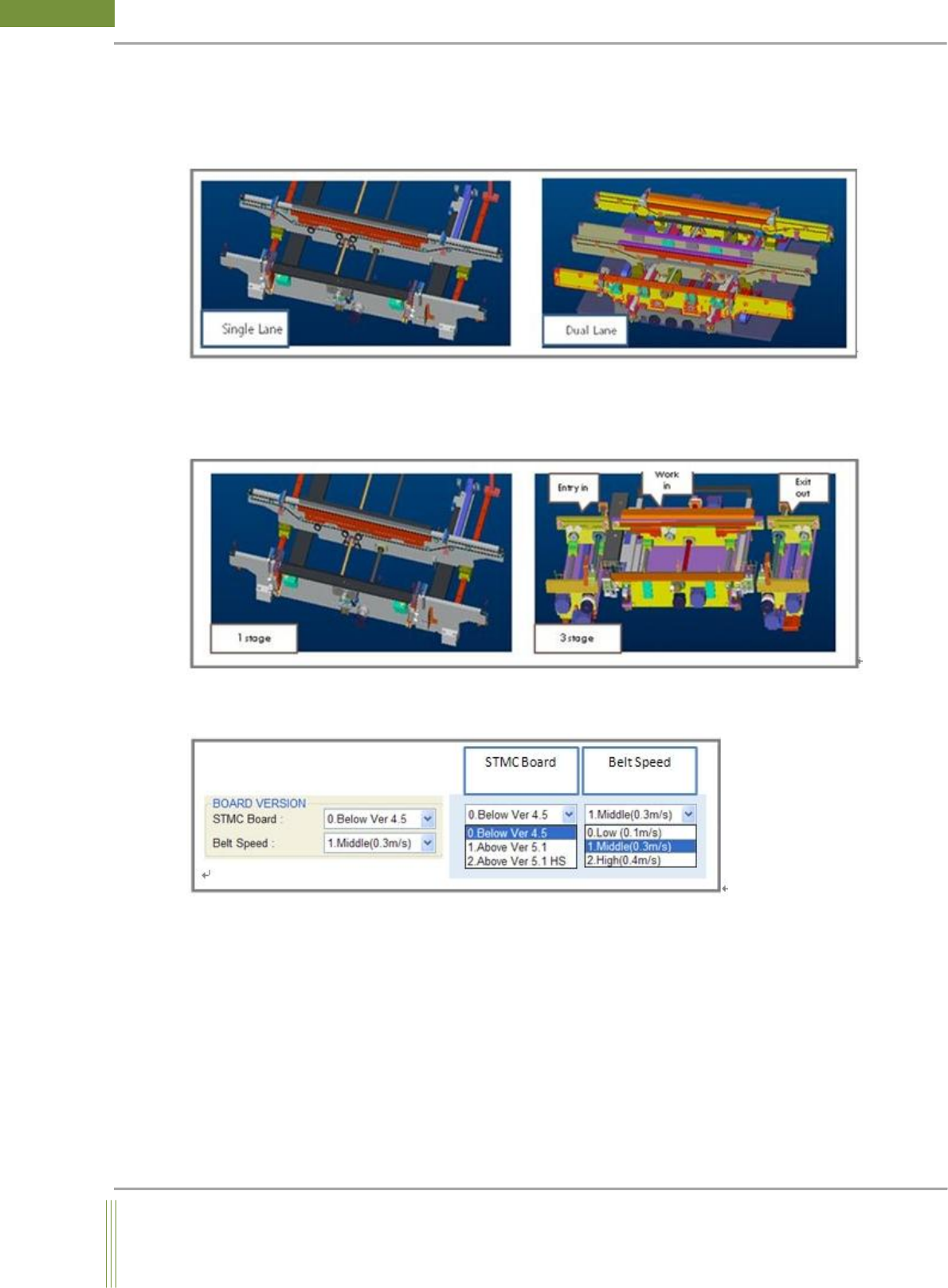

3. LANE TYPE
Select the right one depending on how many lanes are in machine to perform PCB
inspection. If there are two lanes, it is Dual lane. And if there is only one lane, it is Single
lane.
4. Stage Type
There are two types of stage for Conveyor as 1 Stage or 3 Stage. Usually 3030VA or 3030VAL
machine is 3Stage type and 8030s is 1Stage type. (It may differ due to the customer’s
request.)
BOARD VERSION(STMC)
0. Below Ver 4.5: Applicable for below STMC Board 4.1
1. Above Ver 5.1: From STMC Board 5.1
2. Above Ver 5.1 HS: From STMC Board 5.1 with High Speed spec.
26
WinMCS_Manual(ENG) rev1.0
Koh Young Technology Inc.

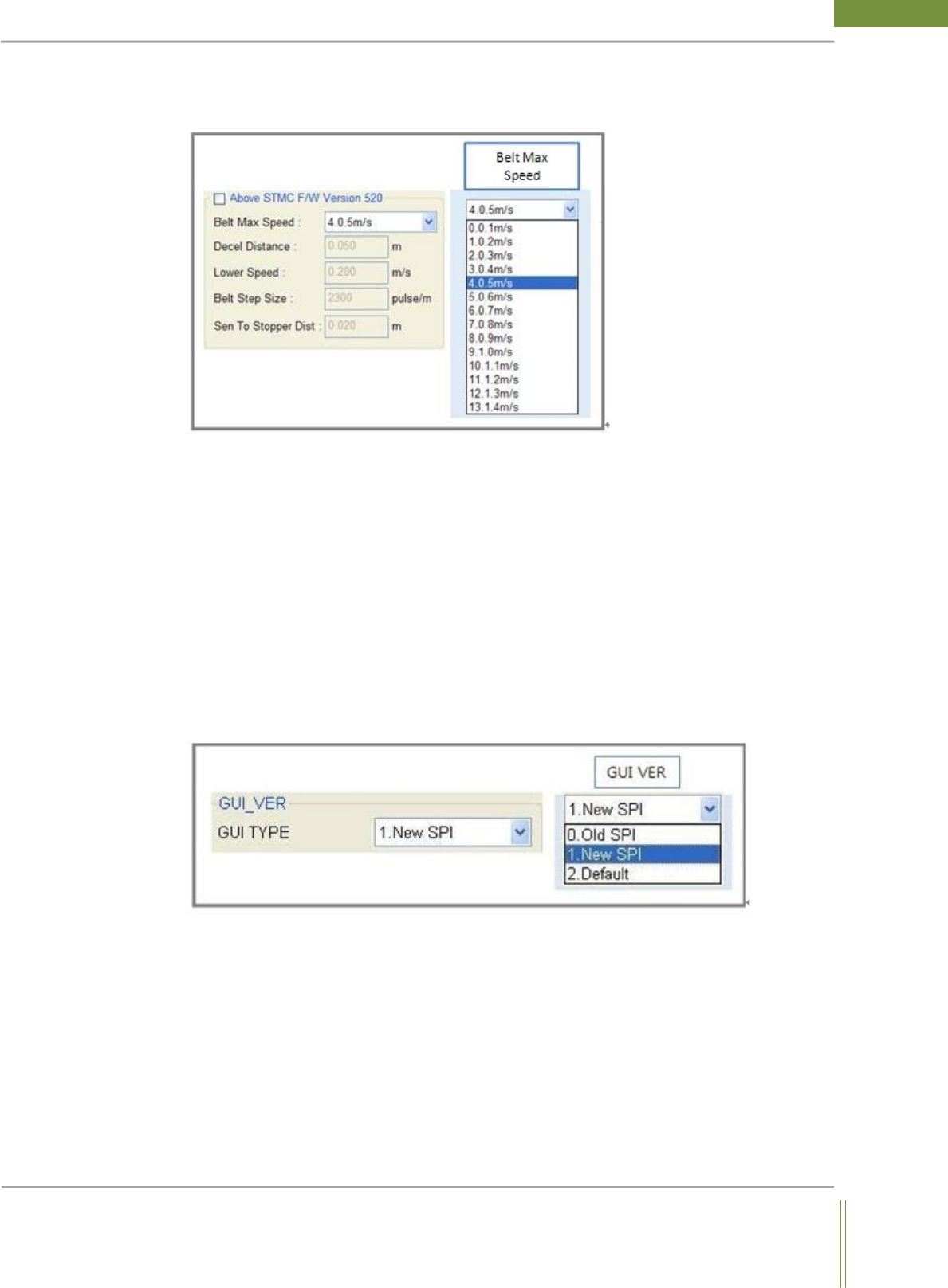

STMC CONVEYOR BELT SPEED ADJUSTMENT(Available from STMC Firmware
Ver. 520)
1. Above STMC F/W Version 520:
Belt speed option is activated when the check box is enabled.
2. Belt Max Speed:
Set the belt speed when the inspection starts.
3. Decel Distance:
Default value.
4. Belt Step Size:
Default value.
5. Sen To Stopper Dist:
Set the distance between work out sensor and work stopper. (Factory Setting)
GUI VER
1. GUI TYPE:
0. Old SPI: OLD GUI(Standard) version
1. New SPI: New GUI version
2. Default: Not applicable
27
Service Manual
Koh Young Technology Inc.

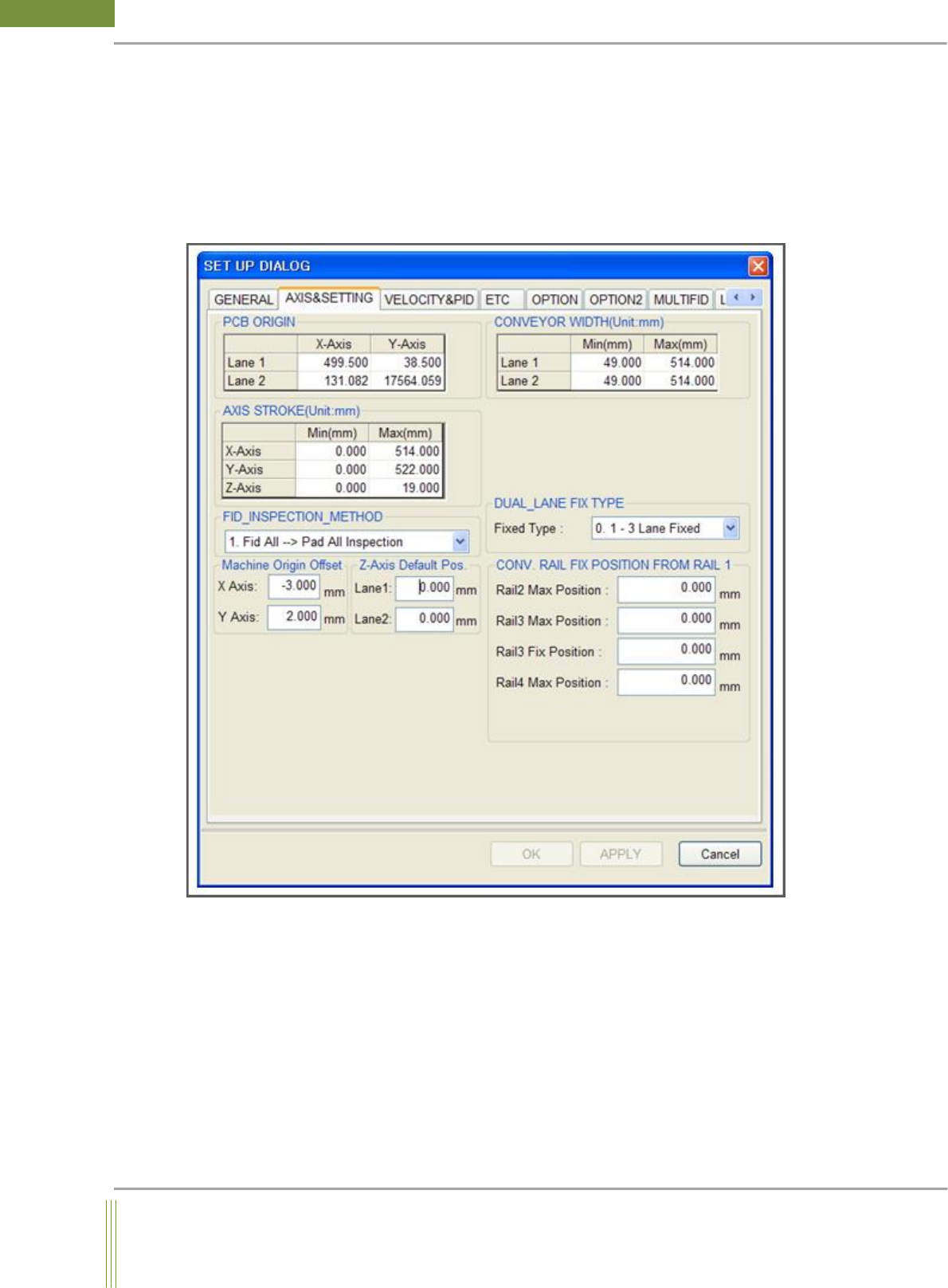

4.2. AXIS & SETTING(Position Setting)
It is to set up the basic position setting of the machine.
Location: Menu Settings SystemSettings Axis & Setting
4.2.1. AXIS & SETTING
Set up the values such as PCB origin, Conveyor Width, PCB Origin, Focus Position. (Factory
Setting)
