62
WinMCS_Manual(ENG) rev1.0
Koh Young Technology Inc.

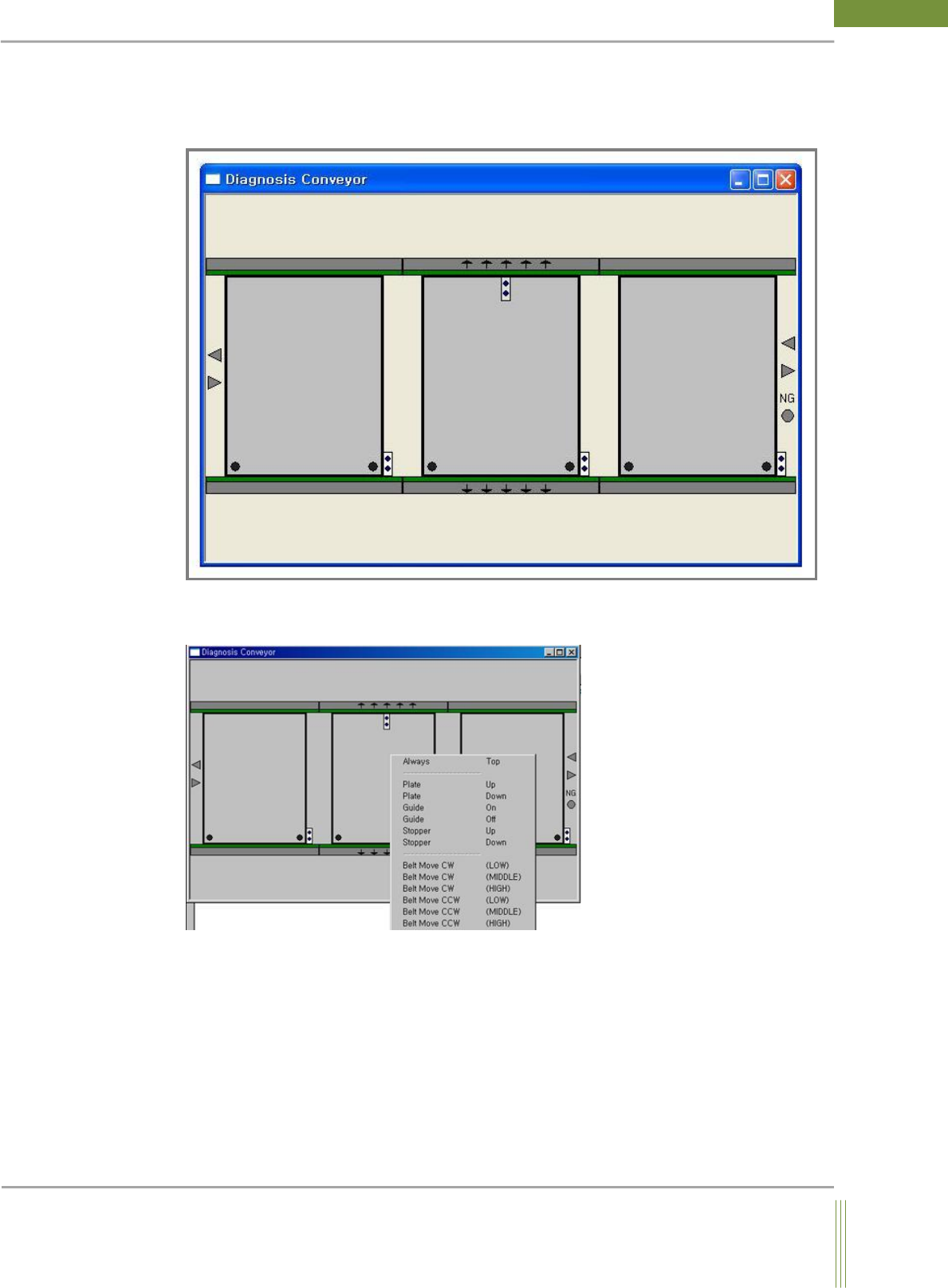

7.1.1. Diagnosis for Conveyor (Kohyoung Level)
It is a function to diagnose all sorts of conveyor sensors and sequence when the inspection
is in progress.
It shows the status of conveyor PCB visually. The status of IO, board and SMEMA
regarding conveyor can be checked.
You can check the related I/O, belts or etc. by clicking on the right mouse button.
63
Service Manual
Koh Young Technology Inc.

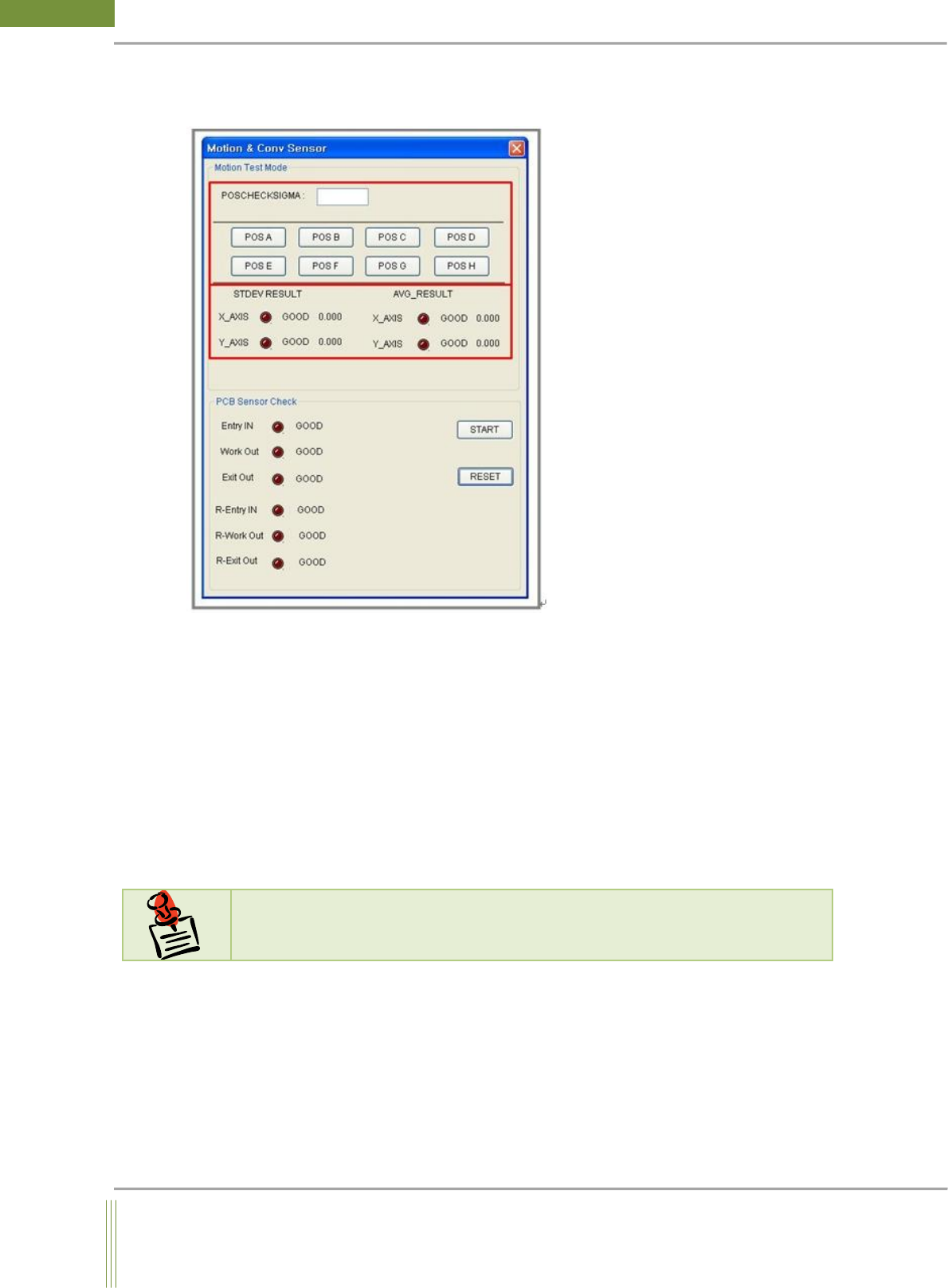

7.1.2. Diagnosis for Motion & Conveyor (Kohyoung Level)
It is a function to diagnose the status of X, Y, Z Motion and Conveyor Sensor.
1. Motion Test Mode
It is to check X – Y – Z Axis Motion.
POSCHECKSIGMA: Input the delay time from 0 to 50 and press Enter key to check
the motion error on X, Y, and Z axis.
POS A ~~ POS H: Check the motion of X, Y and Z Axis on each stroke section
2. PCB Sensor Check
It is to check the status of PCB Sensors(Entry, Work, Exit) of conveyor.
START: Test the Conveyor PCB Sensor automatically.
RESET: Reset PCB Sensor test result.
N
N
o
o
t
t
e
e
Progress it as the instructions which are displayed on the screen when it starts.
64
WinMCS_Manual(ENG) rev1.0
Koh Young Technology Inc.

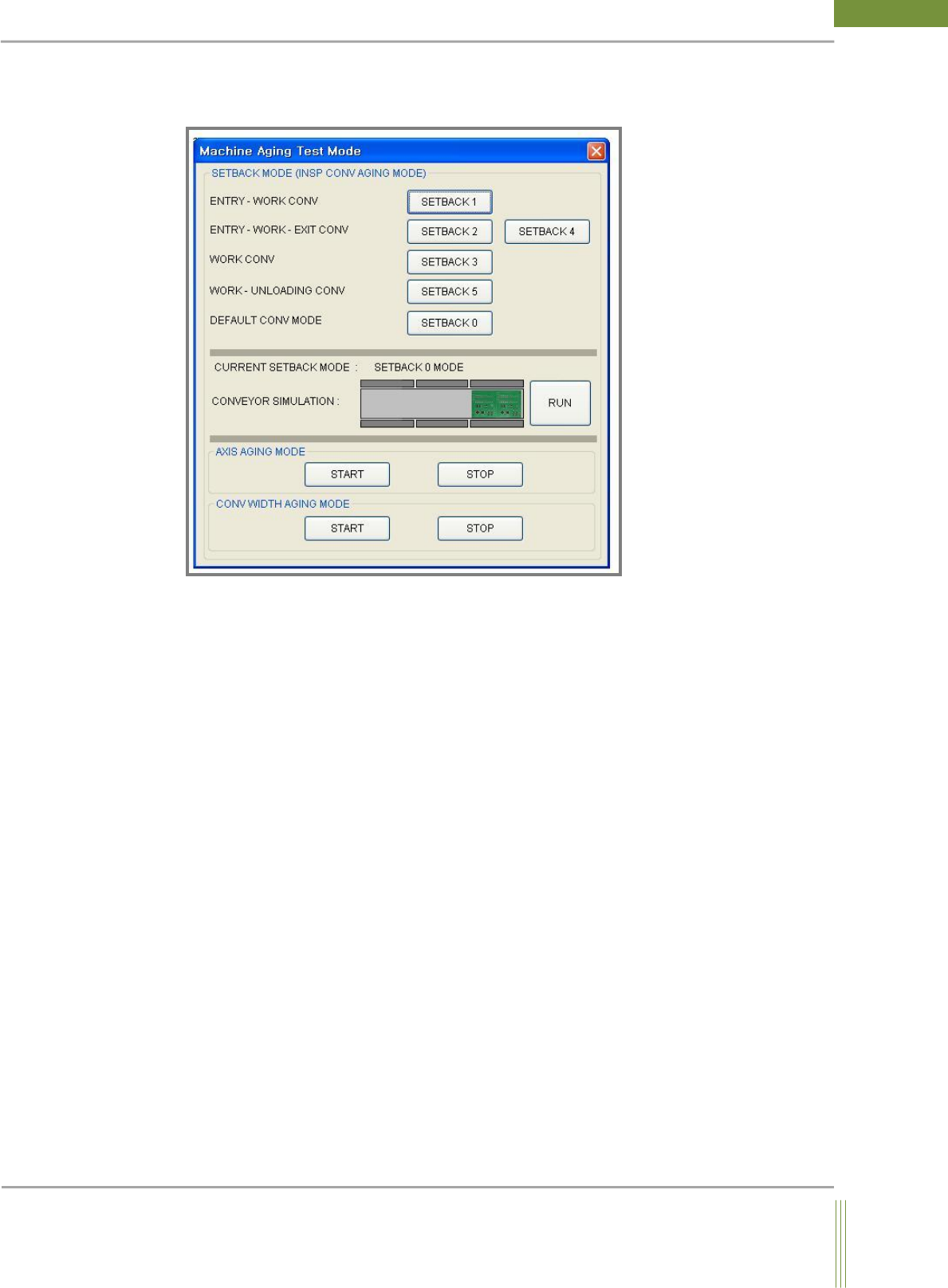

7.1.3. MACHIEN AGING MODE (Kohyoung Level)
This is a test mode for movement of Motion, Conveyor Width Aging and inspection.
1. SETBACK MODE ( INSP CONV AGING MODE )
SETBACK 1: Mode to inspect PCB at Entry and Work conveyor repeatedly
SETBACK 2: Mode to inspect PCB at Entry, Work and Exit conveyor repeatedly
SETBACK 3: Mode to inspect PCB at Work conveyor fixed
SETBACK 5: Mode to inspect PCB at Work conveyor, then inspect Plate Down-Up
SETBACK 0: General inspection mode
2. AXIS AGING MODE (Factory Setting)
Motion (X, Y) Axis Aging Mode. X and Y axis repeatedly move to the Min/Max position of
the stroke.
0. START: Axis Aging Mode START
1. STOP: Axis Aging Mode STOP
3. AXIS AGING MODE ( Factory Setting )
This is a mode which moves to Home of conveyor or particular position repeatedly.
0. START: Start width control of conveyor.
1. STOP: Stop width control of conveyor
