3 Installation
3.2 Installation of Pin PIcker
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 99
3.2.2 Fitting the Spacers
Overview
Fig.20: Spacer
Spacer (buffer) for SPS [03094012-xx]
The spacers are needed if the pin picker is
fitted towards the gantry root at gantry 1 or
3. This is always the case, except at gantry
3 in X3 S machines. (See also 2.4 "Possible
Configurations/Required Equipment" [}82] )
Fig.21: Bushing in buffer
CAUTION!
The bushing (1) can easily fall out of
the buffers.
Make sure that you do not lose these.
Make sure that the bushing is in the
buffer before you screw the buffer into
place (2).
.
Installation
Fig.22: Buffer with spacer
► Remove the screw fastening the buf-
fer(1) and then remove the buffer.
Make sure that you do not lose the
bushing.
► Screw the spacer(2) into place.
► Screw the buffer onto the spacer. Make
sure that you do not lose the bushing.
► Repeat this procedure for the second buffer on the gantry root.
► Carefully push the head mount against the buffer and check whether cables have been
trapped. Correct how the cables are run, if this occurs.
► Repeat this procedure for all gantries affected.
3 Installation
3.2 Installation of Pin PIcker
100 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
3.2.3 Establishing Electrical Connections
You need the following parts for each pin picker:
●
5x cable ties W=2.4mm L=92mm TYB-23M "black" [00805140-xx]
●
1x mounting base MB1 [00362777-xx]
●
1x DIN7991-M3x6-A2 screw [03016240-xx]
Overview
Fig.23: Pin picker left and right
L Pin picker left R Pin picker right
3 Installation
3.2 Installation of Pin PIcker
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 101
Running the round cable
► Running the round cable as shown in the diagrams:

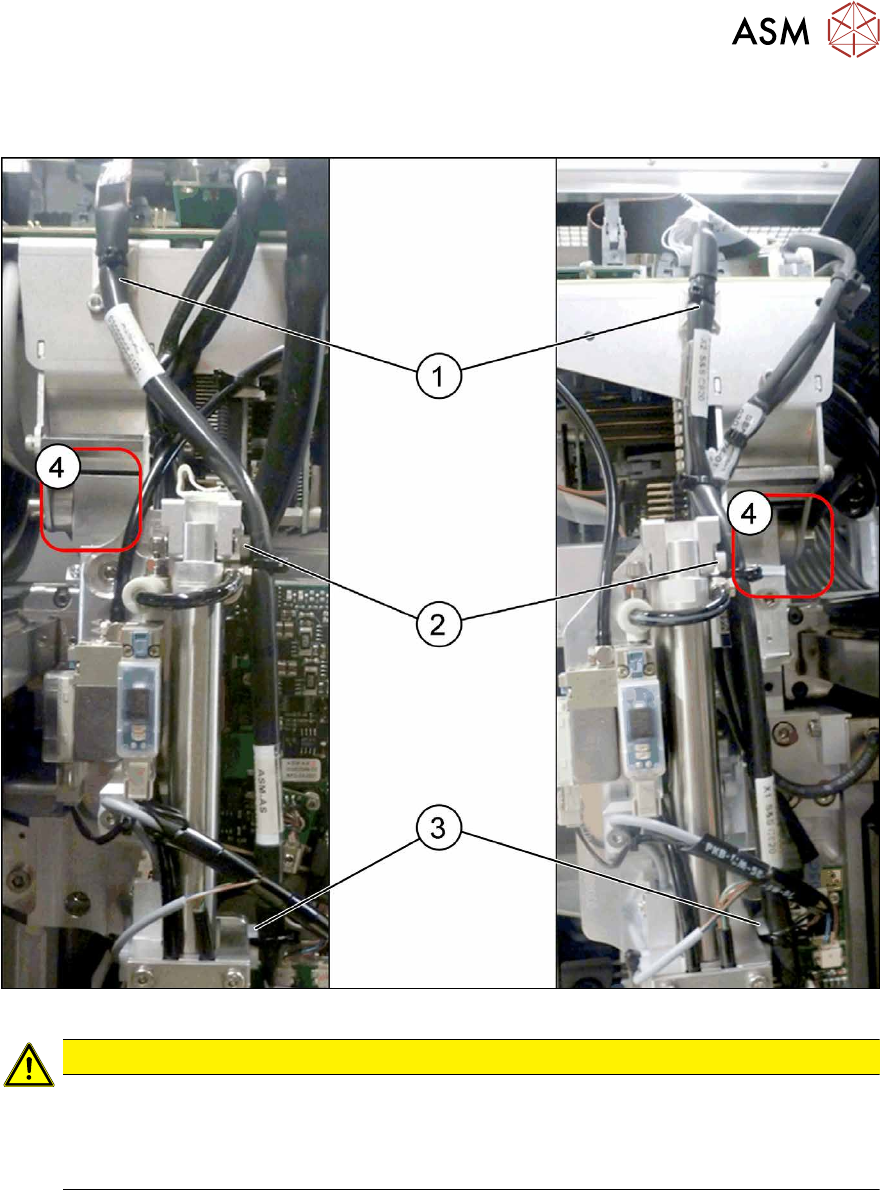

Fig.24: Overview of cables - left and right
CAUTION
Cable and hose path
► Make sure that the entry areas for the gantry buffer (4) are kept free of cables and
hoses. These could be trapped otherwise.
► Observe the detail views in the following diagram.
► Fasten the round cable with a cable tie at(1). If there is no suitable lug here, attach an adhes-
ive pedestal.
► Screw a mounting pedestal into place at (2). Fix the round cable to the mounting pedestal with
a cable tie.
► Screw a mounting pedestal into place at (3). Fix the round cable to the mounting pedestal with
a cable tie.
