2 Brief Description
2.4 Possible Configurations/Required Equipment
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 85
2.4.2 Possible configurations/required equipment - SIPLACE X4i S
NOTICE
3D sensor, IC camera
A 3D sensor can only be installed at location 2.
If there is a 3D sensor at location 2, you also need to install an IC camera there. In this
case, you will not be able to install a pin magazine at location 2.
SIPLACE X4 S – configuration 1
1 Pin picker (2x left, 2x right) 2 W5 magazine (4x)
3 Stationary cameras
Notes:
●
3 tracks (locations 1 and 3) can not be
reached due to the pin picker
●
Table position 3
●
One/two W5 magazines (per location)
●
2 dummy feeders
●
Gantry 1 and 3: pin picker left
Gantry 2 and 4: pin picker right
●
One/two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X4 S [00119993-xx]
– 2x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
If required, additionally (for 8 W5 magazines): 4x Smart Pin Support set 5 pins [00119995-xx]
(=20pins)
●
4x or 8x Smart Pin Support magazine W5 [00119998-xx]
●
4x Spacer for SPS [03094012-xx]
●
2x Dummy feeder [00519876-xx] (for location 1 and3)
●
4x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
2 Brief Description
2.4 Possible Configurations/Required Equipment
86 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019

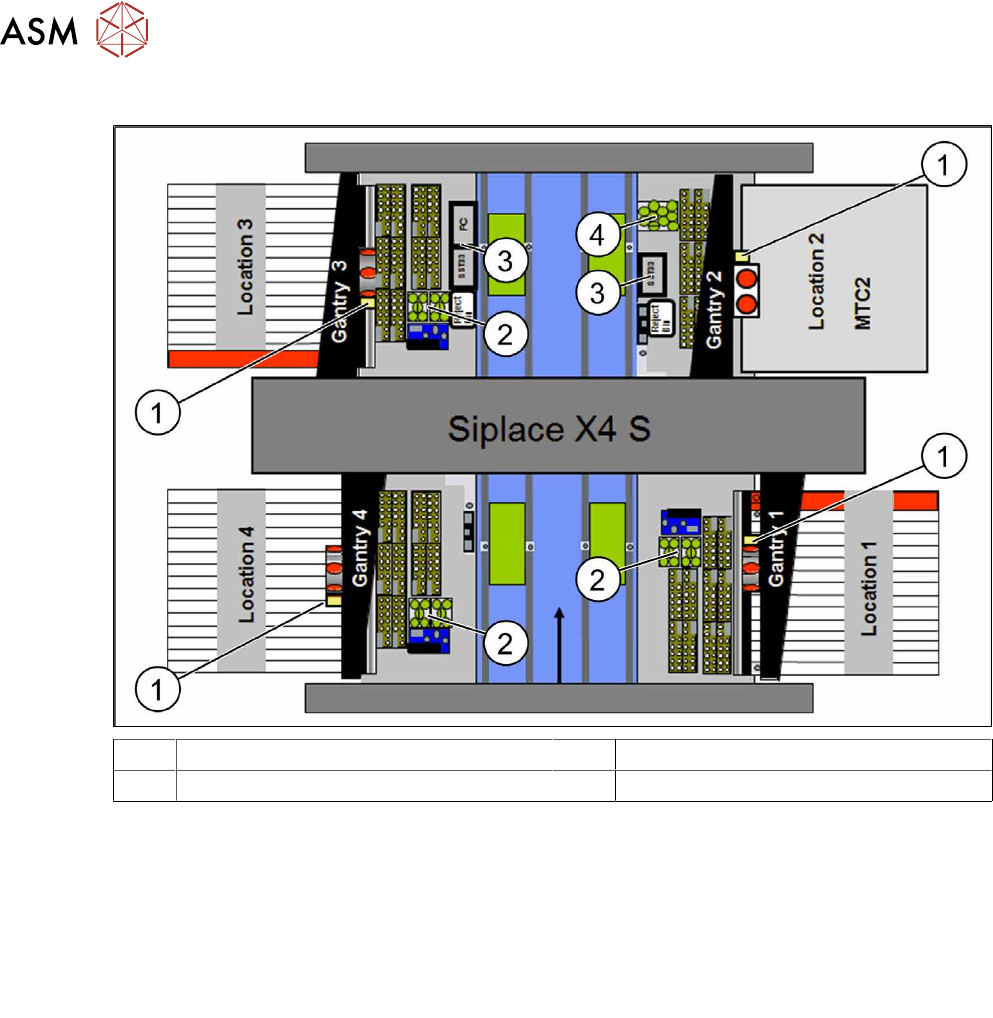

SIPLACE X4 S – configuration 2 with MTC
1 Pin picker (2x left, 2x right) 2 W5 magazine (3x)
3 Stationary cameras 4 Q10 magazine (1x)
Notes:
●
3 tracks (locations 1 and 3) can not be
reached due to the pin picker
●
Table position 3
●
Gantry 1 and 3: pin picker left
Gantry 2 and 4: pin picker right
●
One/two NC rows
●
2 dummy feeders
●
Two W5 magazines (locations 1, 3 and4)
One Q10 magazine (location2)
●
A 3D sensor will always be fitted at loca-
tion 2. A 3D sensor is not possible for this
configuration with MTC and SPS.
Parts required:
●
1x Smart Pin Support - pin picker – package – X4 S [00119993-xx]
– 2x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
6x Smart Pin Support magazine W5 [00119998-xx]
●
1x Smart Pin Support magazine Q10 assembly [03098557-xx]
– 1x Smart Pin Support magazine Q10 [03087508-xx]
– 1x Magazine holder Q10 [03088072-xx]
●
4x Spacer for SPS [03094012-xx]
●
2x Dummy feeder [00519876-xx] (for location 1 and3)
●
3x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
●
1x IC camera adaptor assembly SX4a [03099054-xx] (adapter for Q10 magazine holder)
2 Brief Description
2.4 Possible Configurations/Required Equipment
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 87
2.4.3 Possible configurations/required equipment - SIPLACE X3 S
NOTICE
3D sensor, IC camera
A 3D sensor can only be installed at location 2.
If there is a 3D sensor at location 2, you also need to install an IC camera there. In this
case, you will not be able to install a pin magazine at location 2.

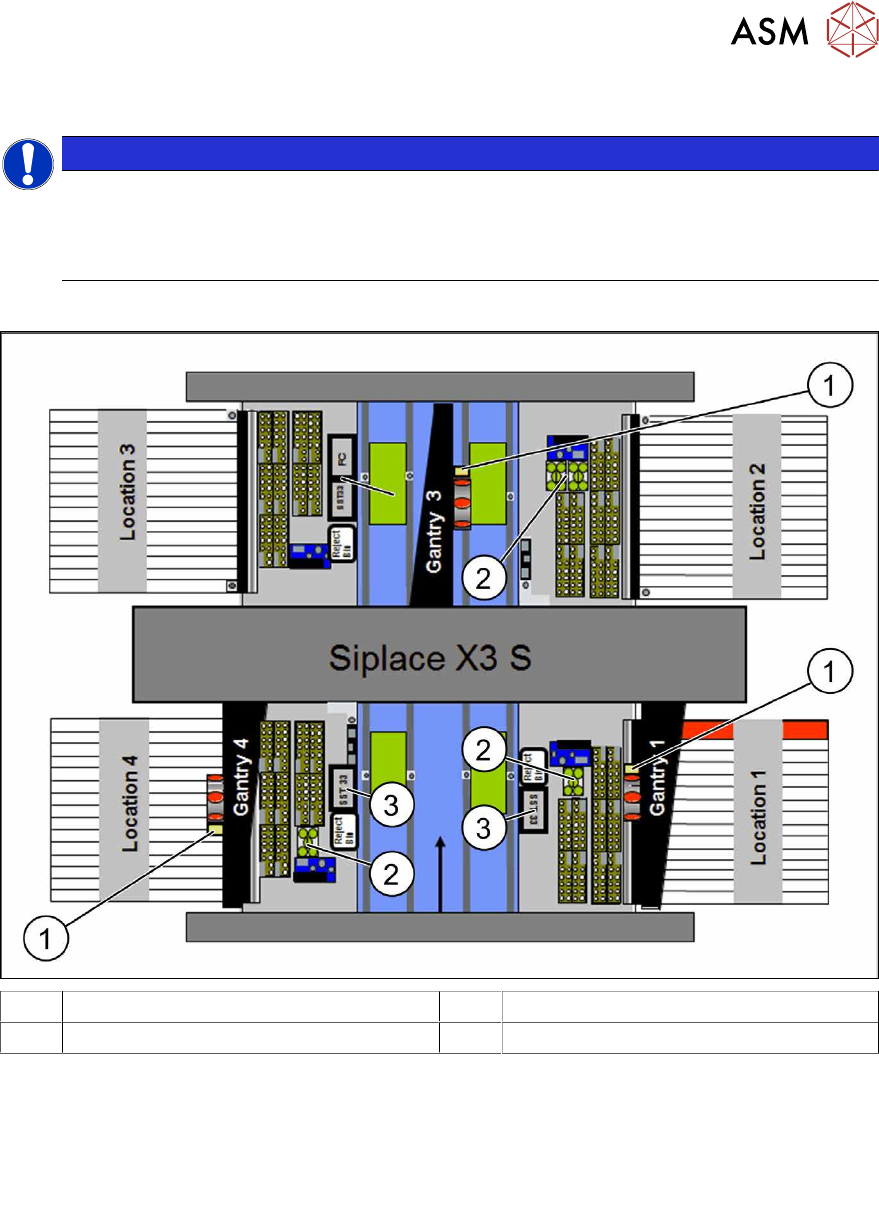

SIPLACE X3 S – configuration 1
1 Pin picker (1x left, 2x right) 2 W5 magazine (4x, max. 6x)
3 Stationary cameras
Notes:
●
3 tracks (location 1) can not be reached
due to the pin picker
●
Table position 3
●
Two W5 magazines (per PA)
●
1 dummy feeder
●
Gantry 1: pin picker left
Gantry 3 and 4: pin picker right
●
Two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X3 S [00119999-xx]
– 1x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
4x (max. 6x) Smart Pin Support magazine W5 [00119998-xx]
●
2x Spacer for SPS [03094012-xx]
●
1x Dummy feeder [00519876-xx] (for location1)
●
3x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
