3 Installation
3.3 Installing the W5 magazine (SIPLACE X3 S, X4 S)
106 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
3.3.3.1 DIP Switch S1 - Jumper Assignment
S1.1 S1.2 Magazine connected at
ON OFF NC connection 2
OFF ON NC connection 4
S1.4 S1.5 S1.6 Meaning
OFF OFF OFF Garage is switched off
ON OFF OFF Garage type W5
X X ON Reserved
NOTICE
Jumper S1.3
Jumper S1.3 is not used.
3.3.4 Assembling the W5 magazine
Fig.32: W5 magazine
► Fix the magazine into place with the
four fastening screws(1).
CAUTION!
Observe the installation position.
The calibration fiducials (2) need to be
on the right-hand side.
.
3 Installation
3.4 Installing the W5 magazine (SIPLACE X4i S)
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 107
3.4 Installing the W5 magazine (SIPLACE X4i S)
See also
2 2.4 "Possible Configurations/Required Equipment" [}82]
3.4.1 Preparatory Steps
► If required, dismantle the row 1 NC for easier access. Read the service manual for your
machine for more information, if required.
3.4.2 Fitting the Support Plate
If two W5 magazines are fitted at one location, the H-shaped NC ASP support plate for NC row 2
will be fitted between the first NC row and the nozzle station.
Parts required
Quantity Designation Item number
1 NC ASP support plate for row 2 03090087-xx
4 M4x10 03023262-xx
Installation
Fig.33: Short support plate
► Remove the short support plate before
installing the H-shaped support plate.
► Remove the screws at (1) and (2).
Fig.34: H-shaped support plate
► Use the four screws to fix the support
plate at (1) and (3).
The points marked (2) and (4) are reserved
for fastening the magazines.
► Fix the magazine for the first NC row to
(2) and that for NC row 2 to (4).
3 Installation
3.4 Installing the W5 magazine (SIPLACE X4i S)
108 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
3.4.3 Checking/Correcting the Vertical Distance
If you have not already done so, you need to check the height of the second NC row.
► For better access when measuring on the outer side, push the placement head inwards.
► Move the gantry so that the placement head is roughly on the planned NC position.
NOTICE
Avoid scratching the magnetic strip.
Make sure that the tip of the measuring scale does not touch the magnetic strip, as this
might scratch it!
Checking the height of the second NC row

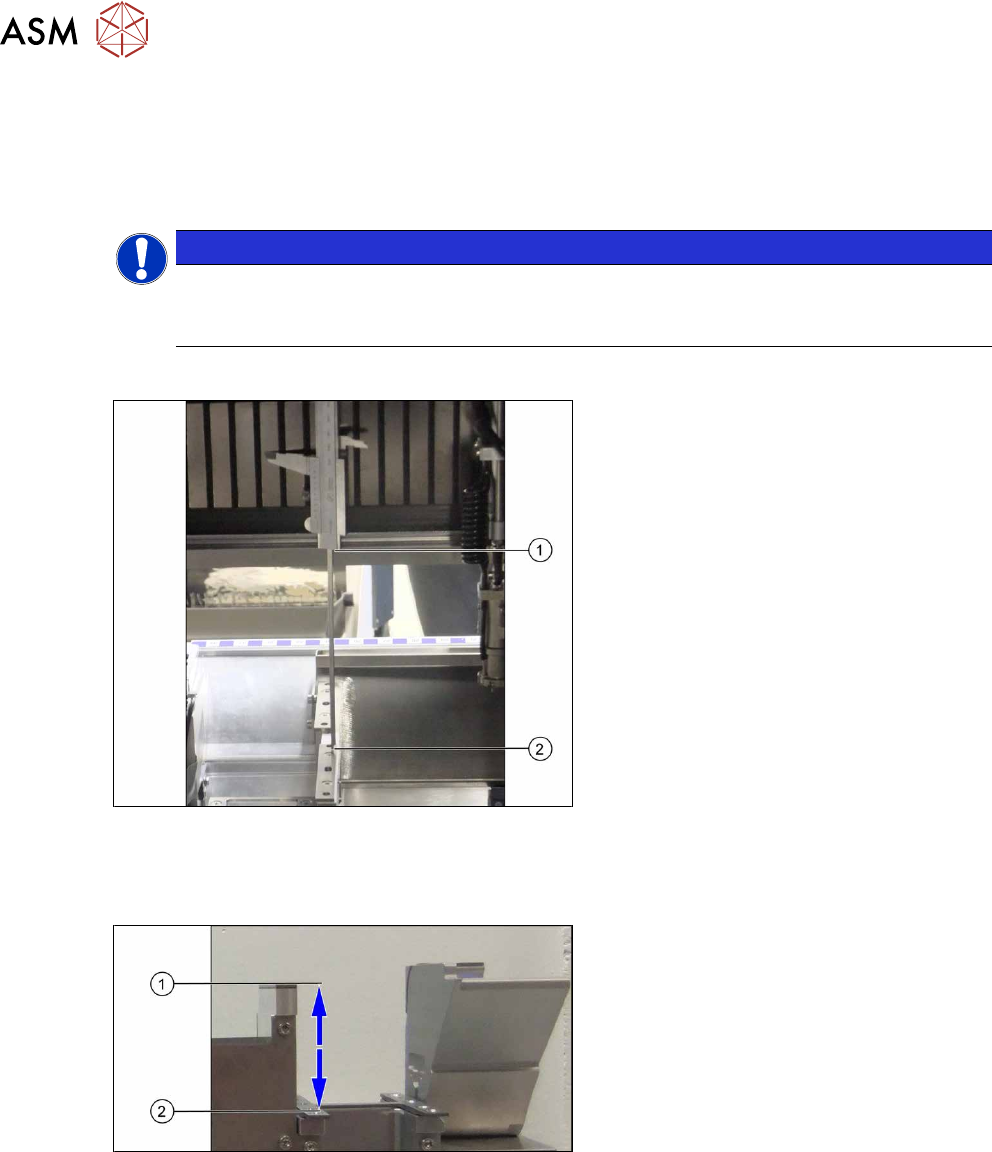

Fig.35: Height check (using the example of the holder for
second NC row)
► Check the height of the installed sup-
ports or holders for the second NC row.
► Position the measuring scale vertically
onto the top edge of the X axis lower
linear guide at (1) and measure the dis-
tance to the support or holder contact
surface (2).
Measured value: 150.0mm +/‑0.2mm
► If the distance is smaller, you will need
to remove the shim plates from under
the contact surfaces and repeat the
measurement.
Checking the height of the ASP support
Fig.36: Checking the height of the ASP support (using
example of X3 S/X4 S representing the measuring principle)
If the height of the second NC row is cor-
rectly set to 150.0mm +/- 0.2 mm, you will
need to check the distance between the NC
and the ASP support.
► Position the measuring scale vertically
onto the contact surface of the NC (1)
and measure down to the ASP support
(2).
Measured value: 77mm +/‑0.2mm
► If the distance is outside the tolerance
range, insert or remove shim plates as
required.
