2 Brief Description
2.4 Possible Configurations/Required Equipment
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 89

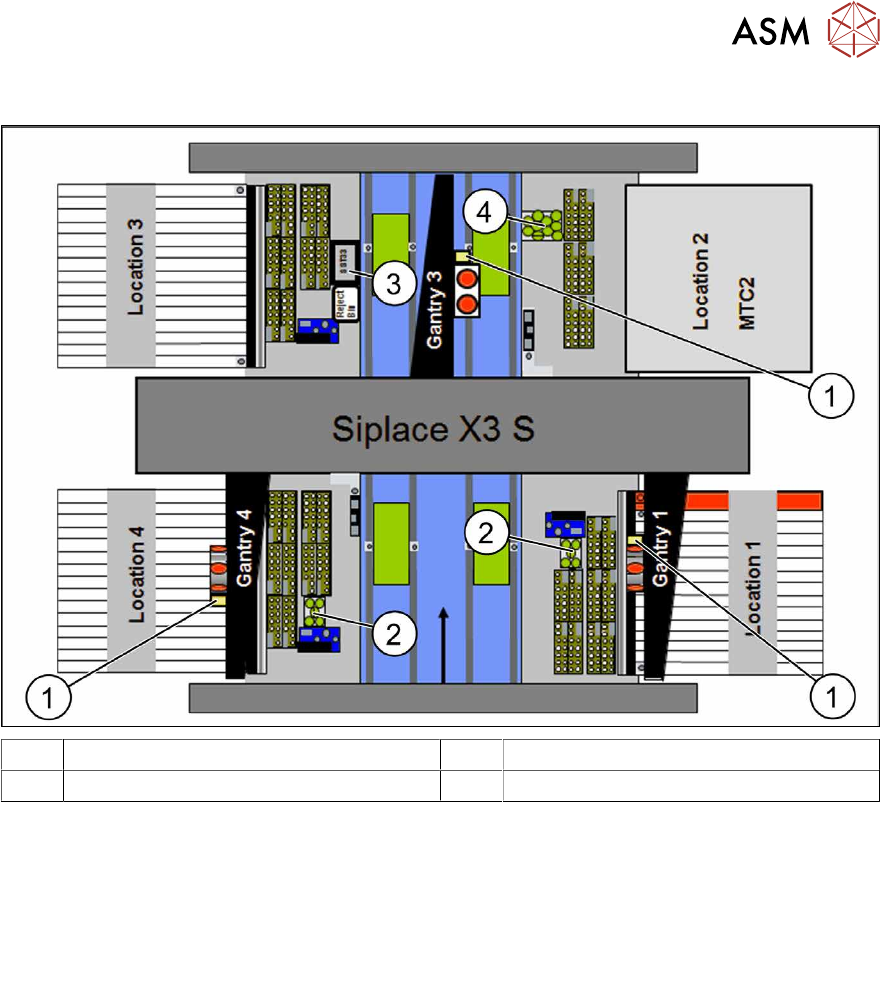

SIPLACE X3 S – configuration 3 with MTC
1 Pin picker (1x left, 2x right) 2 W5 magazine (2x)
3 Stationary cameras 4 Q10 magazine (1x)
Notes:
●
3 tracks (location 1) can not be reached
due to the pin picker
●
Table position 3
●
One W5 magazine (location 1 and4)
One Q10 magazine (location 2)
●
1 dummy feeder
●
Gantry 1: pin picker left
Gantry 3 and 4: pin picker right
●
Two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X3 S [00119999-xx]
– 1x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
2x Smart Pin Support magazine W5 [00119998-xx]
●
1x Smart Pin Support magazine Q10 assembly [03098557-xx]
– 1x Smart Pin Support magazine Q10 [03087508-xx]
– 1x Magazine holder Q10 [03088072-xx]
●
2x Spacer for SPS [03094012-xx]
●
1x Dummy feeder [00519876-xx] (for location1)
●
2x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
●
1x IC camera adaptor assembly SX4a [03099054-xx] (adapter for Q10 magazine holder)
2 Brief Description
2.4 Possible Configurations/Required Equipment
90 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019

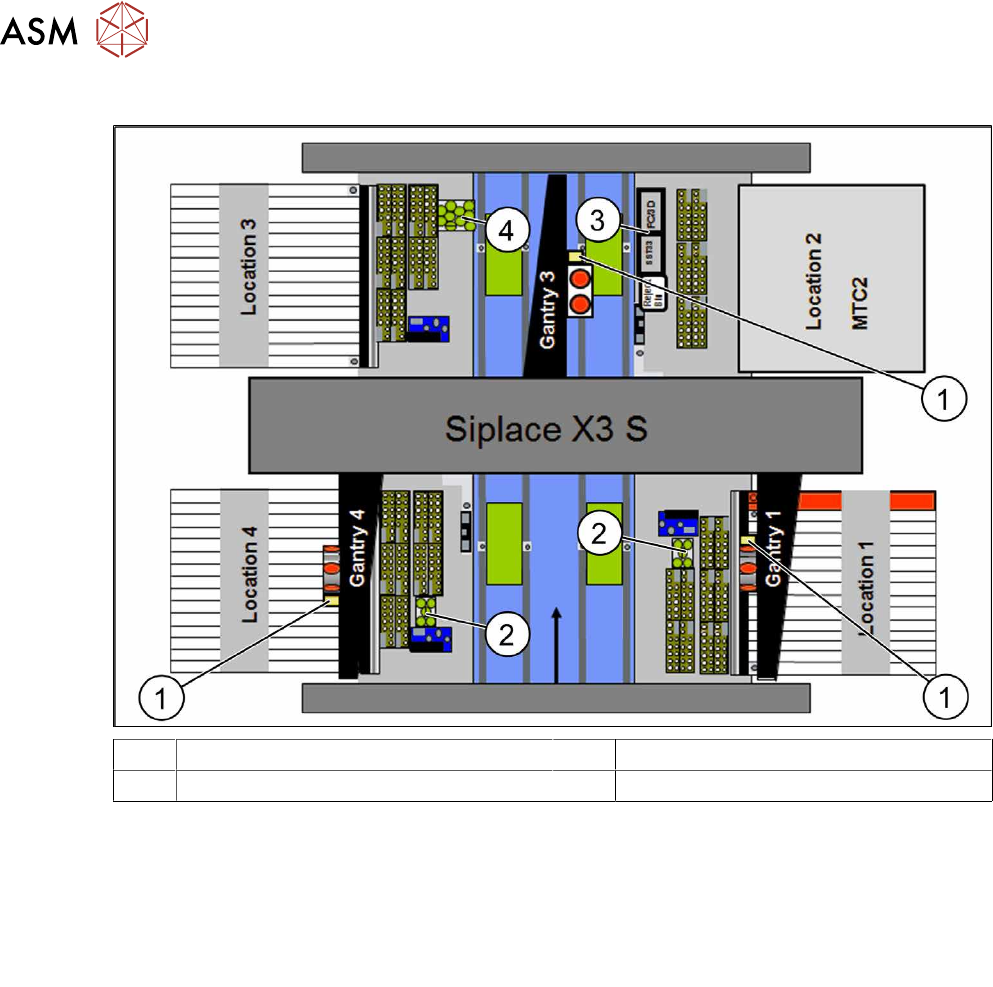

SIPLACE X3 S – configuration 4 with MTC
1 Pin picker (1x left, 2x right) 2 W5 magazine (2x)
3 Stationary cameras 4 Q10 magazine (1x)
Notes:
●
3 tracks (location 1) can not be reached
due to the pin picker
●
Table position 3
●
One W5 magazine (location 1 and4)
One Q10 magazine (location 3)
●
1 dummy feeder
●
Gantry 1: pin picker left
Gantry 3 and 4: pin picker right
●
Two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X3 S [00119999-xx]
– 1x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
2x Smart Pin Support magazine W5 [00119998-xx]
●
1x Smart Pin Support magazine Q10 assembly [03098557-xx]
– 1x Smart Pin Support magazine Q10 [03087508-xx]
– 1x Magazine holder Q10 [03088072-xx]
●
2x Spacer for SPS [03094012-xx]
●
1x Dummy feeder [00519876-xx] (for location1)
●
2x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
●
1x IC camera adaptor assembly SX4a [03099054-xx] (adapter for Q10 magazine holder)
2 Brief Description
2.5 Overview of Parts
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 91
2.4.4 Installation Positions of COT Insert and Manual Table (Table Positions)
Fig.7: Installation positions
The following installation positions apply to
the SIPLACE X-Series S:
1. Installation position 1
COT insert: X4i S
2. Installation position 2
COT insert, manual table: X4i S
3. Installation position 3
COT insert, manual table: X2 S, X3 S,
X4 S
2.5 Overview of Parts
You will need various parts, which differ according to the configuration and machine type used. For
more information, read section 2.4 "Possible Configurations/Required Equipment" [}82].
The list below includes all parts which might be needed:
Fig.8: Pin picker left and right
R = Pin picker right [03089904-xx]
L = Pin picker left [03089903-xx]
The two pin pickers differ only in the base
plate.
1. Compressed air valves
2. Pneumatic cylinder
3. Control board
4. Electrical cable and pneumatic hose
5. Base plate
6. Linear unit
7. Pin interface
 NOTICE!
The X series S pin pickers are fitted
with captive screws.
.
Fig.9: W5 magazine
W5 magazine for 5 pins
[00119998-xx]
