2 Brief Description
2.5 Overview of Parts
92 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019

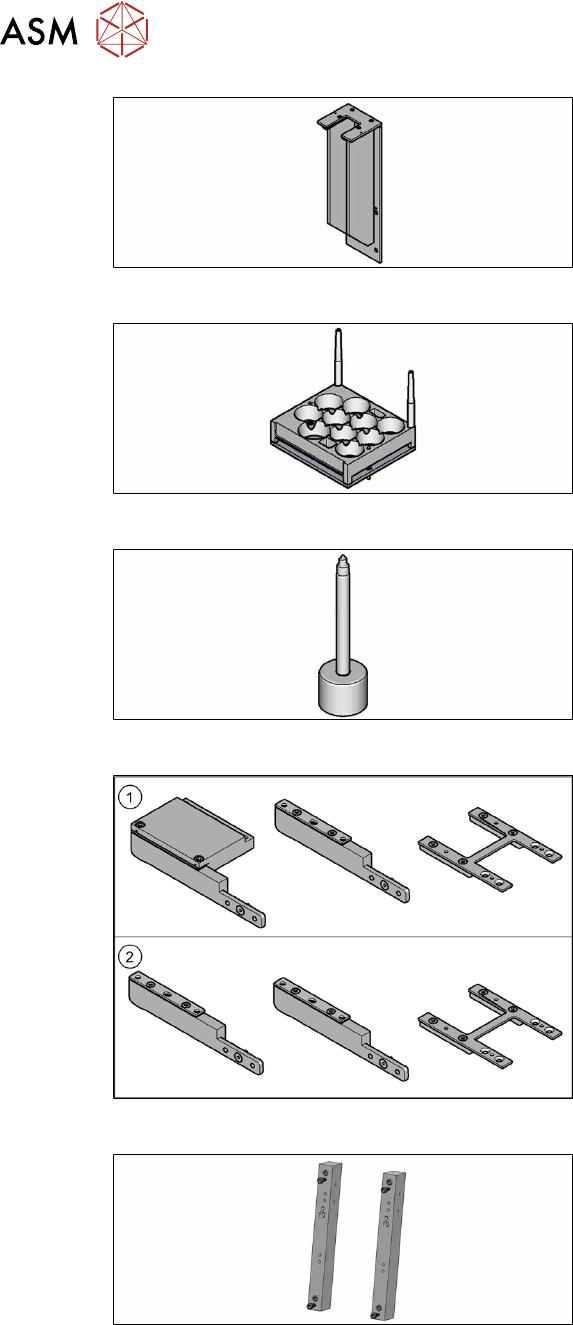

Fig.10: Holder for Q10 magazine
Holder for Q10 magazine assembly
[03088072-xx]
Fig.11: Q10 magazine
Q10 magazine for 10 pins
[03087508-xx]
Fig.12: Pin
Pin
[00119995-xx] (package with 5 pins)
Fig.13: Holder
Only for X4i S:
Optional: Holder for row 2 NC and second
W5 magazine
1. Location 1 and 3 [03097749-xx]
2. Location 2 and 4 [03090225-xx]
Fig.14: IC camera adapter
IC camera adaptor assembly SX4a (adapter
for magazine Q10 magazine)
[03099054-xx]
2 Brief Description
2.5 Overview of Parts
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 93

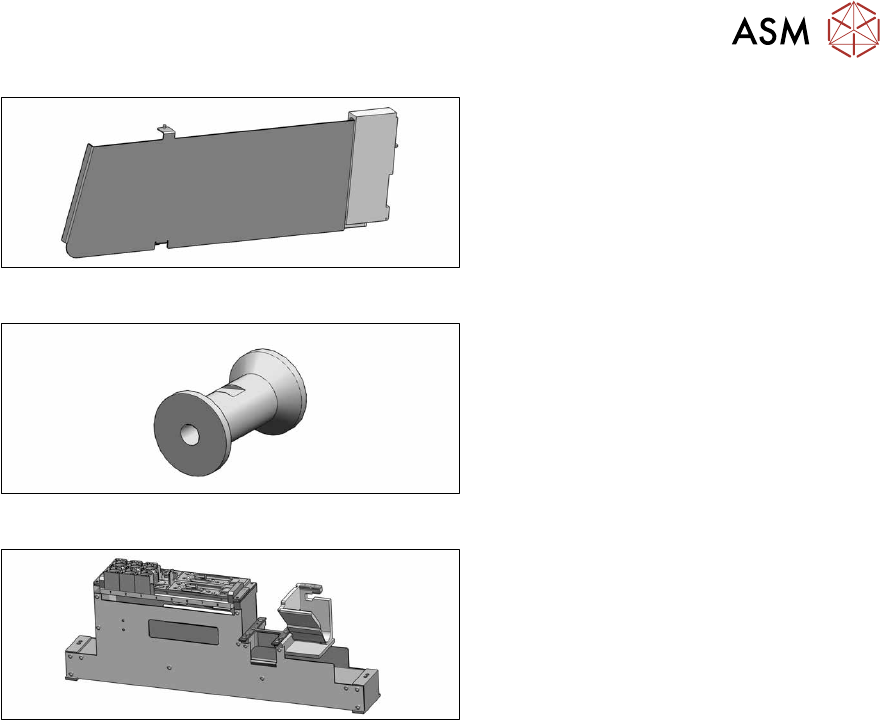

Fig.15: Dummy feeder
Dummy feeder with fiducial, 2 slots
[00519876-xx]
Fig.16: Spacer
Spacer (buffer) for SPS
[03094012-xx]
This spacer is only needed if the pin picker
is fitted towards the gantry root at gantry 1
or 3.
Fig.17: Basic assembly NC row 2
Only for X3 S, X4 S:
Basic assembly NC row 2/W5 magazine (for
NC row 2 and one or two W5 magazines)
[03089888-xx]
2 Brief Description
2.6 Note on the strain reliefs
94 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
2.6 Note on the strain reliefs
NOTICE
Strain reliefs
Older pin picker versions are equipped with insufficiently dimensioned strain reliefs.
► See also the technical information "Smart Pin Support: Replacing Defective Spiral
Cables on the Pin Picker (Update)" [DE: TI2013-09D04] [EN: TI2013-09E04].
Comparison

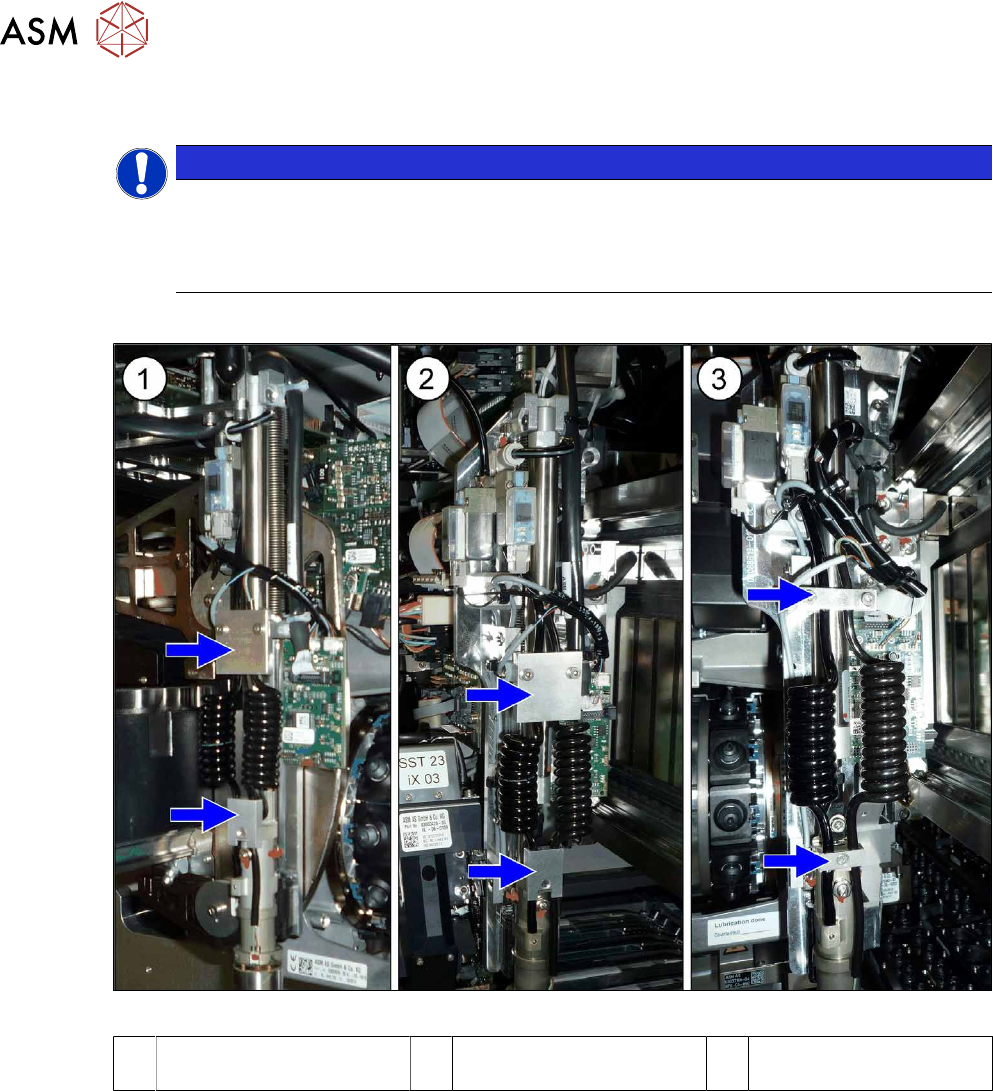

Fig.18: Comparison of the strain reliefs
1 Pin picker on the SX1/SX2
with new strain reliefs
2 Pin picker on the X-Series
with new strain reliefs
3 Pin picker on the X-Series
S with old strain reliefs
