1 Introduction
1.1 Safety Instructions
74 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
Fig.2: Cleaning wipe
CAUTION!
Cleaning wipe
Harmful: may cause lung damage if
swallowed.
Do not inhale vapor / aerosol.
Avoid contact with the skin. If swal-
lowed, do not induce vomiting. See
medical attention immediately and
show the packaging or label.
Wear latex gloves while using the
cleaning tissue.
.
CAUTION
Consumables
Observe the safety data sheets for consumable materials!
CAUTION
Cleaning and lubrication
► Always use ethanol for cleaning – do not use solvents.
► Isopropanol – IPA can be used as an alternative.
► NEVER use compressed air to clean units inside the placement machine or modules.
CAUTION
Danger of cutting on the IC and FC camera
There is a risk of cutting your fingers along the edges of the mirror.
► Wear laboratory gloves as protection and avoid touching the edges.
► The laboratory gloves are also required for effective cleaning (fingerprints!).
CAUTION
Only one person must be present at each component preparation station at any
given time.
This is to ensure the safety of the operator and the safety of the second person. Pulling in
the component trolley is a two-handed operation, so only one person can be reliably protec-
ted from the possible risks.
1 Introduction
1.2 Preparatory work...
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 75
1.1.8 Safety instructions on hazardous materials
CAUTION
Observe the safety data sheets
Observe the applicable safety data sheet, when handling hazardous materials (e. g. Loctite
241, ethanol).
1.2 Preparatory work...
Purpose and scope
Before performing any preventive maintenance work, conversion work or service work, a procedure
of locking and tagging must be followed and warning signs must be attached if not stated other-
wise. If you do not need to switch off the machine, this will be clearly stated.
The procedure, when followed correctly, eliminates the possibility of an employee being injured.
NOTICE
Additional safety measures
This procedure represents the minimum lock out and tag out requirements for the machine
during preventive maintenance work and service work. Any additional safeguards needed
to complete work safely can be specified by facilities supervision, the safety officer, the
safety committee and the health department.
Description
Whenever it becomes necessary to isolate, control and release energy, the following procedure is
to be followed.
► Notify all affected employees.
► Switch off the machine and all additional devices. Carry out all normal stopping procedures:
ð Press the STOP button.
ð Shut down the station computer.
ð Switch off the machine using the main switch.
► Isolate the machine from all its energy sources:
ð Shut off the compressed air supply.
ð Shut off the main power supply.
► Lock out the machine.
ð Attach a lock wherever possible.
Fig.3: Attaching a padlock to the main power switch
Secure main switch
► Secure the main switch with a padlock.
1 Introduction
1.2 Preparatory work...
76 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019

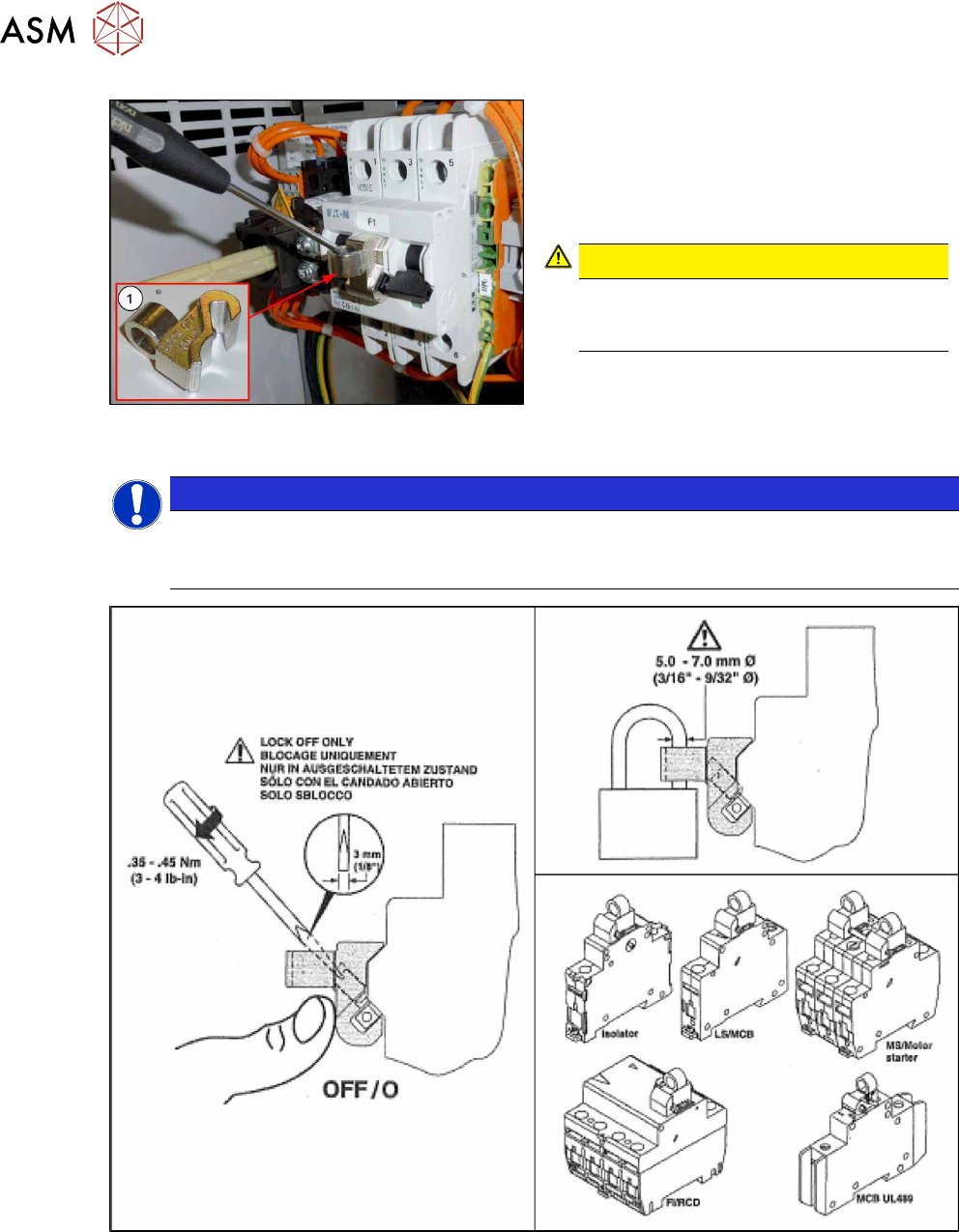

Fig.4: Attaching the lockout attachment Z-IS/SPE-1TE
[03123101-xx]
Secure circuit breaker
The lockout attachment can prevent the
machine from being switched on inadvertently.
► Switch off the machine.
► Set the circuit breaker to OFF.
CAUTION!
The lockout attachment may only be at-
tached when the machine is switched
off!
.
► Attach the lockout attachment(1) to the
circuit breaker.
► Secure the circuit breaker with a padlock.
NOTICE
Lockout attachment in the service box of your machine
On machines that are delivered from June 2016, the lockout attachment [03123101‑xx] is
located in the service box.
Fig.5: Lockout attachment Z-IS/SPE-1TE [03123101-xx]
► Alternatively, you can attach warning signs:
Any machine that can be locked must be locked.
However, there are situations where energy isolating devices cannot accommodate locks. In
these cases, the energy isolating devices must be tagged appropriately to warn employees
that the machine is currently de-energized for service purposes. The tag or label must be
fastened securely in a position visible from all sides and it may only be removed by the person
who attached it.
