4 Maintenance
4.1 Maintenance Tasks Smart Pin Support - Minor
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 117
4 Maintenance
CAUTION
Observe the maintenance instructions!
The following chapters are only excerpts from the maintenance manual.
► Refer to the maintenance manual for your machine if you need complete information
about maintenance for the Smart Pin Support.
The following cleaning tasks must be performed to maintain the Smart Pin Support:
●
Vacuuming the magazines
●
Cleaning the interface on the pin picker
●
Cleaning the pins
4.1 Maintenance Tasks Smart Pin Support - Minor
4.1.1 Maintenance Intervals
Maintenance tasks
Smart Pin Support
Duration
[min]
Each
week
Every 3
months
Every 6
months
Every
12
months
Vacuuming the magazines 1 X
4.1.2 Tools, Consumables, Spare and Wear Parts
●
Vacuum cleaner
4.1.3 Preparatory Steps
► Move all component trolleys out of the machine.
See also
2 1.2 "Preparatory work..." [}75]
4.1.4 Performing Maintenance Tasks
4.1.4.1 Vacuuming the Magazines
Fig.52: Vacuuming the magazines
► Vacuum all pin magazines (1).
4 Maintenance
4.2 Maintenance Tasks Smart Pin Support - Major
118 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
4.2 Maintenance Tasks Smart Pin Support - Major
4.2.1 Maintenance Intervals
Maintenance tasks
Smart Pin Support
Duration [min] Each
week
Every 3
months
Every 6
months
Every 12
months
Cleaning the interface 2 X
Cleaning the pins 3 (per 5pieces) X
4.2.2 Tools, Consumables, Spare and Wear Parts
●
Lint-free cloths [03082092-xx]
●
Cotton wool buds [00352931-xx]
●
SIPLACE cleansing tissue [00315253-xx]
●
Ethanol
Isopropanol – IPA can be used as an alternative.
4.2.3 Preparatory Steps
► Move all component trolleys out of the machine.
► Switch off the machine and secure it to prevent unauthorized reactivation. Observe the
instructions in section 1.2 "Preparatory work..." [}75].
4.2.4 Performing Maintenance Tasks

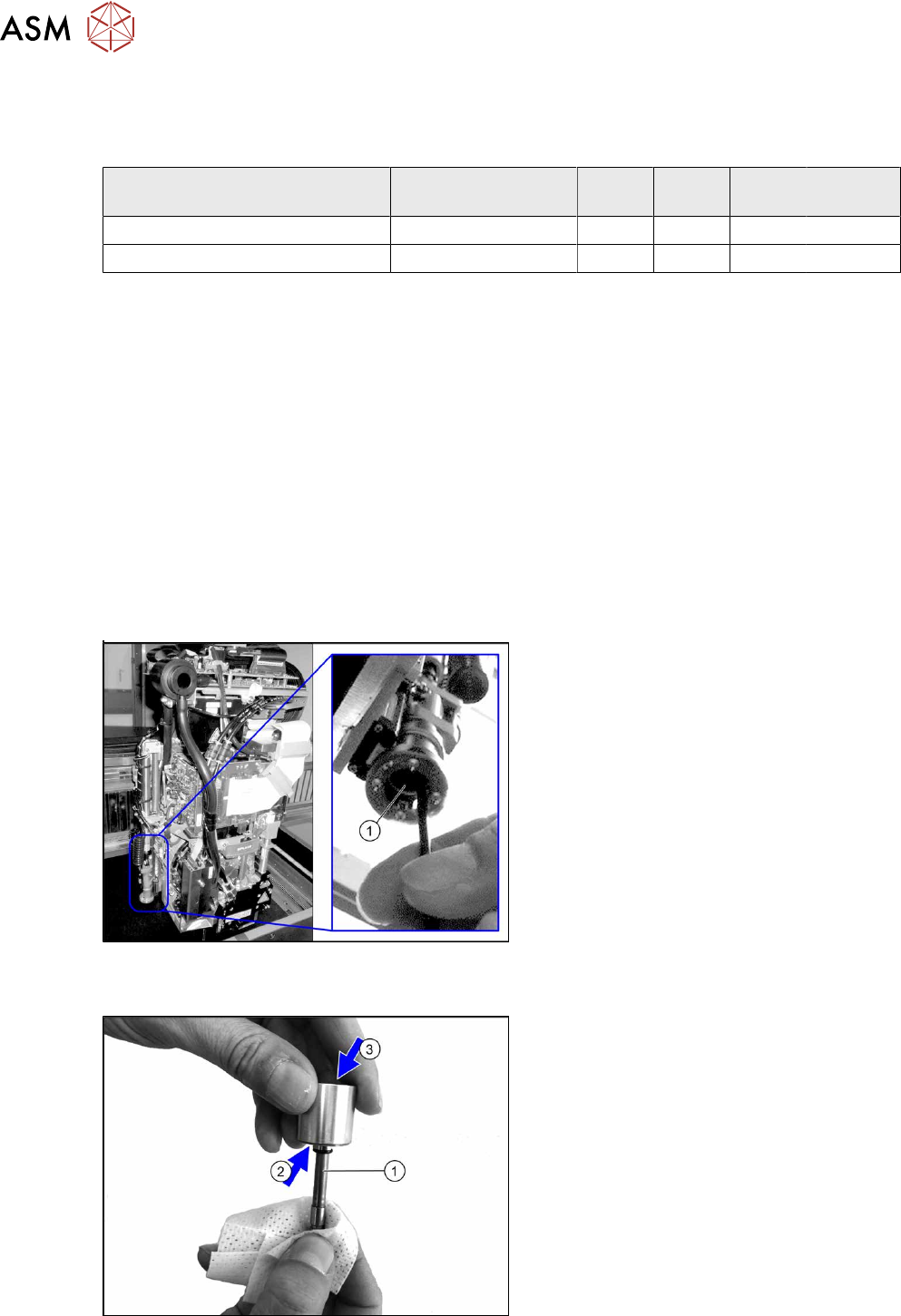

4.2.4.1 Clean the interface at the Pin-Picker
Fig.53: Cleaning the interface
► Move the gantry into Y direction until the
mechanical stop in order to have a good
access to the pin picker.
► Wet a cottonwool bud with ethanol.
► Clean the ball grid inside the interface (1)
using a cottonwool bud.
► Lead the cottonwool bud to the end of
the interface. Clean the centering plate
there.
► Repeat these steps for all pin pickers.
4.2.4.2 Cleaning the Pins
Fig.54: Cleaning the pins
► Clean the pin surface and the pin
grooves (1) using a SIPLACE cleaning
cloth.
► Remove redundant oil from the magnet
foot(3) and the contact area(2) at the
magnet foot with a dry lint-free cloth.
► Repeat these steps for all pins.
5 Annex
5.1 Magazine Recognition Circuit Diagram
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 119
5 Annex
5.1 Magazine Recognition Circuit Diagram

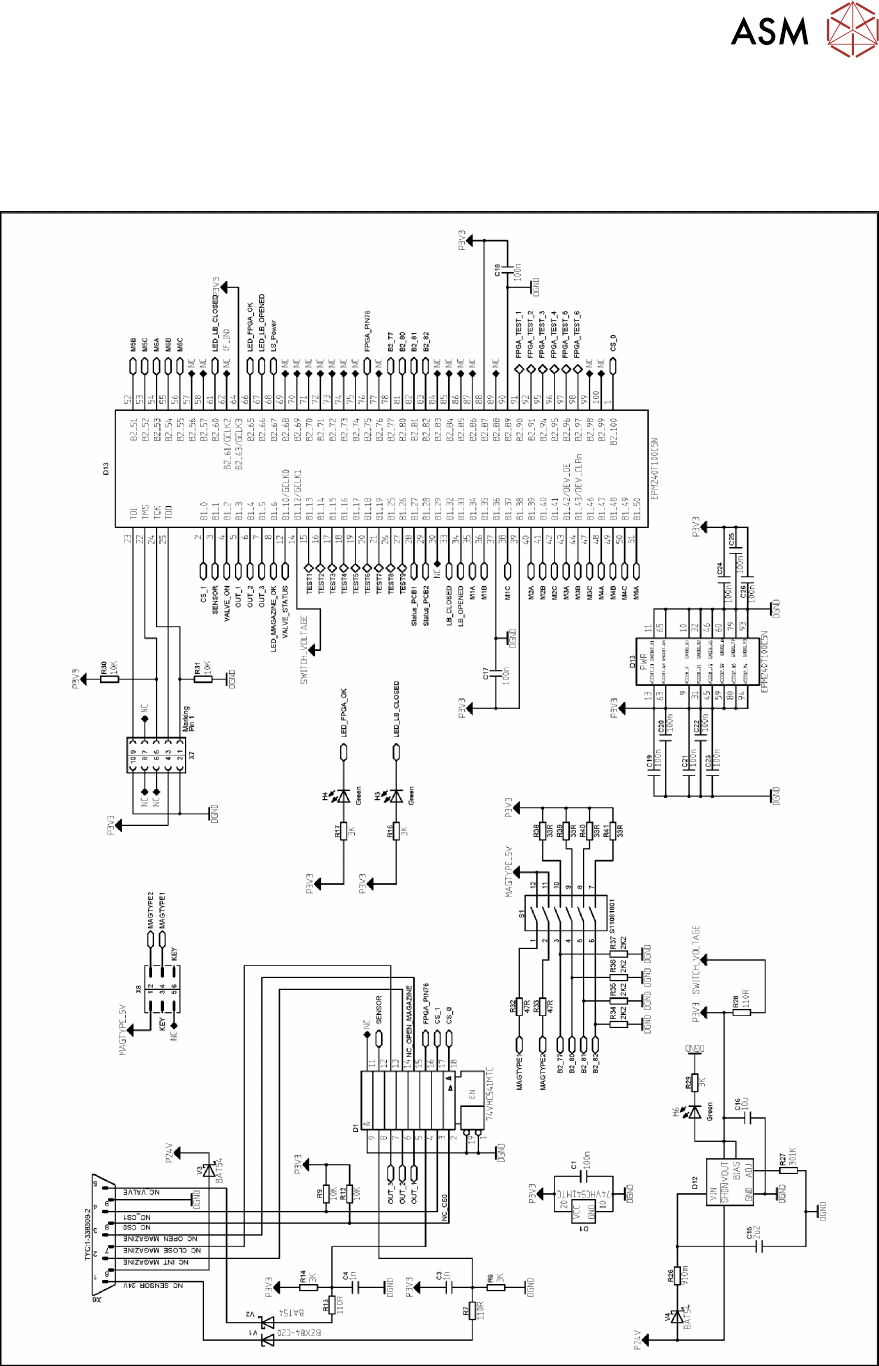

Fig.55: Magazine Recognition Circuit Diagram
