3 Installation
3.5 Installing the Q10 Magazine
114 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
Fig.45: Data cable for NC 2 and SPS
► Locate the required cables.
Four labeled data cables have been pre-
pared in the machine for the various config-
urations of NCs with and without Smart Pin
Support (SPS).
●
X1*a (NC 1)
●
X1*b (SPS (1) or NC 2 (without SPS))
●
X1*c (NC 2 with SPS)
●
X1*d (SPS2)

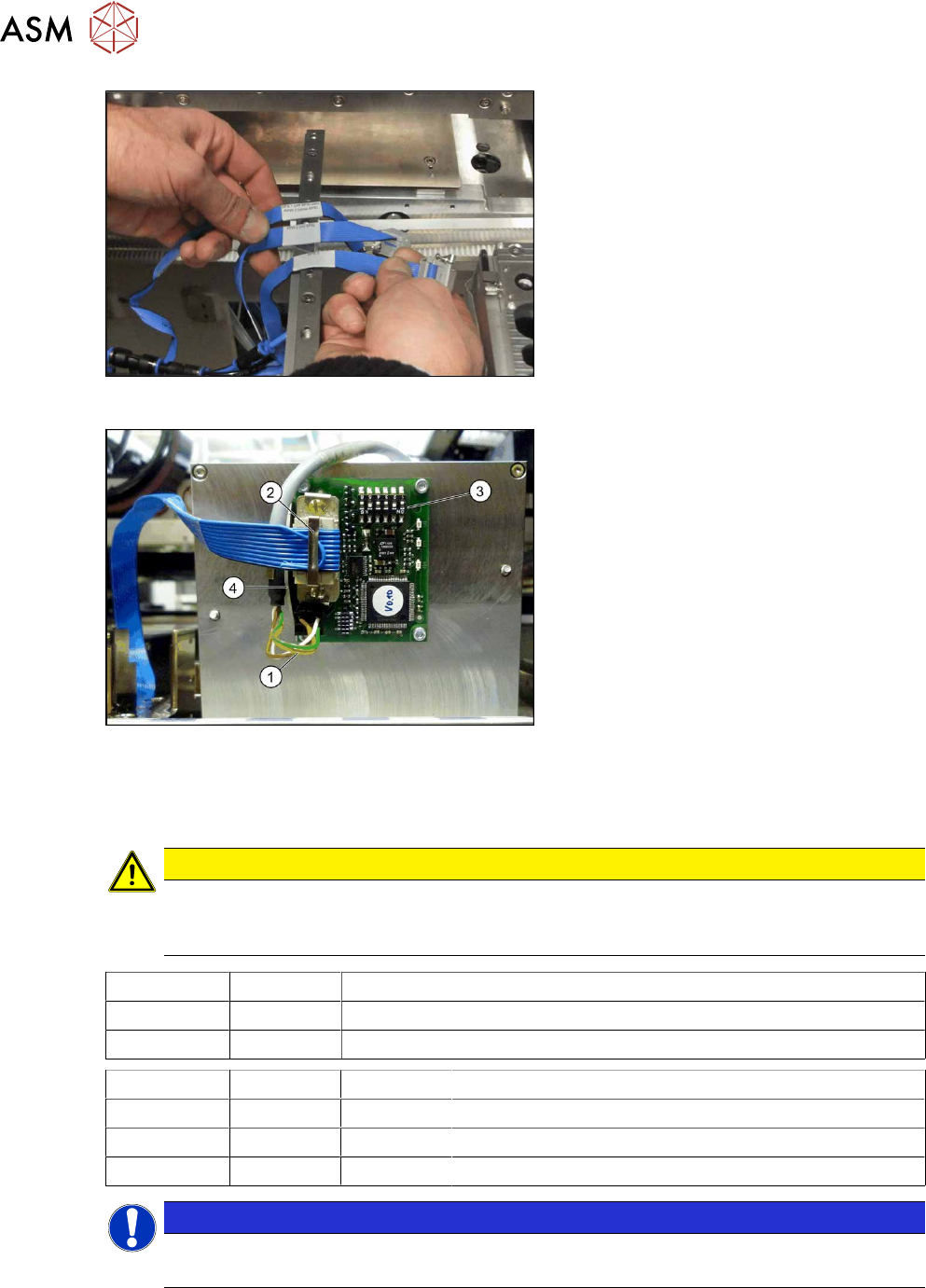

Fig.46: Board connection (using example of Q10)
► If not fitted, screw the board to the un-
derside of the magazine with four
M2.5x4 screws. The connection for the
flat ribbon cable should point towards
the angular metal bracket(4).
► Connect the power supply cable (1) to
connector X8 on the magazine board.
► Fit the strain relief for the voltage sup-
ply cable to the metal bracket and then
fix the cable into place.
► Connect the "NC SPS ribbon cable" (2)
to connector X6 on the board and
screw into place.
► Set the jumper (3) on the DIP
switchS1. (see below )
3.5.3.1 DIP Switch S1 - Jumper Assignment
CAUTION
Q10 magazine
If the Q10 magazine is fitted together with an MTC at location 2, the Q10 magazine is al-
ways configured manually via the software (autoconfig).
S1.1 S1.2 Magazine connected at
ON OFF NC connection 2
OFF ON NC connection 4
S1.4 S1.5 S1.6 Meaning
OFF OFF OFF Garage is switched off
OFF ON OFF Garage type Q10
X X ON Reserved
NOTICE
Jumper S1.3
Jumper S1.3 is not used.
3 Installation
3.6 Converting the nozzle station and the reject bin (SIPLACE X3 S, X4 S only)
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 115
3.5.4 Assembling the Q10 magazine

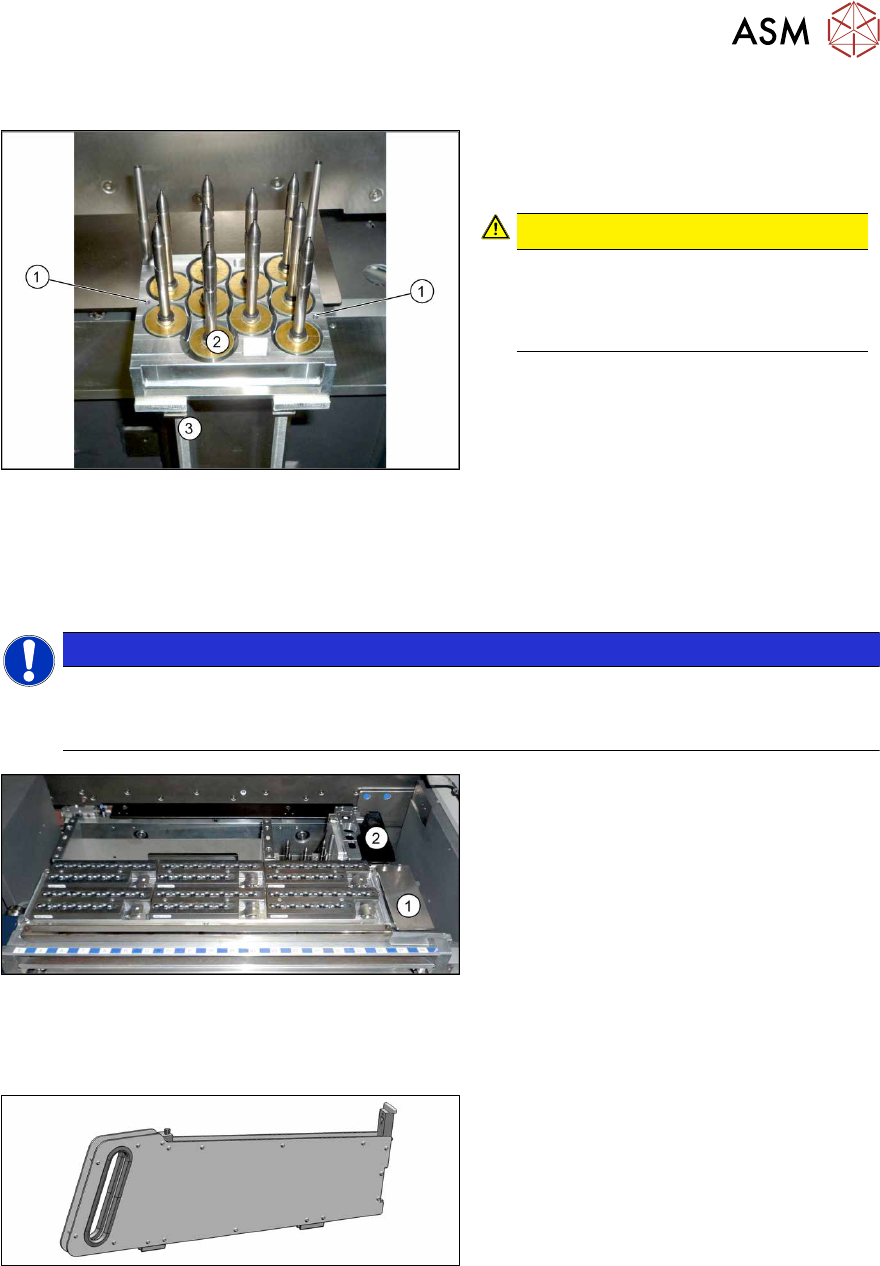

Fig.47: Q10 magazine
► Position the magazine on the holder (3)
and screw into place with the fastening
screws(1).
CAUTION!
Observe the installation position.
The calibration garage (2) must be on
the side turned away from the con-
veyor.
.
3.6 Converting the nozzle station and the reject bin (SIPLACE
X3 S, X4 S only)
NOTICE
Assembly instructions
► For details, also read the assembly instructions for "NC row 2 / NC before MTC2 –
SIPLACE X‑SeriesS" [DE+EN:00197369‑xx].
Fig.48: Nozzle station and reject bin
► If present, the nozzle station and the
corresponding reject bin must be
moved from(1), further inwards to(2).
► Fit a cover plate at the previous
place(1).
► Repeat these steps, as required, for all
locations.
3.7 Inserting the dummy feeder
Fig.49: Dummy feeder
► SIPLACE X4S, X4iS: At locations 1
and3, fit the "COT-X filler piece with
fiducial 2slots" [00519876‑xx] to
track39.
This occupies tracks 38 and39.
► SIPLACE X3S: At locations 1, fit the
"COT-X filler piece with fiducial
2slots" [00519876‑xx] to track39.
This occupies tracks 38 and39.
3 Installation
3.8 Final work
116 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019
3.8 Final work
► Refit the waste container.
► Insert the pins into the SPS magazines.
► Move the component trolley into the machine.
► Switch the machine on.

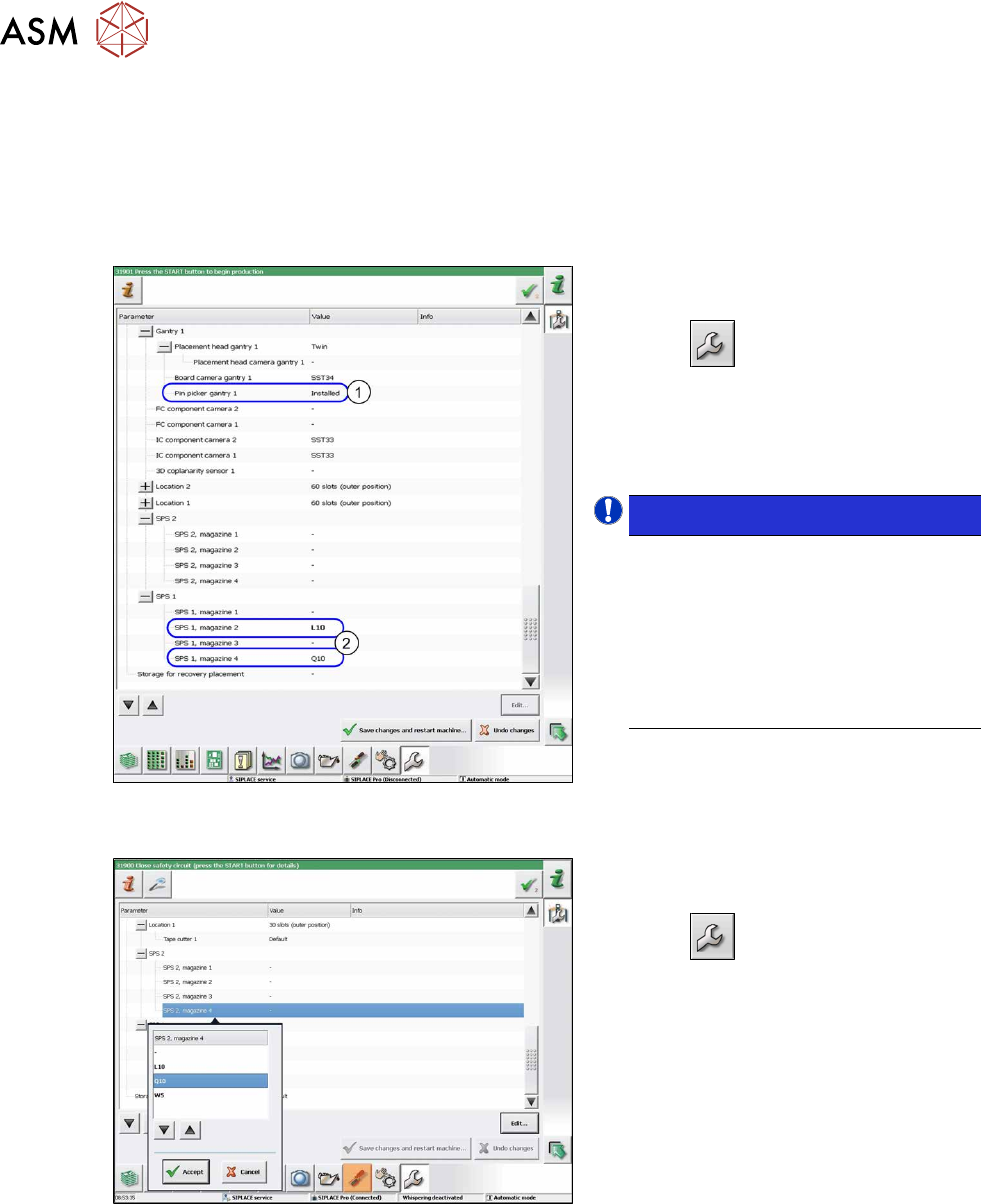

Fig.50: Configuration of Smart Pin Support (using example
of SX2)
For automatic configuration with connected
"fiducial recognition board":
► Select
.
► Select Machine Configuration.
► Check whether the pin picker(1) and
the magazines (2) appear in the station
software.
NOTICE!
If the pin picker or the magazine are
not recognized in the software, check
all connections and the DIP switch set-
tings.
If you have installed a Q10 magazine
together with an MTC at location 2,
you will need to configure this manu-
ally in the software. (see below)
.
Fig.51: Configuration of Smart Pin Support
For manual configuration without "fiducial re-
cognition board":
► Select
.
► Select Machine Configuration.
Perform the following steps in sequence for
all SPS magazines:
► Select the magazine.
► Click on Edit....
► Enter the magazine type and select Ac-
cept.
Calibration
► Calibrate the Smart Pin Support. For more information, read section 5.3.1 "Performing Cali-
bration" [}121].
The installation is now complete.
