2 Brief Description
2.4 Possible Configurations/Required Equipment
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 83
SIPLACE X4i S – configuration 2
1 Pin picker left (4x) 2 W5 magazine (4x)
Notes:
●
3 tracks (locations 1 and 3) can not be
reached due to the pin picker
●
Table position 2
●
One/two W5 magazines (per location)
●
2 dummy feeders
●
Gantry 1 to 4: pin picker left
●
One/two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X4i S [00119994-xx]
– 4x Pin picker left [03089903-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
If required, additionally (for 8 W5 magazines): 4x Smart Pin Support set 5 pins [00119995-xx]
(=20pins)
●
4x or 8x Smart Pin Support magazine W5 [00119998-xx]
●
4x Spacer for SPS [03094012-xx]
●
2x Dummy feeder [00519876-xx] (for location 1 and3)
●
2x Optional support ASP Speed Flex, row 2, location 1/3 [03097749-xx] (holder for NC row 2
and second W5 magazine, location1 and 3)
●
2x Optional support ASP Speed Flex, row 2, location 2/4 [03090225-xx] (holder for NC row 2
and second W5 magazine, location2 and 4)
2 Brief Description
2.4 Possible Configurations/Required Equipment
84 Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019

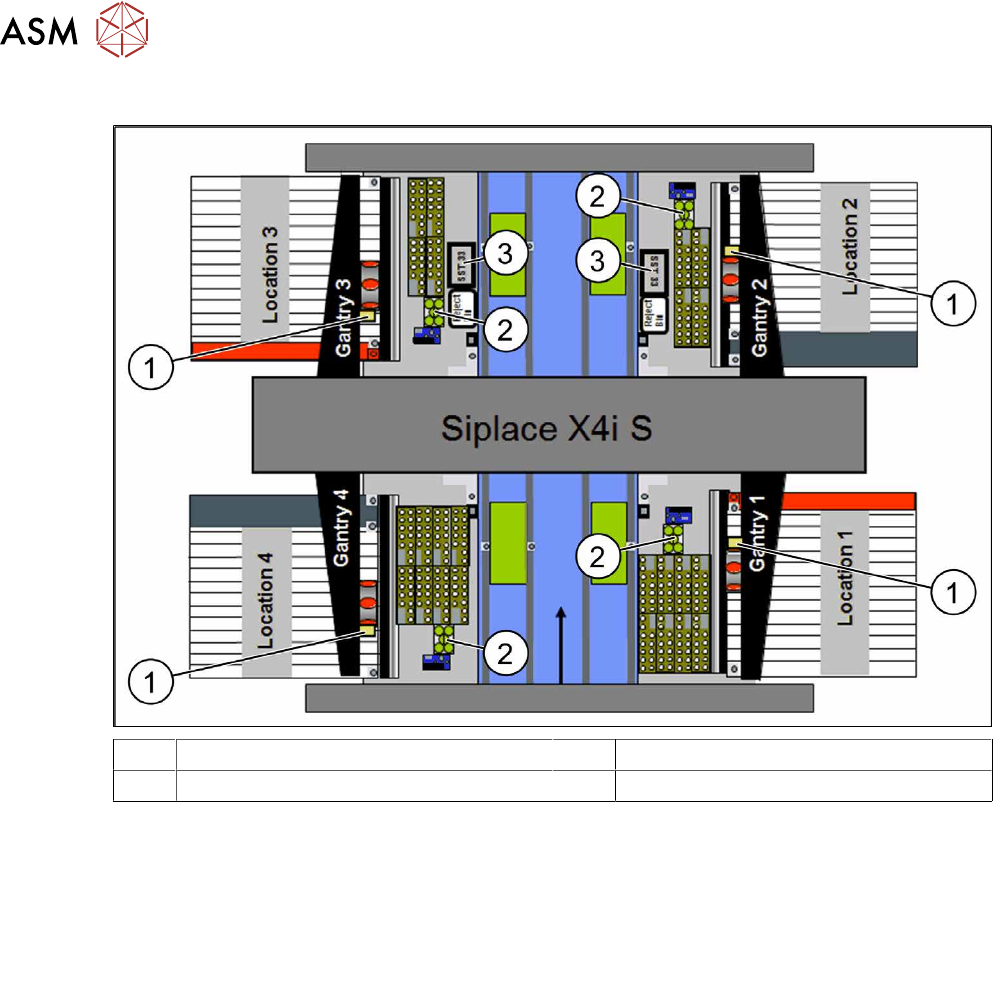

SIPLACE X4i S – configuration 3 – with stationary cameras
1 Pin picker left (4x) 2 W5 magazine (4x)
3 Stationary cameras
Notes:
●
3 tracks (locations 1 and 3) can not be
reached due to the pin picker
●
Table position 2
●
Only one W5 magazine (per location) due
to the stationary cameras in PA2.
●
2 dummy feeders
●
Gantry 1 to 4: pin picker left
●
Two NC rows in PA1
One NC row in PA2
Parts required:
●
1x Smart Pin Support - pin picker – package – X4i S [00119994-xx]
– 4x Pin picker left [03089903-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
4x Smart Pin Support magazine W5 [00119998-xx]
●
4x Spacer for SPS [03094012-xx]
●
2x Dummy feeder [00519876-xx] (for location 1 and3)
●
1x Optional support ASP Speed Flex, row 2, location 1/3 [03097749-xx] (holder for NC row 2
and second W5 magazine, location1)
●
1x Optional support ASP Speed Flex, row 2, location 2/4 [03090225-xx] (holder for NC row 2
and second W5 magazine, location1)
2 Brief Description
2.4 Possible Configurations/Required Equipment
Assembly Instructions / Montageanleitung SIPLACE X-Series S Smart Pin Support 05/2019 85
2.4.2 Possible configurations/required equipment - SIPLACE X4i S
NOTICE
3D sensor, IC camera
A 3D sensor can only be installed at location 2.
If there is a 3D sensor at location 2, you also need to install an IC camera there. In this
case, you will not be able to install a pin magazine at location 2.

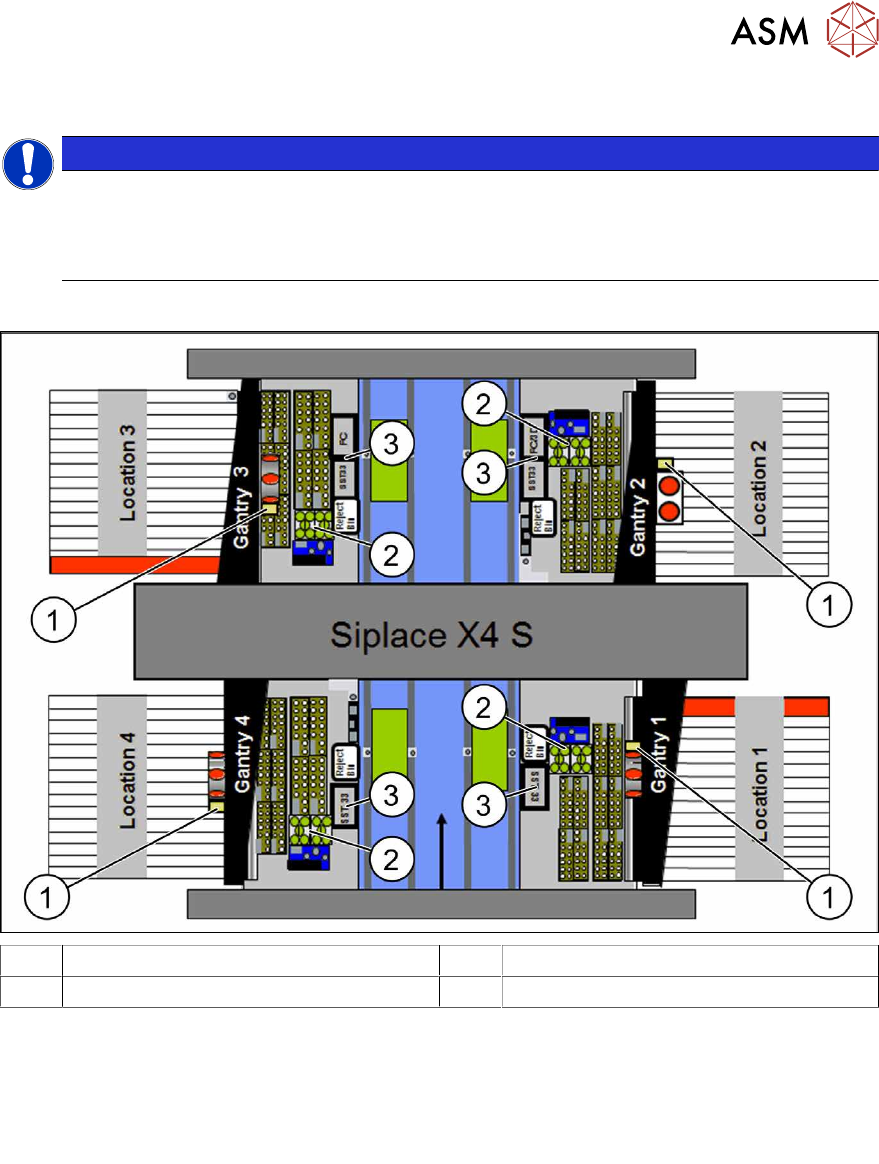

SIPLACE X4 S – configuration 1
1 Pin picker (2x left, 2x right) 2 W5 magazine (4x)
3 Stationary cameras
Notes:
●
3 tracks (locations 1 and 3) can not be
reached due to the pin picker
●
Table position 3
●
One/two W5 magazines (per location)
●
2 dummy feeders
●
Gantry 1 and 3: pin picker left
Gantry 2 and 4: pin picker right
●
One/two NC rows
Parts required:
●
1x Smart Pin Support - pin picker – package – X4 S [00119993-xx]
– 2x Pin picker left [03089903-xx]
– 2x Pin picker right [03089904-xx]
– 4x Smart Pin Support set 5 pins [00119995-xx] (=20pins)
●
If required, additionally (for 8 W5 magazines): 4x Smart Pin Support set 5 pins [00119995-xx]
(=20pins)
●
4x or 8x Smart Pin Support magazine W5 [00119998-xx]
●
4x Spacer for SPS [03094012-xx]
●
2x Dummy feeder [00519876-xx] (for location 1 and3)
●
4x Basic assembly NC row 2/W5 magazine [03089888-xx] (for NC row 2 and one or two W5
magazines)
