1 Installation 1-6 ACTION: ① Locate the unit to th e specified place. ② Remove the followings: the b olt that locks the head in the X-axis beam and the metal fitting that prevent X-axis beam movement to the Y direction. …
1 Installation
1-5
Installing Unit
Do not touch terminals of electric components when the power is on to prevent electric shock and unit
damage.
Make sure to ground the unit to prevent electric shock.
Note on Installation
It is normal that the adjust foot can be slightly inclined (within 2-degree range).
Do not tighten the bolt forcedly trying to fix the foot.
When you move and/or install the unit, be careful not to apply excessive force
on the adjust foot. This may cause the screw of the adjust foot to break.
When placing the unit on the floor, be sure that the unit is kept horizontal.
Warning
Warning
2°
If excessive force is
applied, the screw may
break at this point.
Mounting Screw
Nut
Adjust foot
1 Installation
1-6
ACTION:
① Locate the unit to the specified place.
② Remove the followings: the bolt that locks the head in the X-axis beam and the metal fitting that
prevent X-axis beam movement to the Y direction. After removed the bolts and fittings, confirm that
the head can move to the X direction and the X-axis beam can move to the Y direction manually.
Note; Please keep the bolts and metal fittings, they will be necessary if moving the machine.

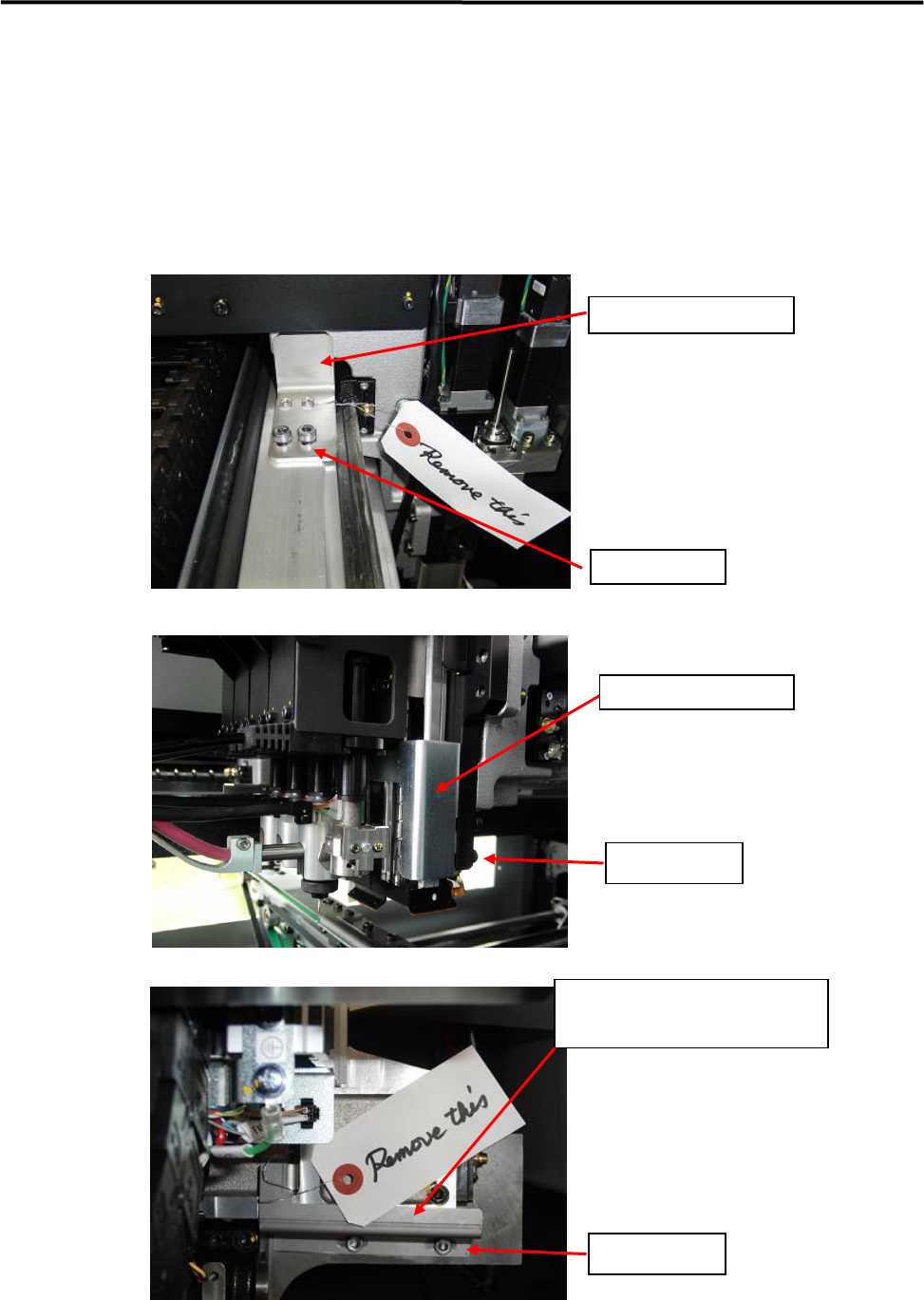

X Axis Fixing Bracket
Fixing Screw
Head Fixing Bracket
Y Axis Fixing Bracket
(two brackets at both sides)
Fixing Screws
Fixing Screws
1 Installation
1-7
③ When the unit is installed stand alone, turn the adjust feet so that the PCB transfer height is the same as
the conveyor height (900±20mm (see Note)) of the reference equipment.
When the unit is connected to the Pre-process on production line, adjust the PCB transfer height to the
conveyor rail height of the Pre-process.
)
Production Line
In the case of SMEMA interface spec, the height must be 950±20mm.
900± 20mm
or
950± 20mm
(SMEMA interface spec)
NOTE: The height must be 890 to 920mm in the case of CFB wagon spec.
NOTE: The adjust feet must be turned using a M30 single-head wrench (nominal: 46mm).
④ Place a leveler on the base of the unit. Set the position to the conveyor of the Pre-process finely until
the unit is leveled.
) Supplementary Explanation for Installation
⑤ After the unit is positioned, make sure that a board runs smoothly between upstream and downstream
conveyor.
⑥ Place a leveler on the X-axis beam and make a fine adjustment so that the difference in indicator when
the X-axis beam moves forward and backward will be within 1 division. ( To prevent a X-axis beam
distortion. )
Ll
Levers
