3 Mechanical Section

3-9

Insert O-RING

LE6-M5FL4-000 / O-RING (VITON)

Insert SCREW SHAFT to SCREW POMP and then

close the cap to complete this operation.

* Pay attention to the position of V CUT on LOWER

BERAING and secure that SCREW SHFT has been

inserted completely.

3 Mechanical Section

3-10

Assembling STD DP ROTATION NOZ.

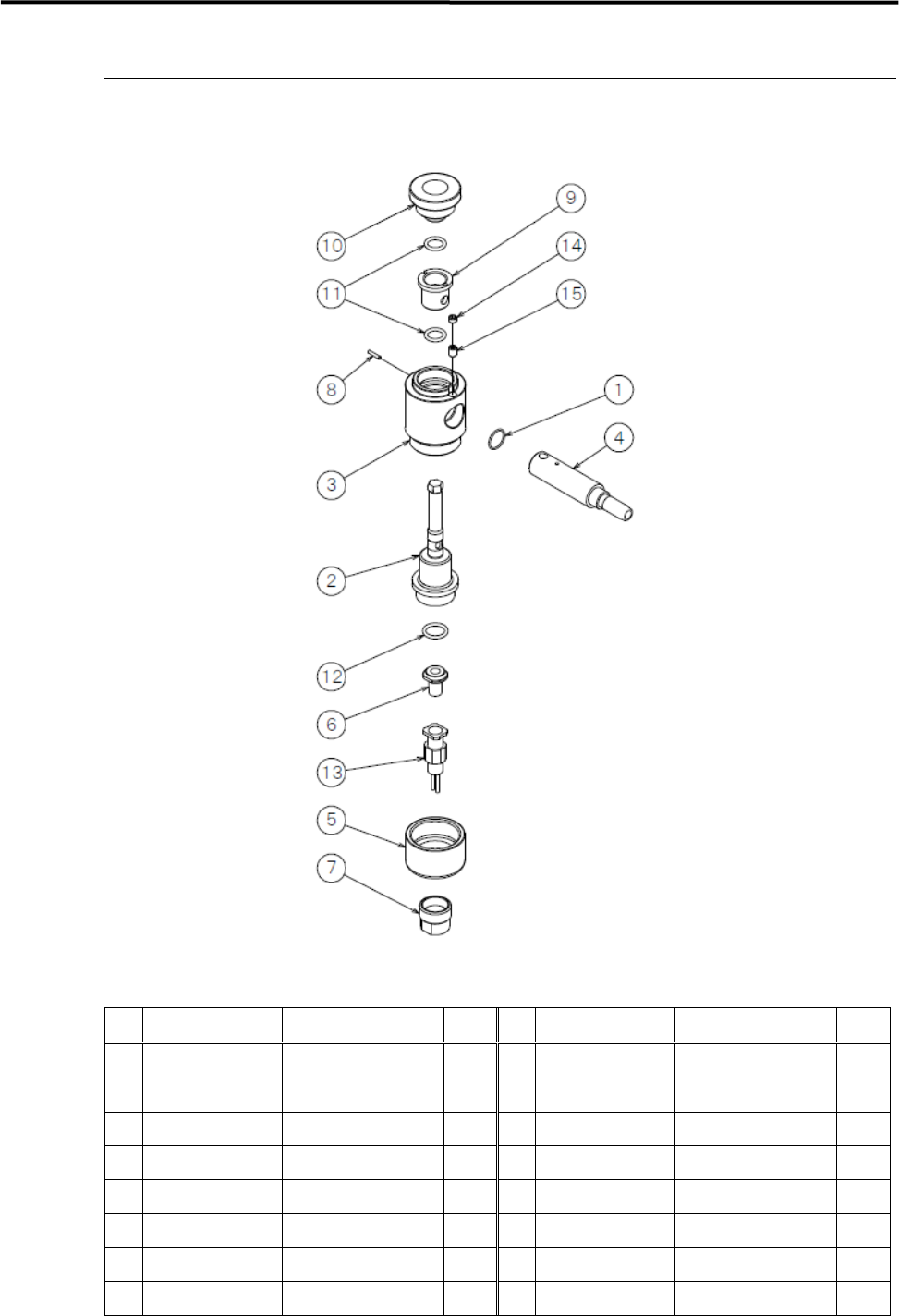

The below is an assembly drawing and part list of STD DP ROTATION NOZ.

Part List

No. PART NO. PART NAME Q’TY No. PART NO. PART NAME Q’TY

1 LE6-M5FBV-00x O-RING 1 9 LE7-M5F18-00x COLLAR 1

2 LE7-M5F11-00x HOLDER,NOZZLE 1 10 LE7-M5F19-00x CAP,LOCK 1

3 LE7-M5F12-00x BODY,MAIN 1 11 LE7-M5F1A-00x O-RING 2

4 LE7-M5F13-00x PIPE,FITTING 1 12 LE7-M5F1C-00x O-RING 1

5 LE7-M5F14-00x CAP,LOCK 1 13 LE8-M5F70-xxx TWIN NOZZLE SEL 1

6 LE7-M5F15-00x ADAPTER 1 14 LG0-M71GH-10x SCREW,SET 1

7 LE7-M5F16-00x STOPPER,TWIN 1 15 LG0-M71GK-30x SCREW,SET 1

8 LE7-M5F17-00x PIN,PARALLEL 1

3 Mechanical Section

3-11

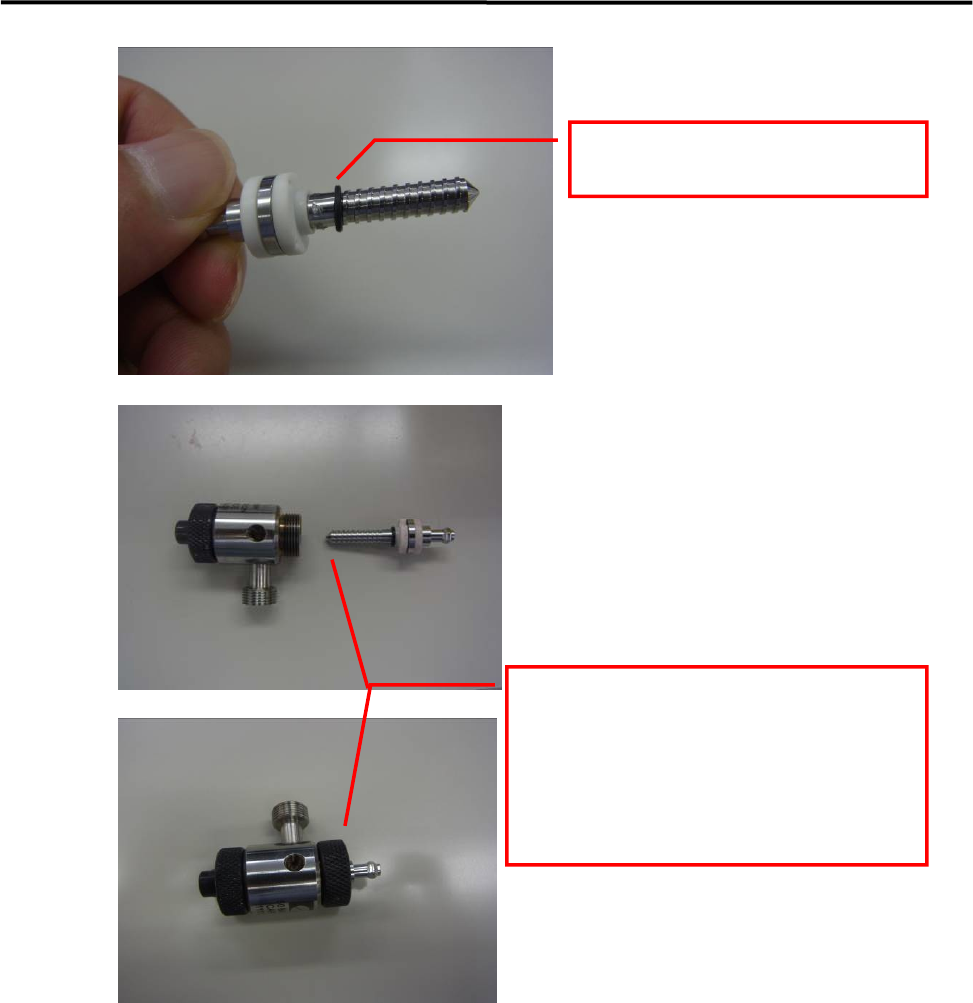

This is the procedure to install O-RING on Rotating Dispense Nozzle, Please carry out installation

following the below procedure.

Set O-RING on COLLAR

＊Recommend replacing O-RING once a month

COLLR (LE7-M5F10-00x)

O-RING(LE7-M5F1A-00x)

Set O-RING on COLLAR (opposite side)

＊Recommend replacing O-RING once a month

COLLR (LE7-M5F10-00x)

O-RING(LE7-M5F1A-00x)

Set COLLAR on BODY,MAIN

Apply silicon grease to inner side of O-RING by

a cotton swab

BODY,MAIN (LE7-M5F12-00x)

SILICON GREASE (LG1-M89AB-00x)

Set COLLAR on BODY,MAIN

Adjust the positioning slit to the positioning pin

１
