3 Mechanical Section
3-6
② Insert ADAPTER to BRACET NOZZLE
③ Set NOZZLE on ADAPTOR
④ Assemble LOCK ADAPTER on BRACKET NOZZLE
Reference; Dispensing Nozzle List
PART NAME PART NAME
LG7-M740S-10x NOZZLE, SINGLE (15G)
LG7-M740S-30x NOZZLE, SINGLE (19G)
LG7-M740S-50x NOZZLE, SINGLE (22G)
Lg7-M740S-70x NOZZLE, SINGLE (25G)
Make sure that O-RING has been put on
ADAPTOR before inserting ADAPTOR.
Tighten LOCK ADAPTER just enough
not to be loosened.
3 Mechanical Section
3-7
Assembling SCREW DP HEAD
The below is an assembly drawing and part list of SCREW HEAD.
Part List
No. PART NO. PART NAME Q’TY No. PART NO. PART NAME
Q’T
Y
1 LE6-M5F1E-00x O-RING 1 10 LE6-M5FL3-00x FACE SEAL 2
2 LE6-M5F59-02x PIPE, FITTING 1 11 LE6-M5FL4-00x O-RING (VITON) 1
3 LE6-M5F5C-01x NAT, CAP 1 12 LE6-M5FM0-00x CAP, BOTTOM 1
4 LE6-M5F5D-00x PIN, PARALLEL 1 13 LE6-M5FM1-00x ADAPTER PLATE 1
5 LE6-M5FJ0-00x SCREW 16-1-01 1 14 LE6-M5FN0-xxx SINGLE NOZZLE SEL 1
6 LE6-M5FK0-00x CARTRIDGE BODY 1 15 LE7-M5F61-00x ADAPTER 1
7 LE6-M5FK1-00x CAP, TOP 1 16 LE7-M5F62-00x CAP. LOCK 1
8 LE6-M5FL0-00x UPPER BEARING 1 17 LE7-M5F63-xxx TWIN NOZZLE SEL.
9 LE6-MFL1-00x LOWER BEARING 1
3 Mechanical Section
3-8

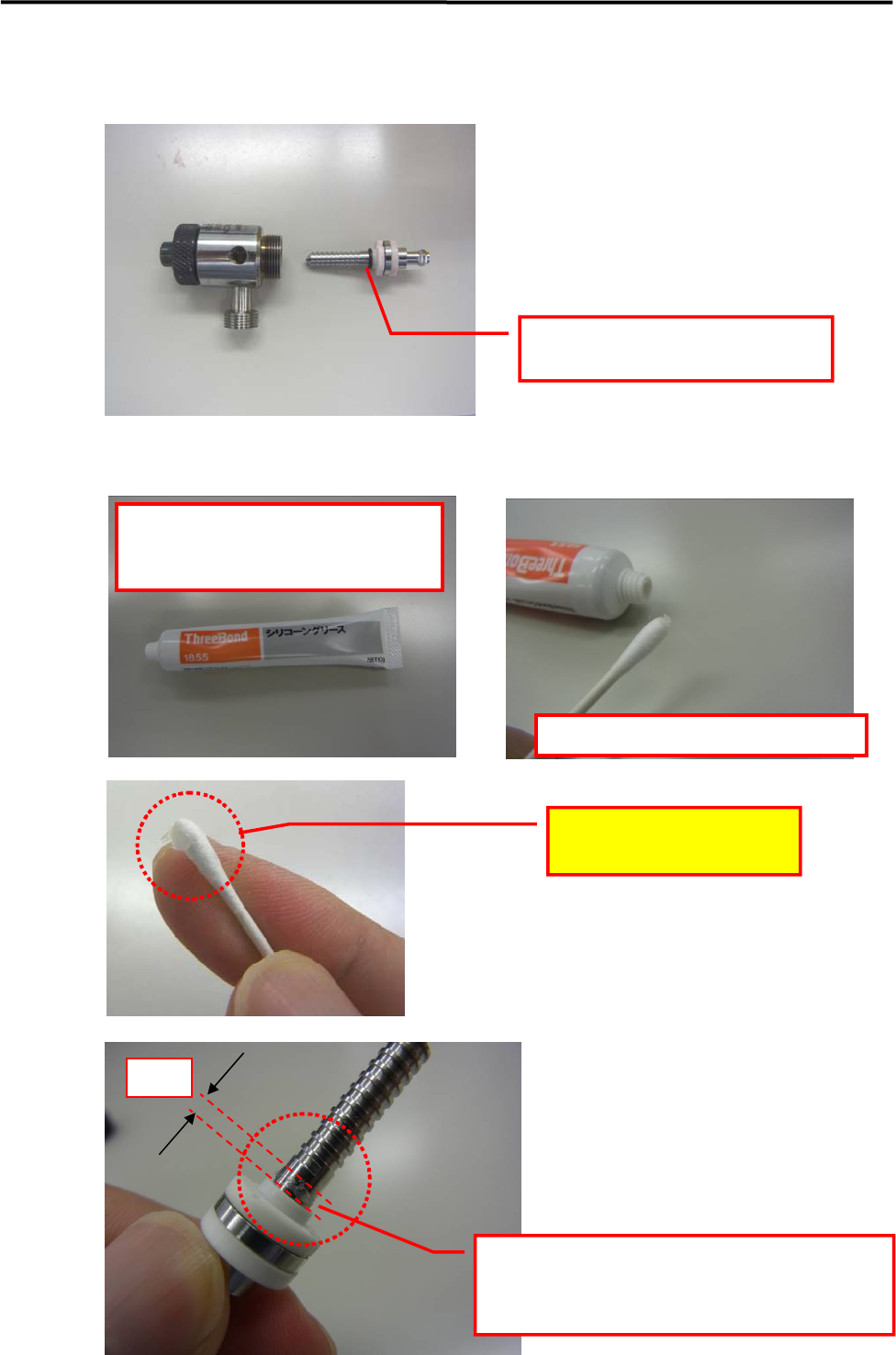

Installing O-RING on SCREW POMP
Install O-RING on SCREW POMP following the below procedure
① Apply SILICON GREASE
O-RING
LE6-M5FL4-000 / O-RING (VITON)
Use an accessory SILICON GREASE
LG0-M89AB-000 / GREASE SILICON
※Do not use an
y
other silicon
g
rease.
Put small amount of grease on a cotton swab
Fingernail-sized amount of grease
※Do not put grease too much
2mm
Apply grease to the screw shaft slimly
※Do not put grease widely.
(About 2mm from the bottom of LOWER BEARING)
