4 Electrical Section 4-4 Signal Output Control The Signal Output (Control ) window serves as controls to turn on or off actuat ors. “1” in the window indicates On state, “0” Off stat e. “0” and “1” toggle as you click on…
4 Electrical Section
4-3

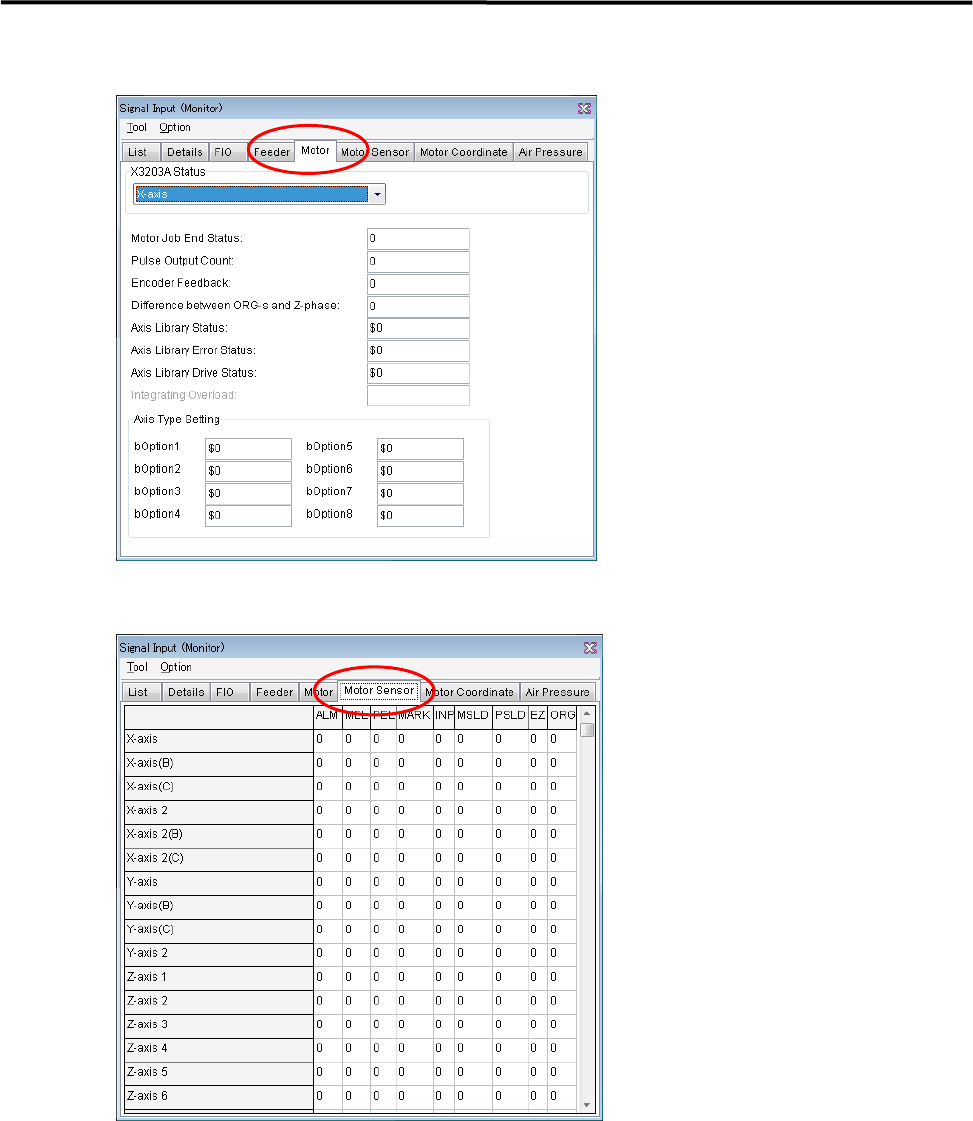

■ Motor tab
■ Motor Sensor tab
Window:
ALM: Alarm
MEL: Minus End Limited
PEL: Plus End Limited
MARK: Mark
INP: In Position
MSLD: Minus Slow Down
PSLD: Plus Slow Down
EZ: 0 Phase
ORG: Origin
4 Electrical Section
4-4
Signal Output Control
The Signal Output (Control) window serves as controls to turn on or off actuators. “1” in the window
indicates On state, “0” Off state. “0” and “1” toggle as you click on it, and the corresponding actuator is
turned on or off simultaneously. This operation allows you to check actuator movement in troubleshooting.
When an actuator moves properly in this operation, its sensor responds and the Signal Input (Monitor)
window shows the real-time result. The combination of an address and bit number (0-7) represents a signal.
The name of each signal is shown in the Details tab.
Turning on/off signal output in the Signal Output (Control) window allows an actuator to move. When
executing this operation, do not stick head, hands, or other parts of the body inside the unit. Serious injury
can result. Also make sure non-operators are a safe distance from the unit.
Before performing signal output on/off operation, make sure no foreign obstacles are left in the unit or tray
feeder. Otherwise, costly machine damage can occur.
Menu: Manual>Signal I/O>SignalOutput(Control)
■Digital Output (List) ・・・Not Use
■Digital Output (Details)・・・Not Use
Warning
Caution
4 Electrical Section
4-5

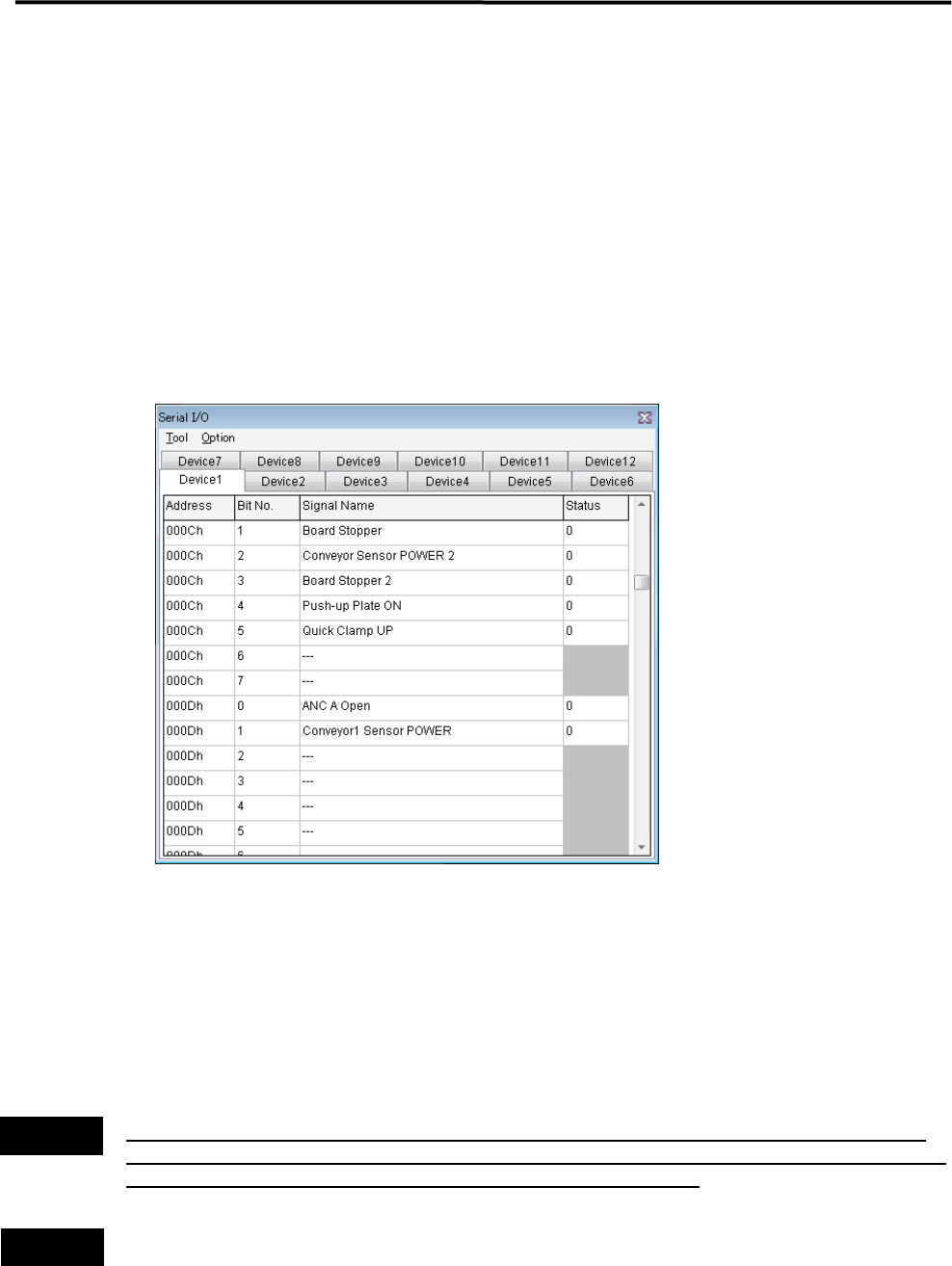

Serial I/O
■ Serial I/O List
Serial DO – Device 1, 3, 7, 9
Serial DI – Device 2, 4, 8, 10
Action:
① Click the cell corresponding to the desired actuator.
② At the same time you click the cell, the display changes 1(On) or 0(Off), and the actuator moves
accordingly.
Example:
■ Moving Up and Down the Board Stopper
① Select Manual> Signal I/O to open [Serial I/O] window.
② Select [Device3] tab.
③ Click [State] of [Board Stopper Up A] cell, Status changes “0” to “1” and the board stopper lifts.
At this time, confirm that State of [Board Stopper Up A (0010h)] in [Device4] switches from “0” to “1”.
④ To move down the board stopper, click [State] of [Board Stopper Up A] in [Device3].
And State changes “1” to “0”. At this time, State of [Board Stopper Up A (0010h)] in [Device4] switches
from “1” to “0”.
Turning on/off signal output in the Signal Output (Control) window allows an actuator to move. When
executing this operation, do not stick head, hands, or other parts of the body inside the unit. Serious injury
can result. Also make sure non-operators are a safe distance from the unit.
Before performing signal output on/off operation, make sure no foreign obstacles are left in the unit or tray
feeder. Otherwise, costly machine damage can occur.
Warning
Caution
