1 Installation

1-8

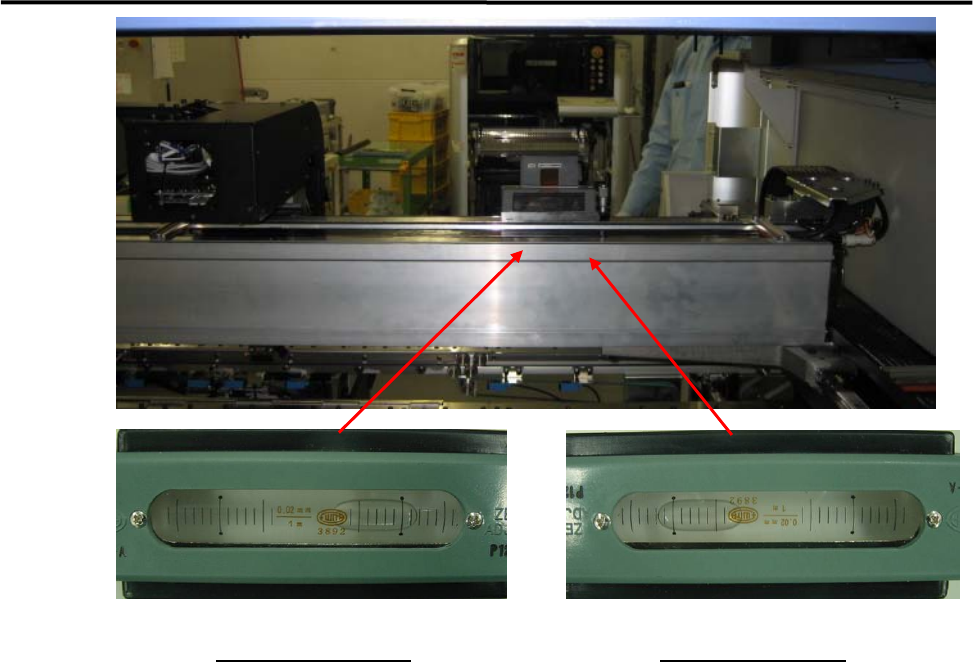

Viewed from the front

Viewed from the rear

⑦ Lock the adjust foot nut lastly.

NOTE: The adjust foot nuts must be locked with a closed wrench (nominal: 46mm) or a single-head wrench.

⑧ Connect the power cable and ground line independently of other machines which may be a noise

source, such as a compressor, welding machine.

⑨ Connect an intake-side air coupler 65SN or 85SN (Nitto Kohki) or equivalent to the air regulator

coupler located on the rear of the unit. After the coupler is connected, make sure that the air regulator’s

reading is 0.45MPa

1 Installation

1-9

LCD Monitor and Installation of Balancer

A balancer is put on LCD monitor to prevent the monitor from vibrating. It is removed and a weight inside

the balancer is fixed, and then is packaged separately before shipment.

In the machine installation, it should be confirmed that the weight has been unfixed before installing the

balancer on the monitor.

Details of Installation

① A balancer is installed on the back of Monitor (refer to the above picture ).

② Fig.1 shows a balancer unit.

③ A weight is inside of the balancer unit , which is attached on the plate by GOM (Fig.2).

④ A weight is fixed by screws and nuts before shipment ( Fig.2).

⑤ Before setting the balancer, screws and nuts have to be removed.

Remark; the balancer should not be turned upside down when removing screws and nut (Fig.3),

otherwise it may drop off.

Balancer

Fig 1 Fig 2 Fig3

Screws

Nut

Weight

GOM

1 Installation

1-10

Air and Power Cable Lead-In

Air Regulator

0.45MPa

Air Coupler

Supply Side Air Coupler

65SN/85SN

(NITTO KOHKI)

Corresponding Goods

The power cable terminal block is located at

inside of the right lower cover, so the cover has to

be opened , then power cables are connected to

the block.

Electric Power Supply Source

Source Voltage： AC200/208/220/240/380/400/416/440V

Three Phase 50/60Hz

Current Capacity： 6.0kV

Electric Wire：VCT 3.5mm2 or more, Four-cores cables

Terminal：Insulating Pin Terminal

TMEV TC3.5-11(made by NITHIFU) or similar

roducts
