3 Mechanical Section
3-5
Assembling STD. DP HEAD
The below is an assembly drawing and part list of STD. DP Head.
Part List
No. PART NO. PART NAME
Q’T
Y
No. PART NO. PART NAME
Q’T
Y
1 LE6-M5F5N-00x PIPE, FITTING 1 5 LE6-M5FBV-00x O-RING 1
2 LE6-M5F65-00x BRACKET NOZZLE 1 6 LE6-M5FF7-10x SET, SCREW 1
3 LE6-M5F69-00x ADAPTER 1 7 LG7-M740S-xxx SINGLE NOZZLE SEL. 2
4 LE6-M5F6A-00x LOCK, ADAPTER 1 8 90200-02J050 O-RING 1
① The dispensing head is composed of the following parts.
BRACKET NOZZLE
LE6-M5F65-00x
ADAPTER
LE6-M5F69-00x
LOCK ADAPTER
LE6-M5F6A-00x
O-RING
90200-02J050
3 Mechanical Section
3-6
② Insert ADAPTER to BRACET NOZZLE
③ Set NOZZLE on ADAPTOR
④ Assemble LOCK ADAPTER on BRACKET NOZZLE
Reference; Dispensing Nozzle List
PART NAME PART NAME
LG7-M740S-10x NOZZLE, SINGLE (15G)
LG7-M740S-30x NOZZLE, SINGLE (19G)
LG7-M740S-50x NOZZLE, SINGLE (22G)
Lg7-M740S-70x NOZZLE, SINGLE (25G)
Make sure that O-RING has been put on
ADAPTOR before inserting ADAPTOR.
Tighten LOCK ADAPTER just enough
not to be loosened.
3 Mechanical Section
3-7

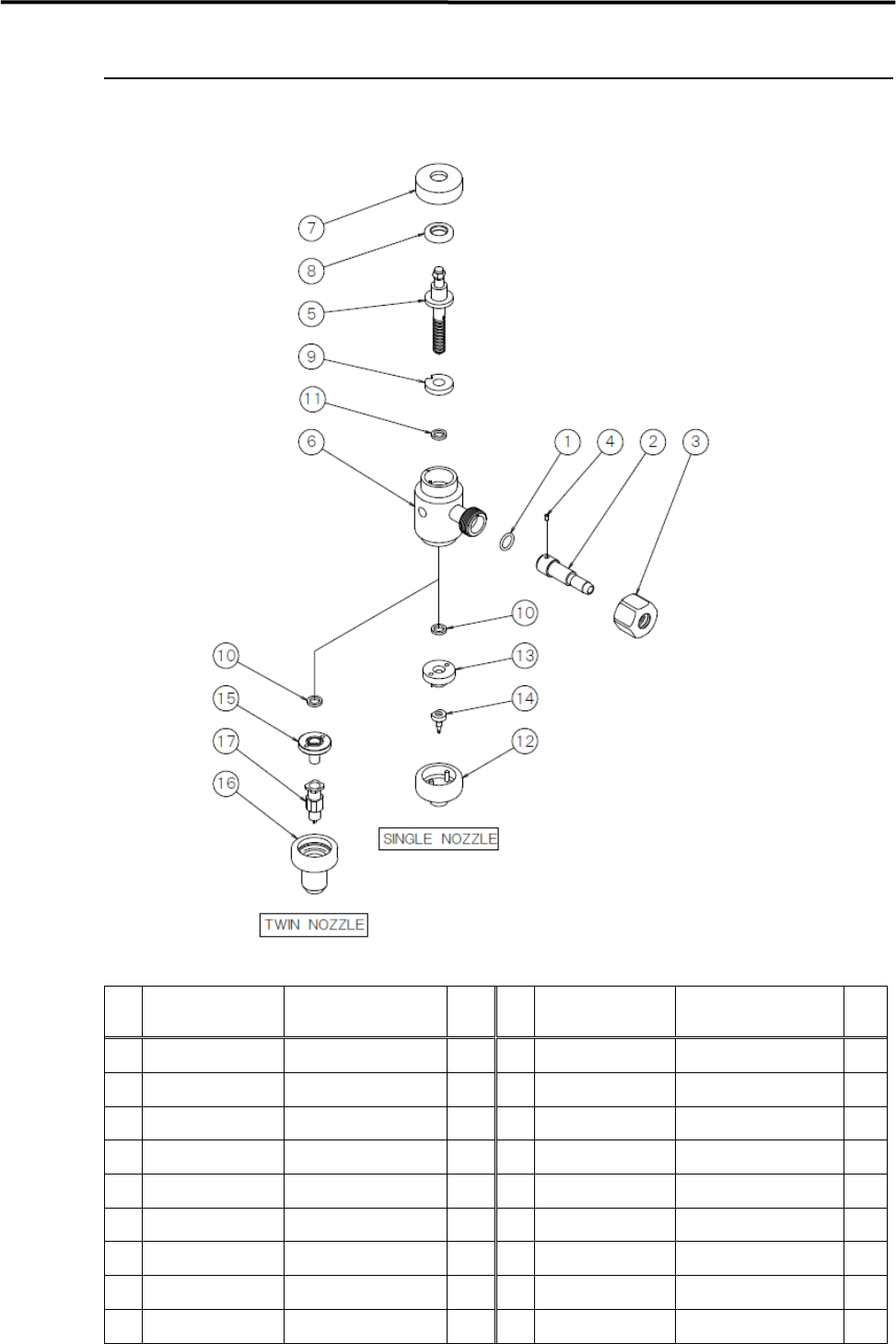

Assembling SCREW DP HEAD
The below is an assembly drawing and part list of SCREW HEAD.
Part List
No. PART NO. PART NAME Q’TY No. PART NO. PART NAME
Q’T
Y
1 LE6-M5F1E-00x O-RING 1 10 LE6-M5FL3-00x FACE SEAL 2
2 LE6-M5F59-02x PIPE, FITTING 1 11 LE6-M5FL4-00x O-RING (VITON) 1
3 LE6-M5F5C-01x NAT, CAP 1 12 LE6-M5FM0-00x CAP, BOTTOM 1
4 LE6-M5F5D-00x PIN, PARALLEL 1 13 LE6-M5FM1-00x ADAPTER PLATE 1
5 LE6-M5FJ0-00x SCREW 16-1-01 1 14 LE6-M5FN0-xxx SINGLE NOZZLE SEL 1
6 LE6-M5FK0-00x CARTRIDGE BODY 1 15 LE7-M5F61-00x ADAPTER 1
7 LE6-M5FK1-00x CAP, TOP 1 16 LE7-M5F62-00x CAP. LOCK 1
8 LE6-M5FL0-00x UPPER BEARING 1 17 LE7-M5F63-xxx TWIN NOZZLE SEL.
9 LE6-MFL1-00x LOWER BEARING 1
