3 Mechanical Section 3-32 ③ Set the p aper roll in the Dot Station unit. Pass the paper beneath the top bar. Press in until a latching sound (click) is heard. Pass the paper between the bars.
3 Mechanical Section
3-31
Installing the paper roll at the Dot Station
① Detach the cover.
② Insert the core into the paper roll.
Paper roll
KM4-M9330-011 / ROLL PAPER
Loosen these screws.
Remove the cup.
3 Mechanical Section
3-32

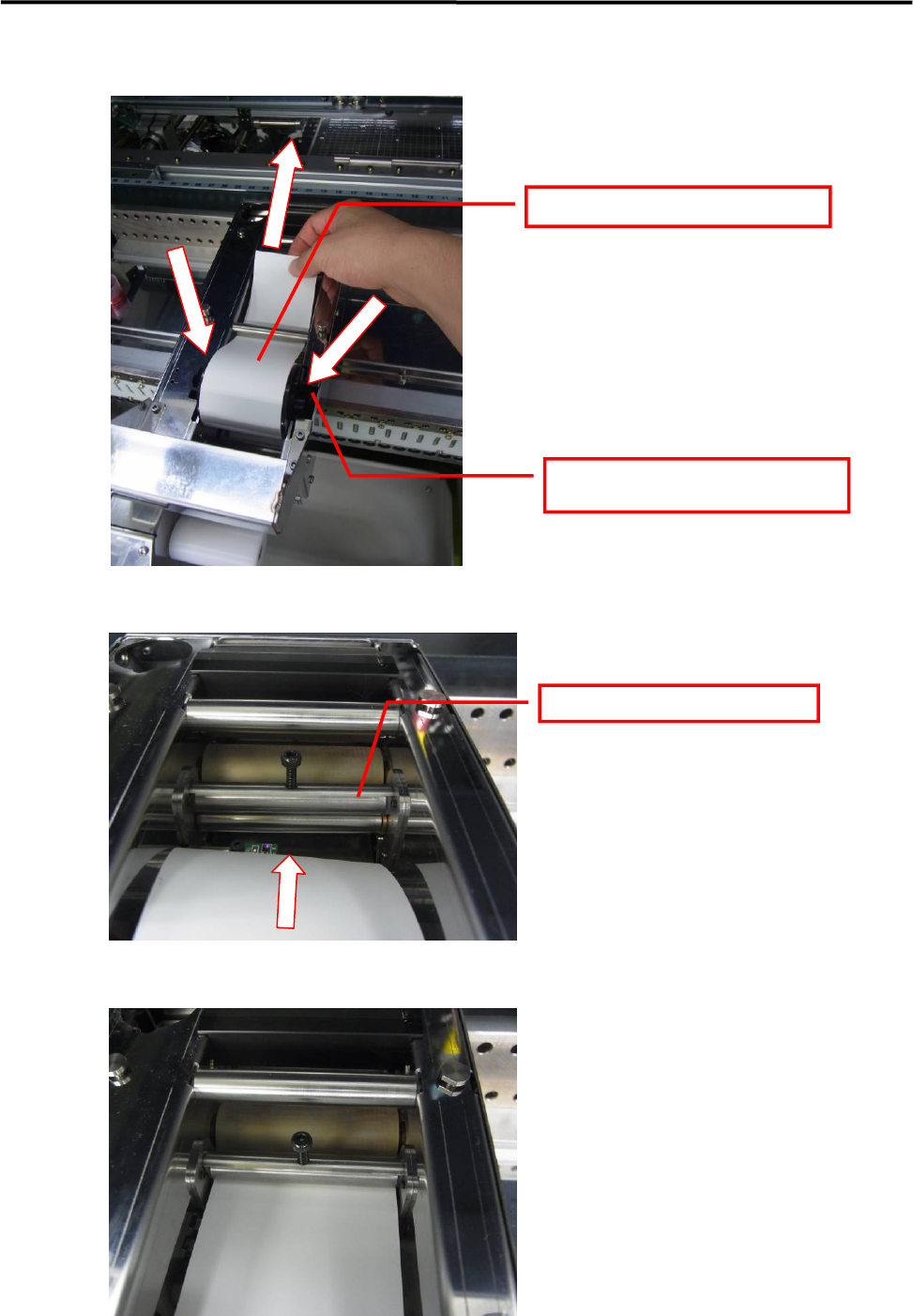

③ Set the paper roll in the Dot Station unit.
Pass the paper beneath the top bar.
Press in until a latching sound (click)
is heard.
Pass the paper between the bars.
3 Mechanical Section
3-33

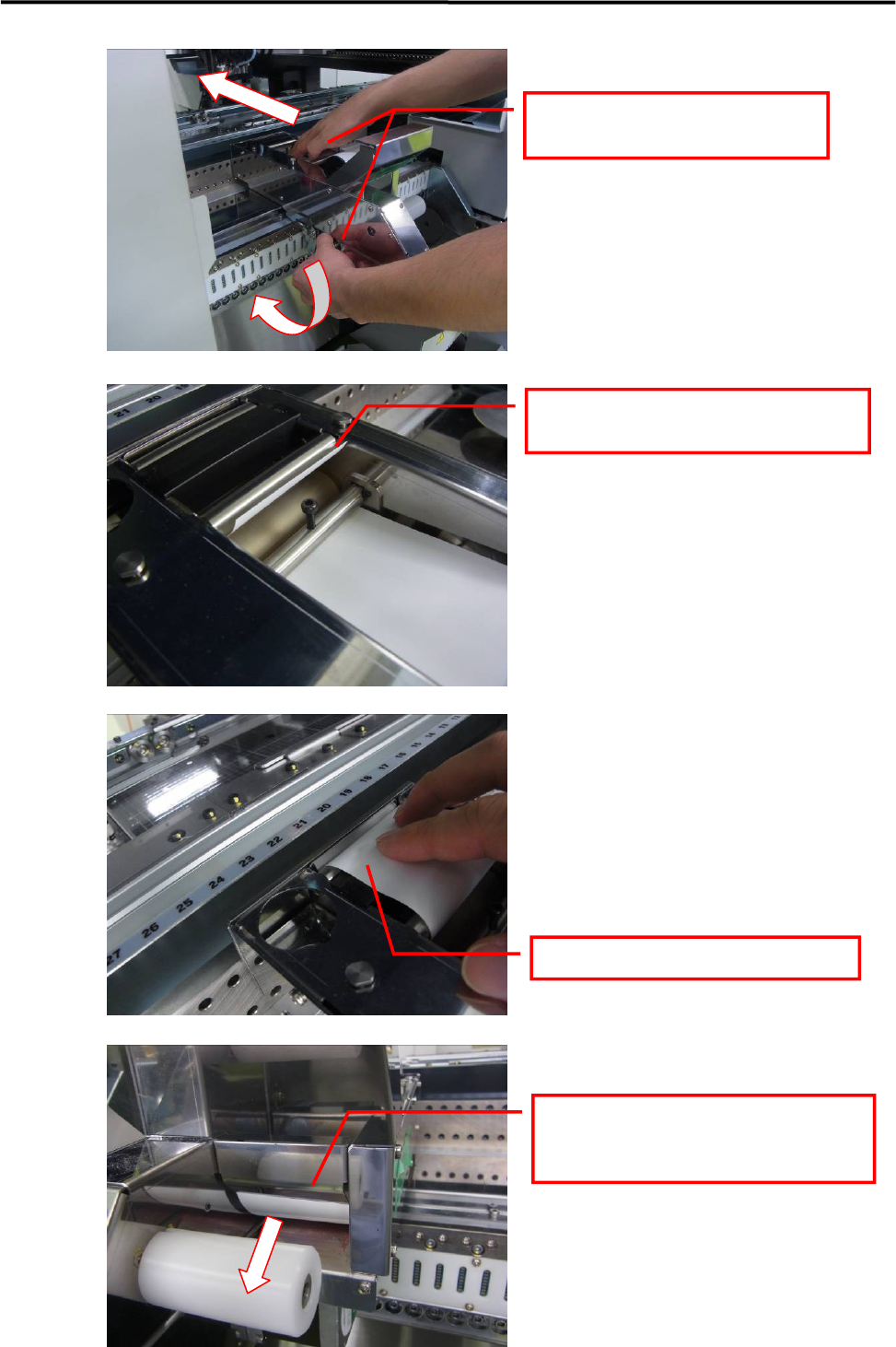

While turning the left-side knob, feed the
paper forward by hand.
The end of the paper appears from the feed
roller.
Feed the paper into the paper outlet.
Continue turning the left-side knob until
the end of the paper is fed out from the rear
outlet.
