1 Installation

1-9

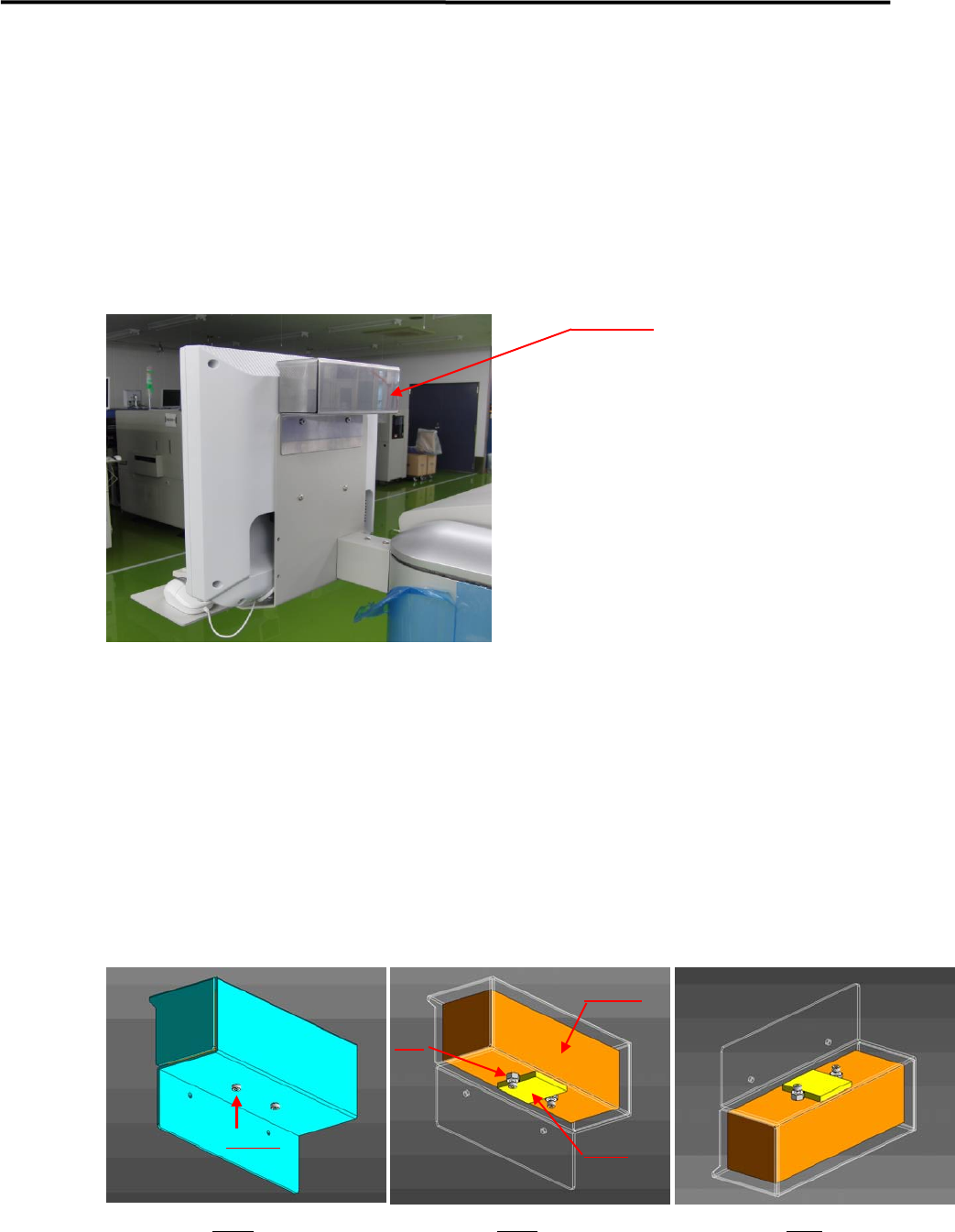

LCD Monitor and Installation of Balancer

A balancer is put on LCD monitor to prevent the monitor from vibrating. It is removed and a weight inside

the balancer is fixed, and then is packaged separately before shipment.

In the machine installation, it should be confirmed that the weight has been unfixed before installing the

balancer on the monitor.

Details of Installation

① A balancer is installed on the back of Monitor (refer to the above picture ).

② Fig.1 shows a balancer unit.

③ A weight is inside of the balancer unit , which is attached on the plate by GOM (Fig.2).

④ A weight is fixed by screws and nuts before shipment ( Fig.2).

⑤ Before setting the balancer, screws and nuts have to be removed.

Remark; the balancer should not be turned upside down when removing screws and nut (Fig.3),

otherwise it may drop off.

Balancer

Fig 1 Fig 2 Fig3

Screws

Nut

Weight

GOM

1 Installation

1-10

Air and Power Cable Lead-In

Air Regulator

0.45MPa

Air Coupler

Supply Side Air Coupler

65SN/85SN

(NITTO KOHKI)

Corresponding Goods

The power cable terminal block is located at

inside of the right lower cover, so the cover has to

be opened , then power cables are connected to

the block.

Electric Power Supply Source

Source Voltage： AC200/208/220/240/380/400/416/440V

Three Phase 50/60Hz

Current Capacity： 6.0kV

Electric Wire：VCT 3.5mm2 or more, Four-cores cables

Terminal：Insulating Pin Terminal

TMEV TC3.5-11(made by NITHIFU) or similar

roducts

1 Installation

1-11

Supplementary Explanation for Installation

When setting up a production line, level adjustment and line positioning of the unit may be carried out at the

same time. However, to fine-adjust the unit position with the unit level, it is recommended that the unit be

roughly positioned to the production line first, and then be leveled and positioned accurately using the

following four sets comprising a hydraulic jack and plates.

ACTION:

① Apply grease between base plates 1 and 2 for lubrication purposes.

② Place a plate set near each unit jack-up point (four points).

③ Place a jack on each plate set and jack up the unit.

④ Adjust each jack so that the unit is level.

⑤ Fine-adjust the position of the unit while the unit is jacked up. (The unit can be moved lengthwise and

crosswise with help of grease applied between the plates.)

Hydraulic jack

Base plate 1

Base plate 2

Apply grease

between the

lates.

Hook stroke
