3 Mechanical Section
3-33
While turning the left-side knob, feed the
paper forward by hand.
The end of the paper appears from the feed
roller.
Feed the paper into the paper outlet.
Continue turning the left-side knob until
the end of the paper is fed out from the rear
outlet.
3 Mechanical Section
3-34
Use tape to secure the end of the fed-out
paper to the take-up core.
Install so that the paper is parallel with the
take-up core.
* Take-up problems may occur if the paper is
secured in a slanted manner (not parallel to the
core).
The paper must not extend from the take-up
core.
The paper must not be in a slanted posture.
3 Mechanical Section
3-35
④ Checking the feed operation
Verify that the paper feed is occurring properly.

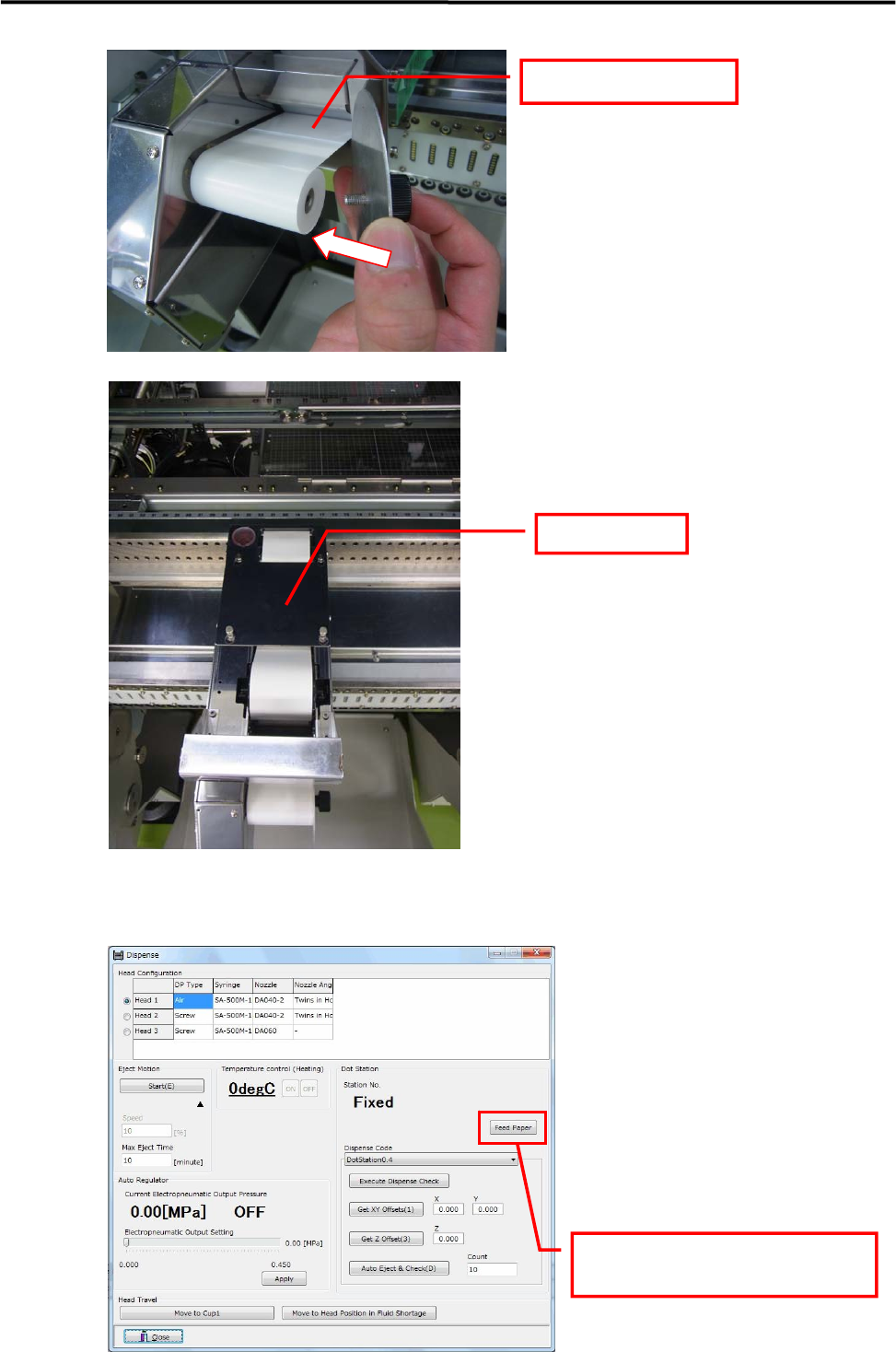

Attach the take-up plate.
Attach the cover.
Execute a paper feed to verify that the
paper feed is occurring properly.
