3 Mechanical Section 3-31 Installing the paper roll at the Dot Station ① Detach the cover. ② Insert the co re into the paper roll. Paper roll KM4-M9330-011 / ROLL PAPER Loosen these screws. Remove the cup.

3 Mechanical Section

3-30

Specified Lubricants

■ D10

PART MANUFACTURER PRODUCT NAME

X/Y Axis

Ball screw

Linear guide

THK AFA Grease

NOK NBU15

KYODO YUSHI Multemp

Z Axis

Ball screw

Linear guide

THK AFB Grease

Showa-Shell Albania Grease No. 2

Idemitsu Daphnis Eponex Grease No. 2

R Axis

Spline shaft

THK AFB Grease

Showa-Shell Albania Grease No. 2

Idemitsu Daphnis Eponex Grease No. 2

Silicone Grease for

Nozzle

Three Bond #1855 Silicone Grease

■Purchasable Grease from us

Part Name

Part No. Remark

GREASE,AFA LG0-M86A3-00X AFA Grease

GREASE,AFB LG0-M86A4-00X AFB Grease

GREASE GUN ASSY. LE6-M8910-00X Grease Gun and Nozzle set

GREASE,SILICON LG0-M89AB-00X Silicone Grease

NOTE: AFA grease is superior to AFB grease and can be used for all the axes.

NOTE: Order placement for lubricants can be accepted only if the machine is delivered inside Japan. For locations

overseas, please consultant the agency where you purchased the machine.

NOTE: Please specify Part No.

to place an order.

3 Mechanical Section

3-31

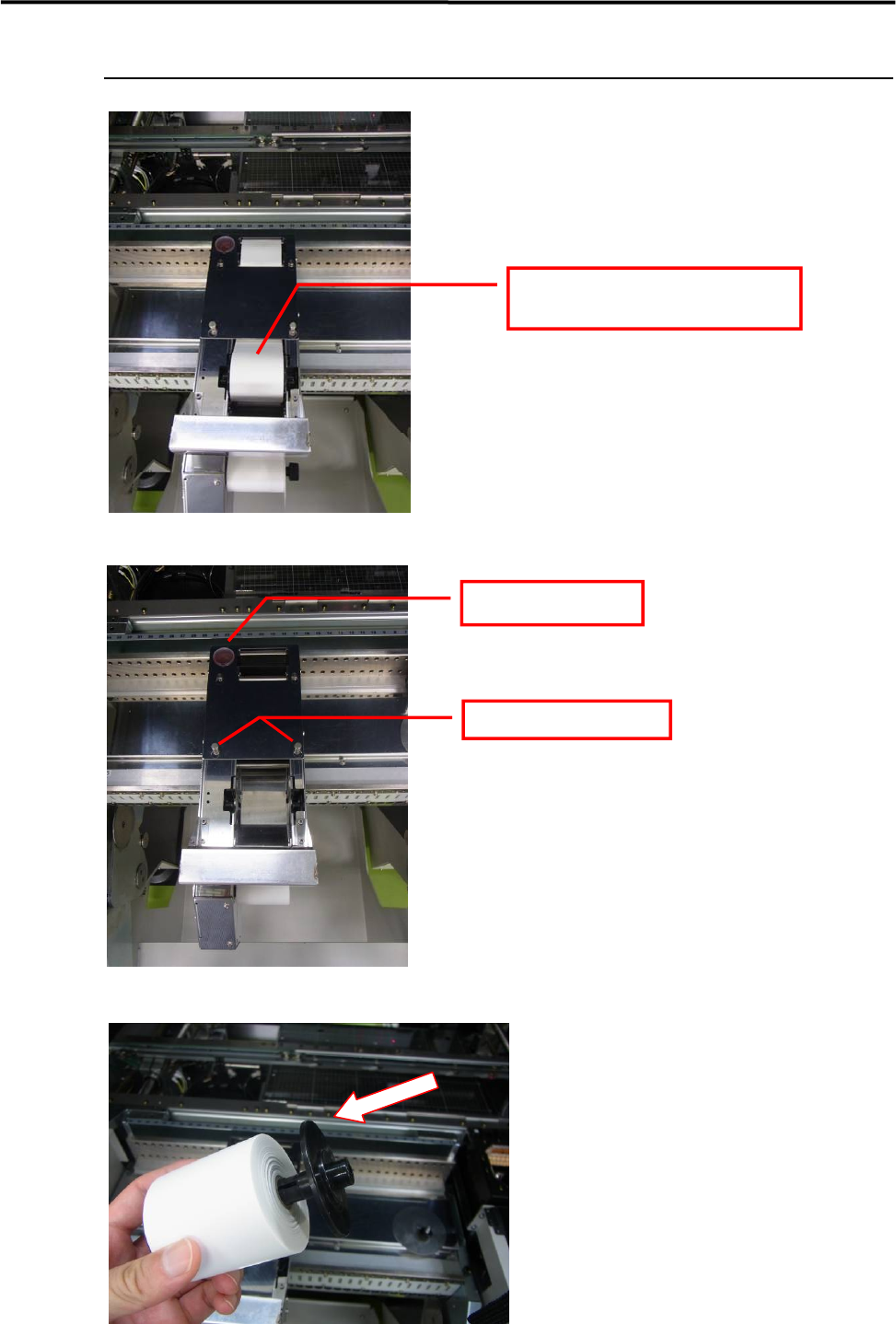

Installing the paper roll at the Dot Station

① Detach the cover.

② Insert the core into the paper roll.

Paper roll

KM4-M9330-011 / ROLL PAPER

Loosen these screws.

Remove the cup.

3 Mechanical Section

3-32

③ Set the paper roll in the Dot Station unit.

Pass the paper beneath the top bar.

Press in until a latching sound (click)

is heard.

Pass the paper between the bars.
