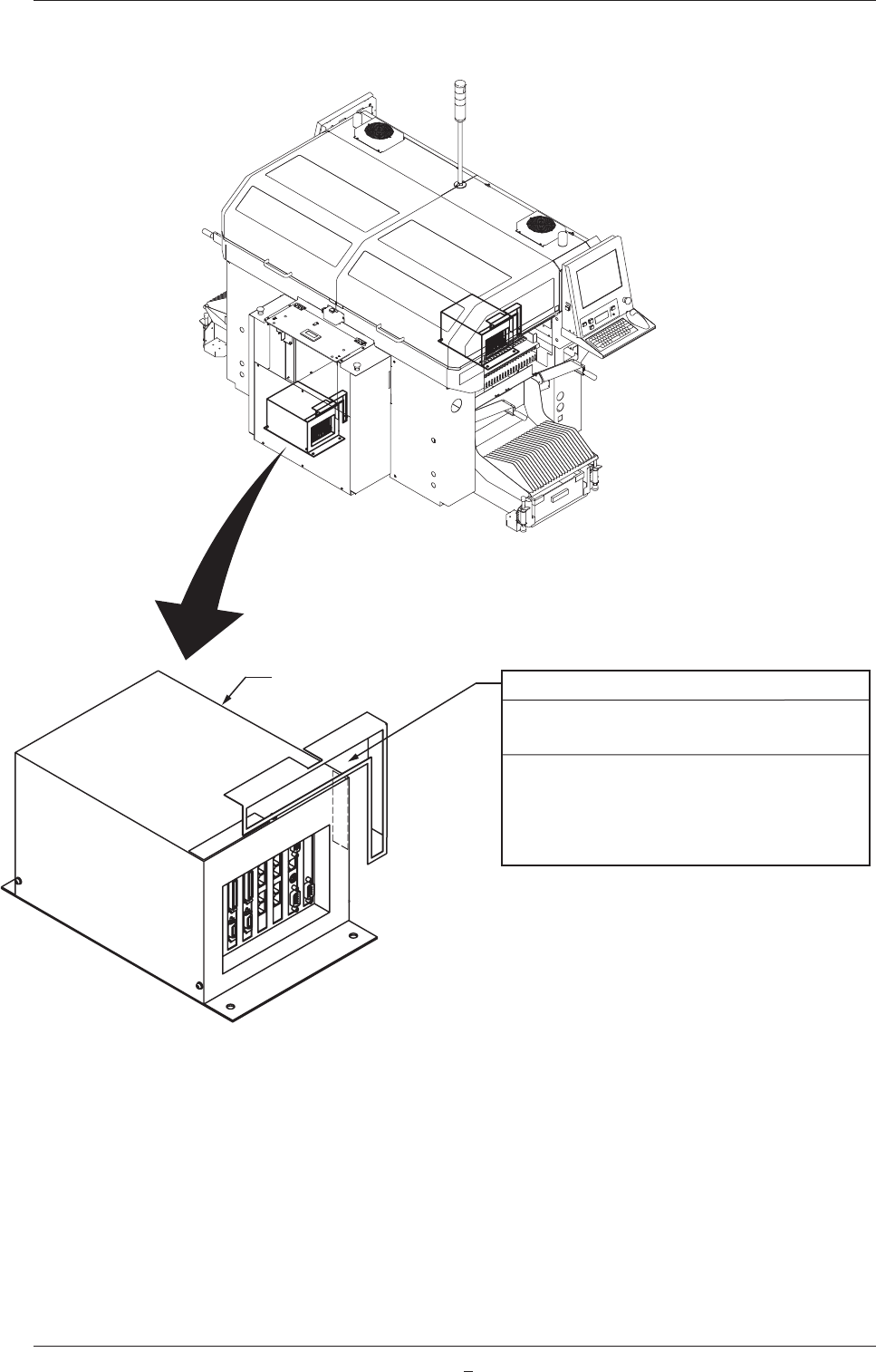

3.3.12 Control Box Section

Filters (2 places)

CPU-2

Every 3 Months Cleaning

Required Time: 4 minutes

(1) Remover the dust filter fixed with the

magnet.

(2) Suck dirt and dust with a vacuum cleaner.

(3) Attach the dust filter.

Fig. 4A34

3.3 Inspection, Cleaning, and Lubrication Spots

0811-003

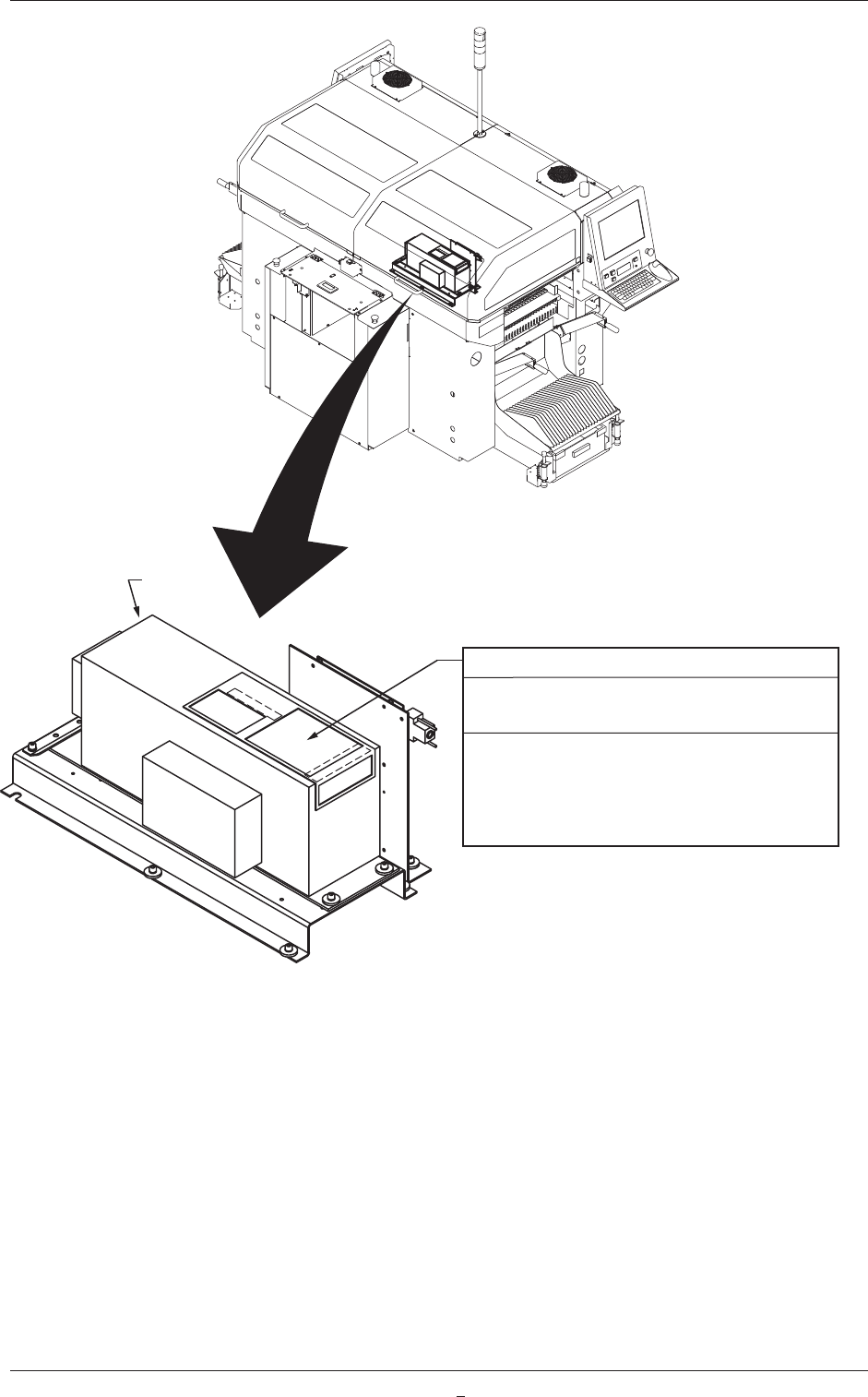

1-44-1

Filters (1 places)

CPU-3

Every 3 Months Cleaning

Required Time: 4 minutes

(1) Remover the dust filter fixed with the

magnet.

(2) Suck dirt and dust with a vacuum cleaner.

(3) Attach the dust filter.

Fig. 4A34-1

3.3 Inspection, Cleaning, and Lubrication Spots

0811-002

1-45

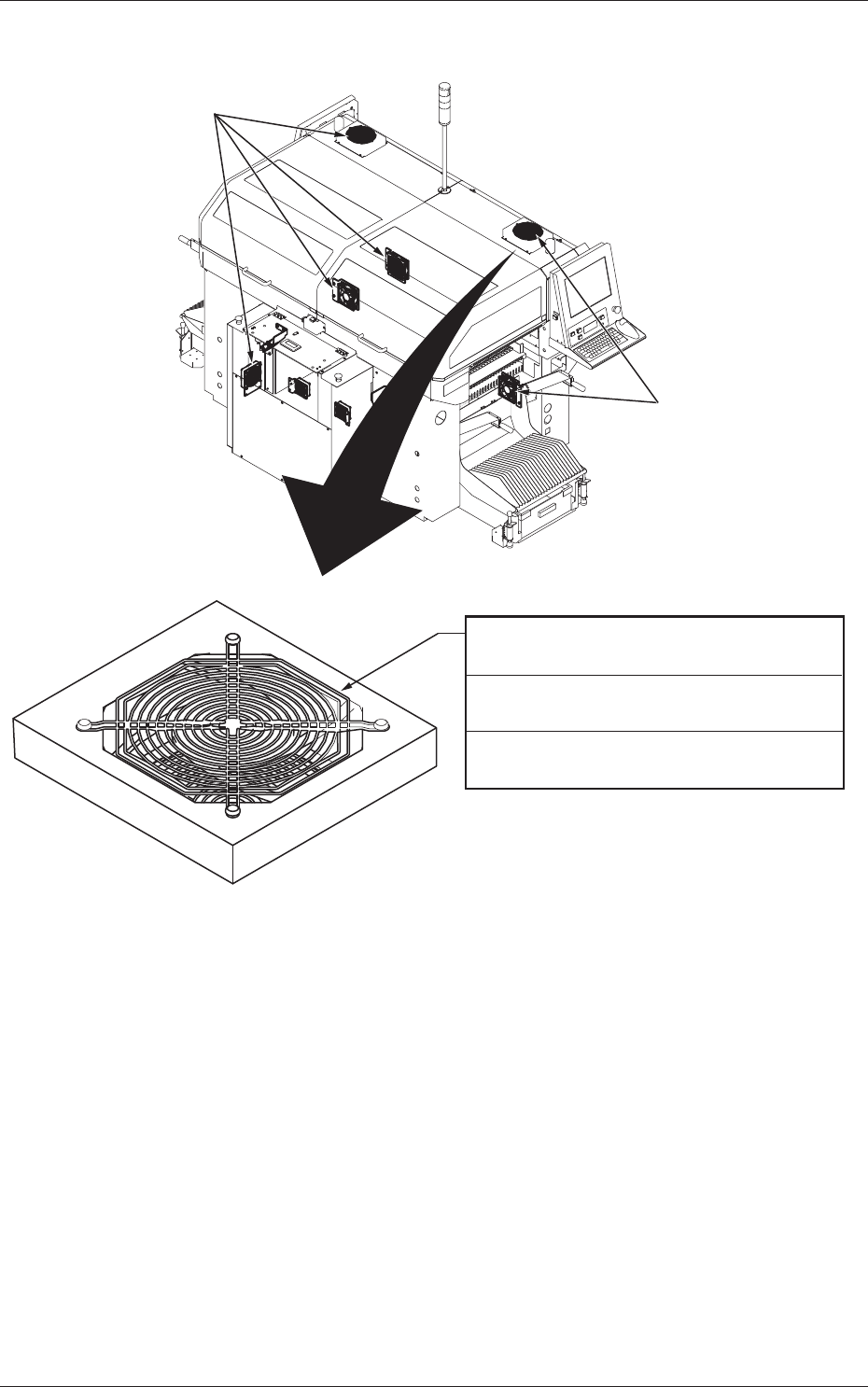

3.3.13 Fans

Fans

Every 3 Months Cleaning

Required Time: 10 minutes

Suck dirt and dust from the dust filters with

a vacuum cleaner.

Fan

(8 places)

Fig. 4A35
