Vacuum Tweezers

Use a pair of vacuum tweezers on the market.

(Handy Type)

(Motor-Driven Type)

Fig. 4A3 Various Types of Vacuum Tweezers

1.2 Preparation for Maintenance

1-5

1.2.2 Preparation for Lubrication

Prepare for the specied types of grease and lubrication tools.

SpeciedGreases

•

DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)

•

MOLYNOC GREASE AP1 (NIPPON OIL CORPORATION)

•

Silicon Grease KS64 (Shinetsu Kagaku)

Note

Before lubrication, wipe off old grease. Otherwise, the effect of grease and

oil will decrease.

Same Types of Lubricants

•

Grease Types equivalent to DAPHNE EPONEX GREASE No. 1

(IDEMITSU KOSAN)

Table 4A1

•

Grease Types equivalent to MOLYNOC GREASE AP1 (NIPPON OIL

CORPORATION)

Table 4A2

•

Grease Types equivalent to Silicon Grease KS64 (Shinetsu Kagaku)

Table 4A3

0709-001

1.2 Preparation for Maintenance

1-60802-002

Speciedlubricationtools

(1) Brush

Use a brush whose bristles do not come off if possible.

Notice

Do not use a brush for ball screws and splines.

(2) Vinyl Gloves

Use a pair of vinyl gloves to apply grease or oil by hand.

(3) Hand Grease Gun

Standard : KH-120

Part No. : 630 062 2577

Maker : Yamada Yuki

Note

Use this gun only for DAPHNE EPONEX GREASE No. 1.

Reference

Refer to the attached instruction manuals for the hand grease gun for the

usage.

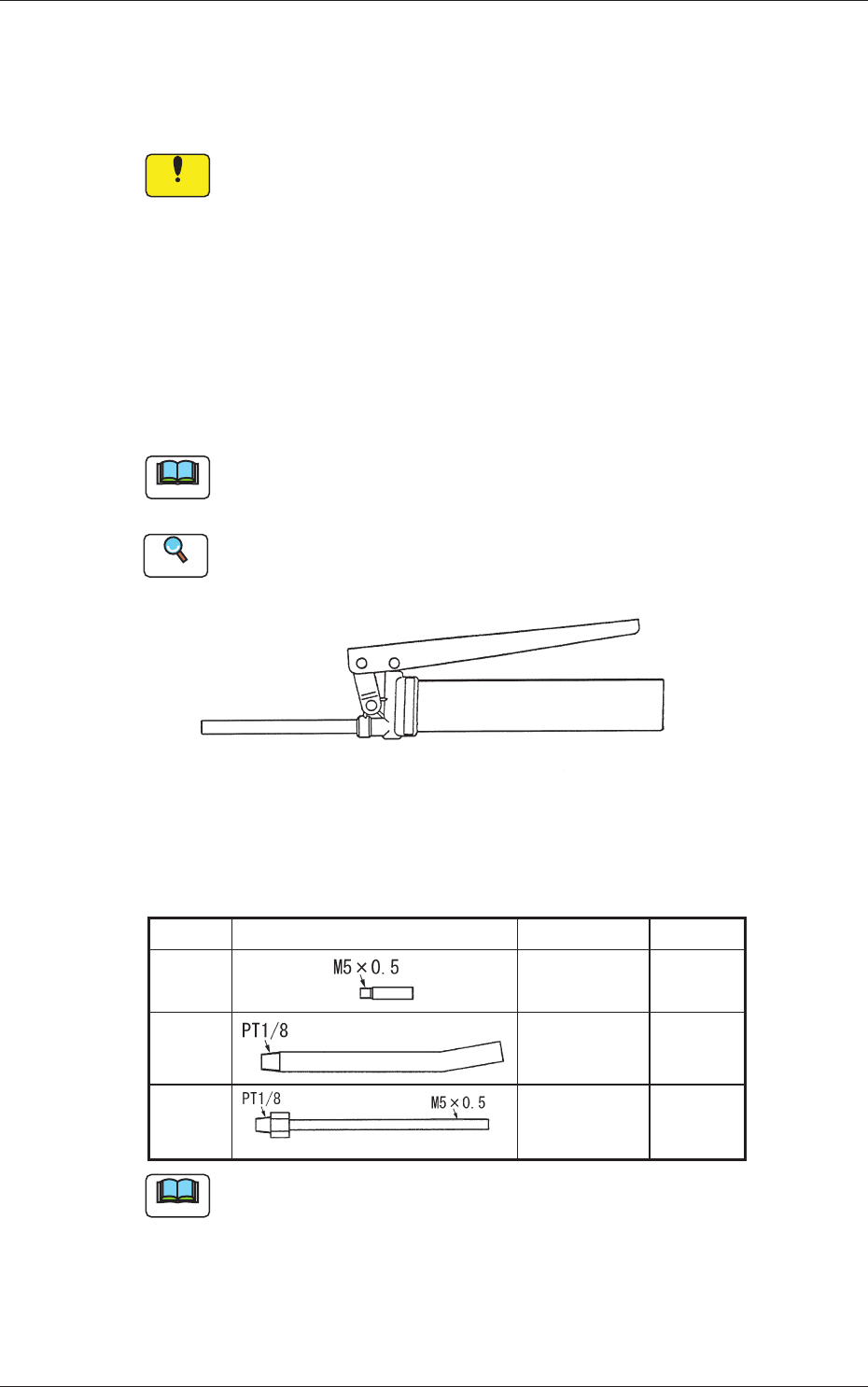

Fig. 4A4

•

Attachment for Hand Grease Gun KH-120

Table 4A5

Standard Shape Part No. Remarks

Type N

630 061 7467 THK

Type H

630 061 7450 THK

Type U

630 061 7443 THK

Note

It is not attached to the machine. Purchase it separately if necessary.

1.2 Preparation for Maintenance
