1.3 Items for Periodic Maintenance

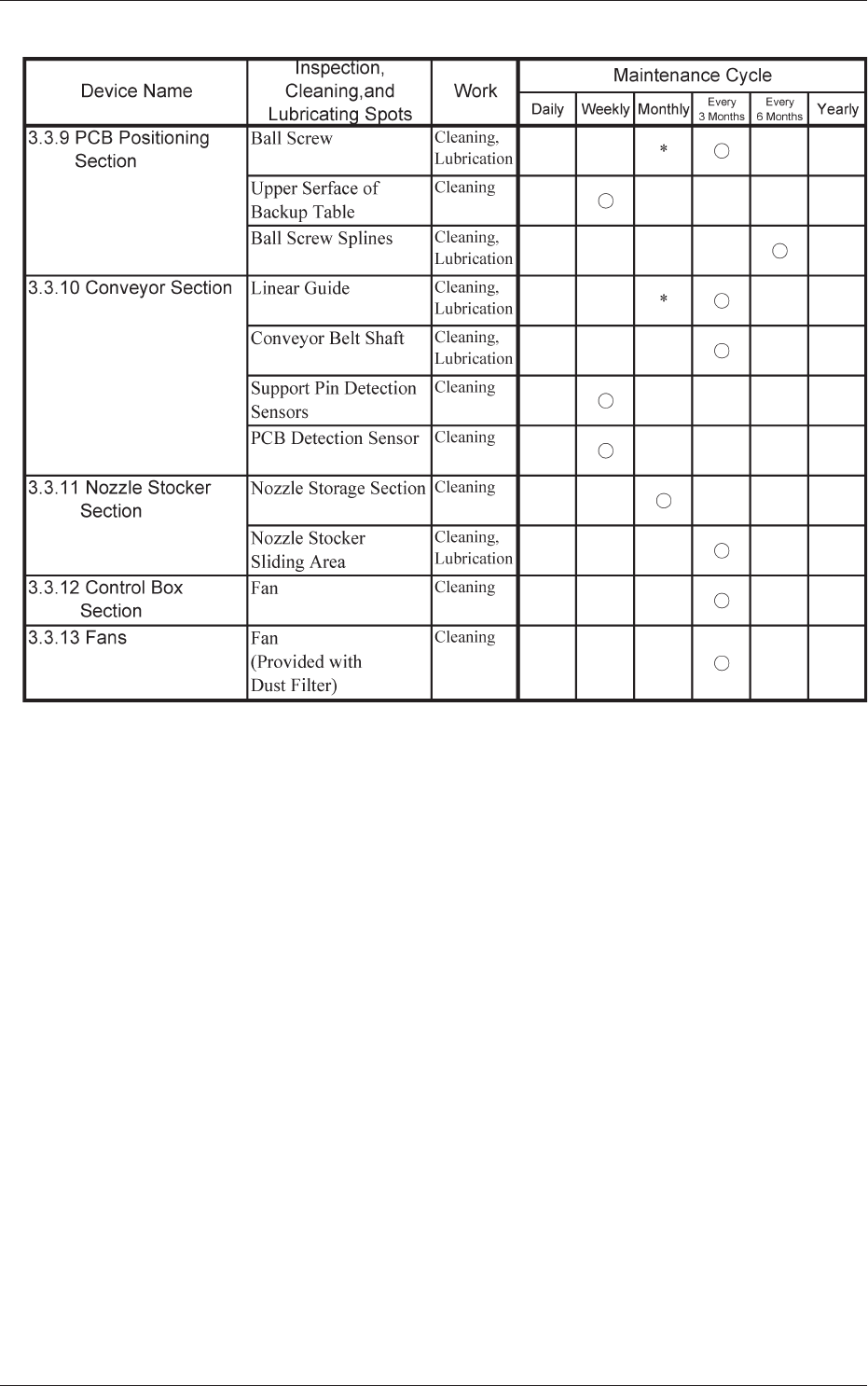

Table 4A7-3
1-110802-002
2. Maintenance Check List
The periodic maintenance items (inspection, cleaning, lubrication, etc.)
are classied and described based on how frequently each item should be
performed.
Use the tables below as check lists.
Reference
Refer to "3. Maintenance Spots" for the spots to be maintained.
2.1 Daily Maintenance

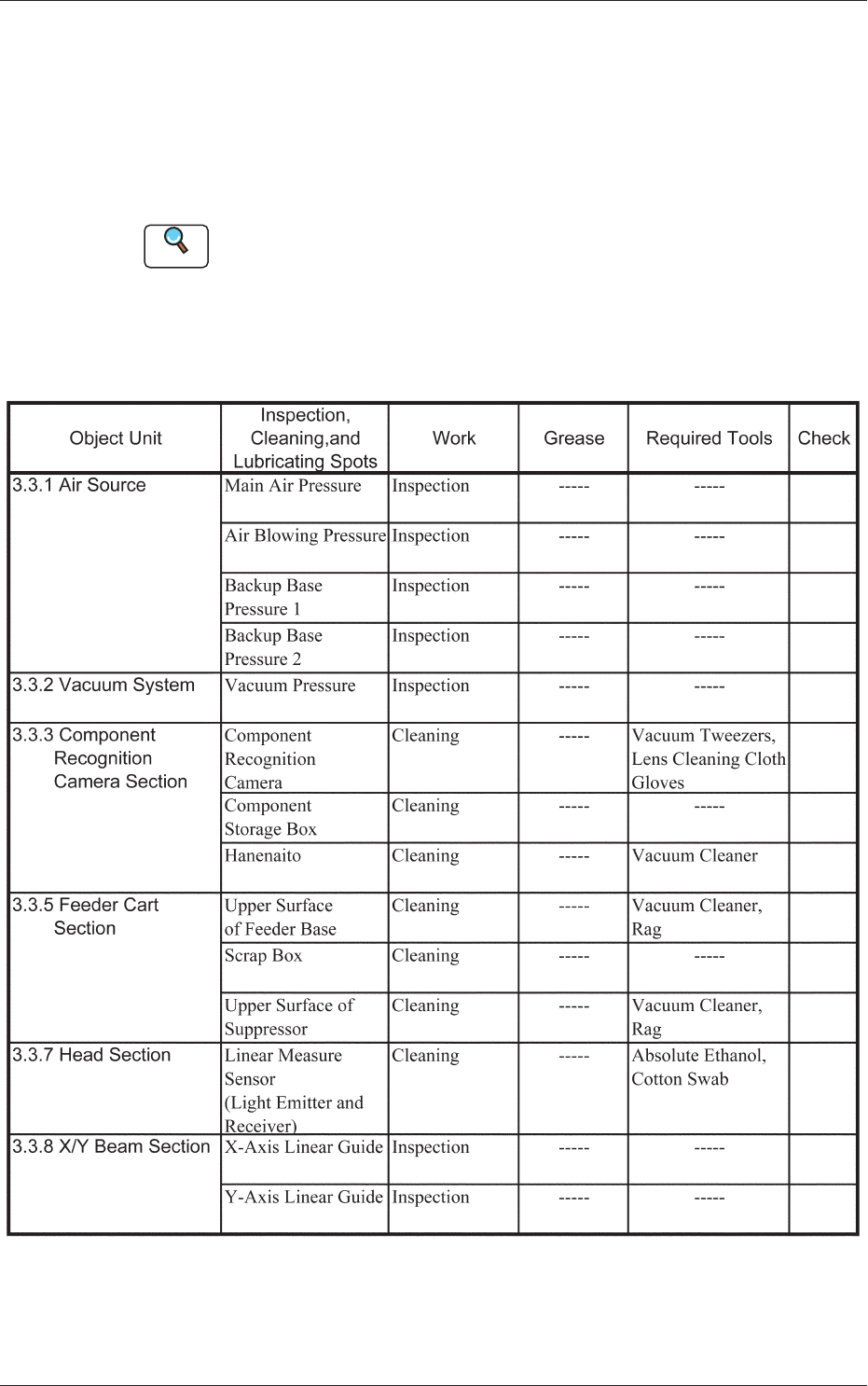

Table 4A8
2. Maintenance Check List
1-120803-002
2.2 Weekly Maintenance
2.2 Weekly Maintenance

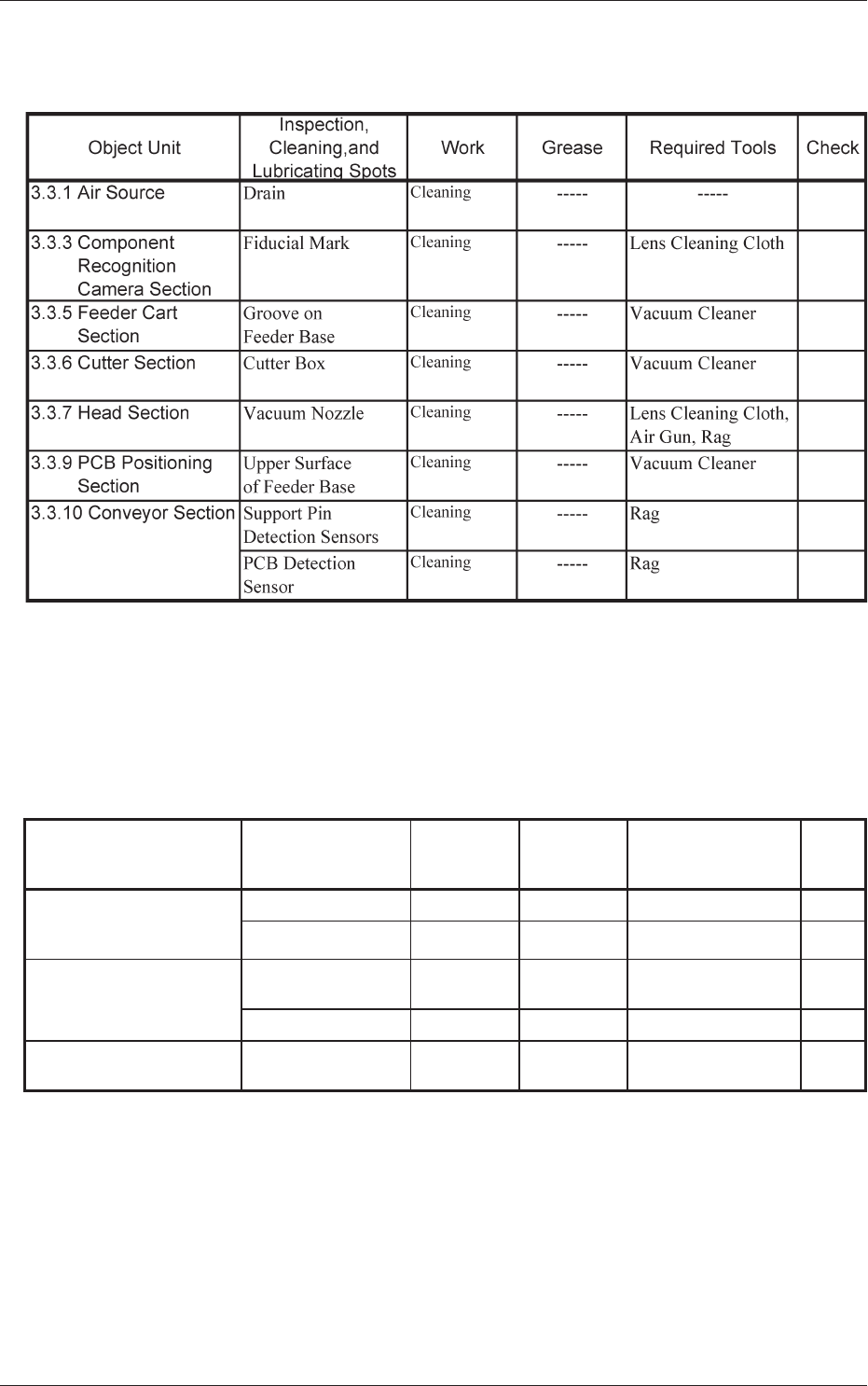

Table 4A9
2.3 Monthly Maintenance
Grease Symbols
DE1: DAPHNE EPONEX GREASE No. 1
Table 4A10
Object Units
Inspection,
Cleaning,and
Lubricating Spots
Work Grease Required Tools Check
3.3.3 Component
Recognition
Camera Section
QFP Glass Plate Jig Cleaning ----- Lens Cleaning Cloth
Teaching Plate Cleaning ----- Rag
3.3.7 Head Section
Nozzle U/D Linear
Guide (NL Axis)
Cleaning,
Lubrication
DE1 Rag,Syringe,
Nozzle (No.18)
Diffusion Plate Cleaning ----- Lens Cleaning Cloth
3.3.11 Nozzle Stocker
Section
Nozzle Storage
Section
Cleaning ----- Vacuum Cleaner
