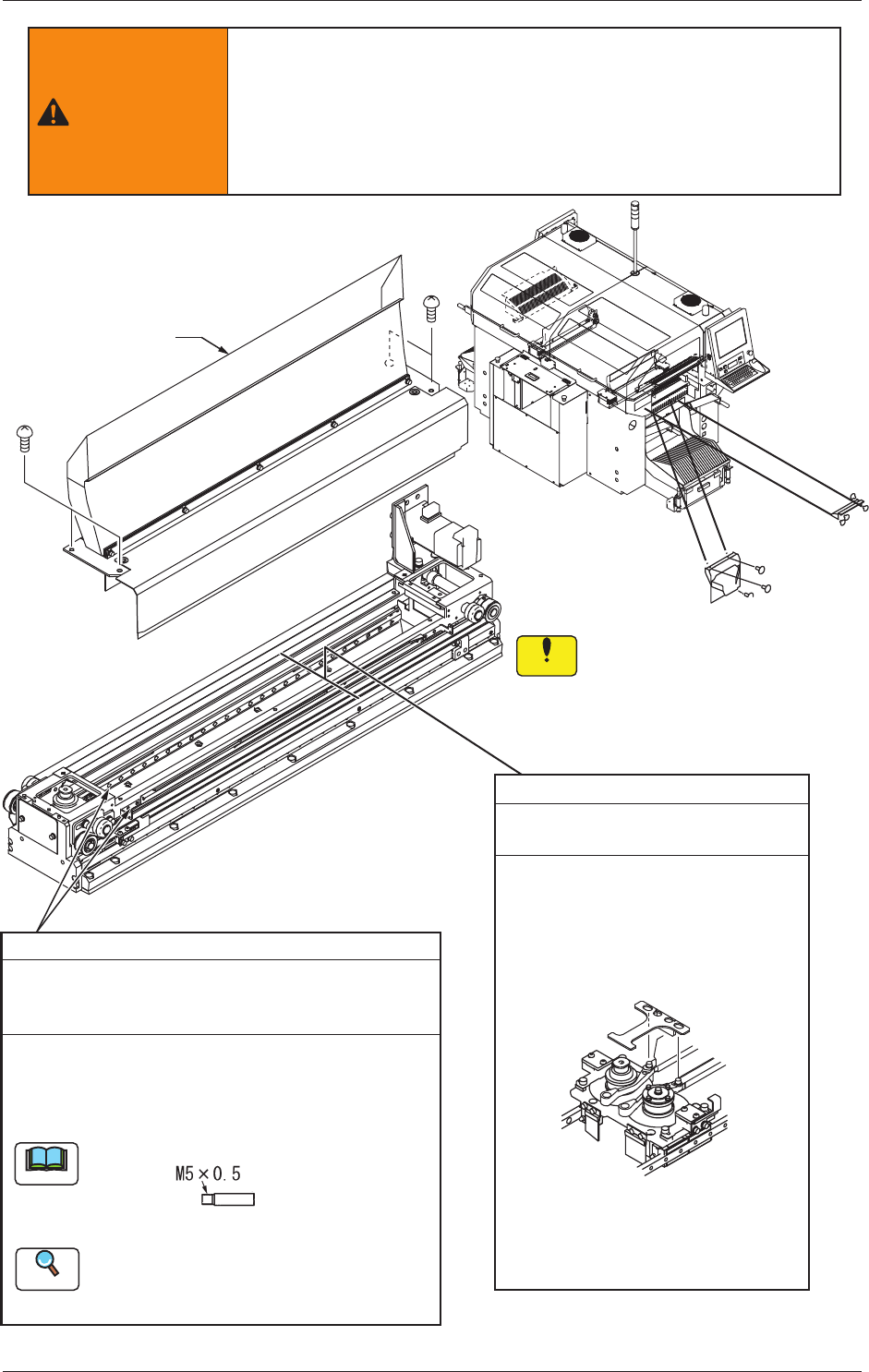

3.3 Inspection, Cleaning, and Lubrication Spots
WARNING
Pay close attention to the cutter blade during the maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Besuretoattachthexingjigto
thecutunitduringthe
maintenance work for safety purposes.
Upper Cover
Lower Cover
Linear Guides
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
(1) Remove four screws and detach the tape guide.
(2) Wipe old grease out using a rag and apply new
grease onto the linear guide (upper and lower
sides).
Tape Guide
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Cutter Box
Every 3 Months Cleaning
Required Time: 5 minutes
(1) Remove four screws and detach
the tape guide.
(2) Use the outer hole of the cut unit
fixing jig and attach the jig with
the bent portion being directed
downward.
Attachment Position of
Cut Unit Fixing Jig
(3) Clean the area around the linear
guides with a vacuum cleaner.
Use Type N nozzle.
Type N
Refer to "4.5 Lubricating Procedure onto the
Linear Guide Oil Filler Port" for lubricating
procedure.
Note
Reference
Fig. 4A19-2
0802-002
1-31
WARNING
Pay close attention to the cutter blade during the maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Besuretoattachthexingjigto
thecutunitduringthe
maintenance work for safety purposes.
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Tape Guide
Attachment Position of
Cut Unit Fixing Jig
Flat Ring
Every 3 Months Replacement
Required Time: 10 minutes
(1) Remove four screws and detach the tape guide.
(2) Use the inner holes of the cut unit fixing jig with the tape clamp being closed and
attach the jig with the bent portion being directed upward.
(3) Cut the used flat ring with a cutter on market and detach it.
(4) Attach a new flat ring to the flat ring replacement jig.
(5) Put the flat ring replacement jig on the roller on the oscillating side (outside of the
machine) and push down the flat ring until it is inserted into the groove of the roller.
Replacement Jig
Attached
Fig. 4A19-3
CAUTION
Whentheatringiscut,takecarenottogetinjuredbythe
commercially available cutter.
3.3 Inspection, Cleaning, and Lubrication Spots
0802-002
1-31-1
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Tape Guide
Attachment Position of
Cut Unit Fixing Jig
Fluorine Sheet, Urethane Clamp
Every Year Replacement Required Time: 5 minutes
(1) Remove four screws and detach the tape guide.
(2) Use the outer hole of the cut unit fixing jig and
attach the jig with the bent portion being directed
downward.
(3) Replace the fluorine sheet and the urethane clamp.
Refer to "4.3 Replacement of Fluorine Sheet
and Urethane Clamp" for the replacement
procedure.
Note
After the fluorine sheet has been replaced,
activate the cutter without a tape and cut the
fluorine sheet.
Reference
Fig. 4A19-4
3.3 Inspection, Cleaning, and Lubrication Spots
0802-001
