4-20 0709-001 3.5 PEC Recognition Errors Z A B CC DDD Detailed Classification: Detailed Classification Small Classification: Small Classification Middle Classification 0: PEC Recognition (Mark Missing) 1: PEC Recognition…

100%1 / 271
4-190709-001
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 5 8 ** 301 Electrode(ball) length is incorrect.
0 5 8 ** 302 Electrode(ball) position is larger than a permissible value.
0 5 8 ** 303 Electrode(ball) is not exist.
0 5 8 ** 401 A shape positional gap is larger than a permissible value.
0 5 8 ** *** Others.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5 9 ** 101 Error in Polarity Detection.
0 5 9 ** 102 The polarity of components differs.
0 5 9 ** 103 The polarity of components cannot be judged.
0 5 9 ** 201 The component is reversed.
0 5 9 ** 301 There is the electrode (lead) that must not exist
0 5 9 ** 302 There is the electrode (ball) that must not exist
0 5 9 ** 303 There is the shape that must not exist.
0 5 9 ** *** Others.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5 a ** 101 The pick-up position has deviated greatly in X direction.
0 5 a ** 102 The pick-up position has deviated greatly in Y direction.
0 5 a ** 103 The pick angular skew is big.
0 5 a ** *** Others.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5 b ** 001 The pick-up position has deviated greatly.
0 5 b ** 002 The pick-up position has deviated greatly in X direction.
0 5 b ** 003 The pick-up position has deviated greatly in Y direction.
0 5 b ** 004 The pick angular skew is big.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5 e ** 001 Others.
0 5 e ** 002 Others.
0 5 e ** 003 Others.
0 5 e ** 004 Others.
0 5 e ** 005 Others.
0 5 e ** 006 Others.
0 5 e ** 007 Others.
0 5 e ** 008 Others.
0 5 e ** *** Others.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
1 5 * ** *** Others.
(Cause) Self-Diagnostics Error Message.
(Remedy) Contact our service personnel for details.
3.4 Component Recognition Errors
4-200709-001
3.5 PEC Recognition Errors
Z A B CC DDD
Detailed Classification: Detailed Classification
Small Classification: Small Classification
Middle Classification
0: PEC Recognition (Mark Missing)
1: PEC Recognition (Coarse Recognition Error)
2: PEC Recognition (Detailed Recognition Error)
3: PEC Recognition (Shape Error)
8: PEC Recognition (Inspection Error)
E: PEC Recognition (Other Errors)
Large Classification (6)
Classification Criteria
Notice
When an error ID other than the described ones is issued, contact
our service personnel for some advice.
Table 4D8
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 6 0 ** 001 Speciedmarknotfoundinrecognizablerange.
0 6 0 ** *** Others.
0 6 1 ** 001 Specied
marknotfoundinrecognizablerange.
0 6 1 ** *** Others.
0 6 2 ** 001 Specied
marknotfoundinrecognizablerange.
(Cause)
TheducialmarkandtheducialmarkcoordinatesXandYor
the mark data are not suitable.
(Remedy)
Follow the steps below to reset the machine to the normal
condition.
(1)
When the [RETURN] button is pressed, the "Manual Alignment Operation
Guide" window appears.
(2)
When the [Mnl Align] button is pressed, the following recognition window
appears.
Actual Fiducial Mark
Crosshair
Template of Fiducial Mark
Fig. 4D2 Sample Display of Recognition Window
(Continued to the next page.)
3.5 PEC Recognition Errors
4-210802-002
Recognition Error ID Description of Recognition Error, Cause, and Remedy
(3) Manipulate the image movement buttons on the window until the actual
ducialmarkcomesovertotheducialmarktemplatelocatedatthe
center of the crosshair.
Enlarge the view for accurate alignment operation. Otherwise,
components may not placed accurately.
(4) Aftertheactualdu
cialmarkhascomeovertotheducialmarktemplate,
pressthepositiondenitionbutton.The"AUTOOPN."windowresumes.
(5) When the [START] button on the operation panel is pressed, the
automatic operation restarts.
Notice
When the [x] button is pressed to exit from the recognition window,
the "Manual Alignment Operation Guide" window resumes.

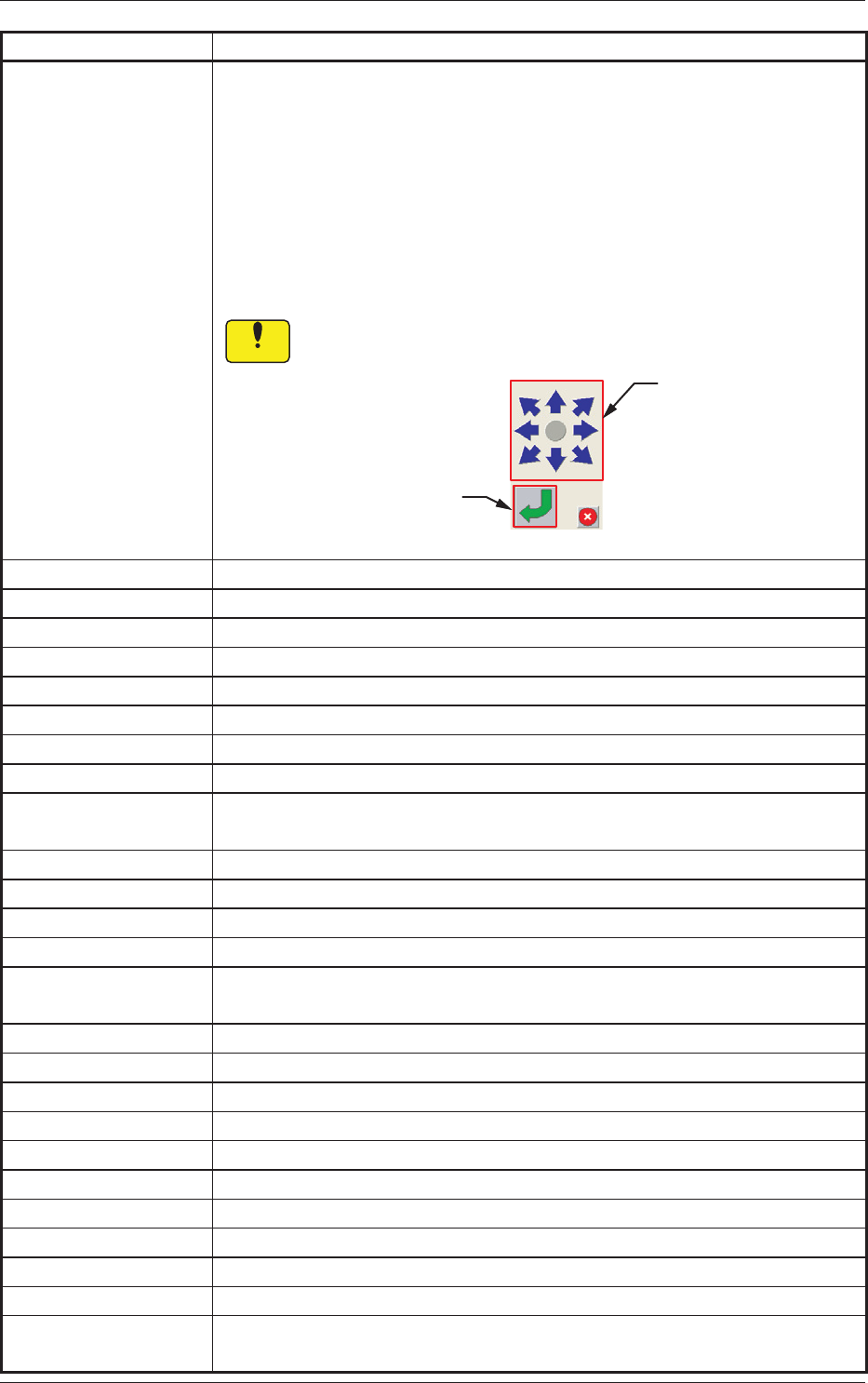

Image Movement
Buttons
Position Definition
Button
Fig. 4D3 Operation Buttons
0 6 2 ** 1** Edge not detected.
0 6 2 ** 201 Edge not detected.
0 6 2 ** 401
0 6 2 ** 402
0 6 2 ** 403
0 6 2 ** 404
0 6 2 ** 405
0 6 2 ** *** Others.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6 3 ** 101 Specied
markisnotcircle.
0 6 3 ** 102 Speciedmarkisnot
square.
0 6 3 ** 201 Edge not detected.
0 6 3 ** *** Others.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6 8 ** 101 Speciedmarknot
foundinrecognizablerange.
0 6 8 ** 102 Speciedmark
notfoundinrecognizablerange.
0 6 8 ** 201 Extensive error in similitude of mark size
0 6 8 ** 202 Extensive error in similitude of mark size
0 6 8 ** 301
Extensive error in similitude of mark shape
0 6 8 ** 302 Extensive error in similitude of mark shape
0 6 8 ** 401 Extensive error in similitude of mark shape
0 6 8 ** 402 Extensive error in similitude of mark shape
0 6 8 ** 501 Specied
mark
not
found
in
recognizable
range.
0 6 8 ** 502 Specied
mark
notfoundinrecognizablerange.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
3.5 PEC Recognition Errors
