1-14 0802-002 2.4 Quarterly Maintenance T able 4A1 1-1
1-130803-003
2.4 Quarterly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
NM1 : MOLYNOC GREASE AP1
Notice
Lubrication must be made on the *-marked items after initial month
and every 3 months for the subsequent use.

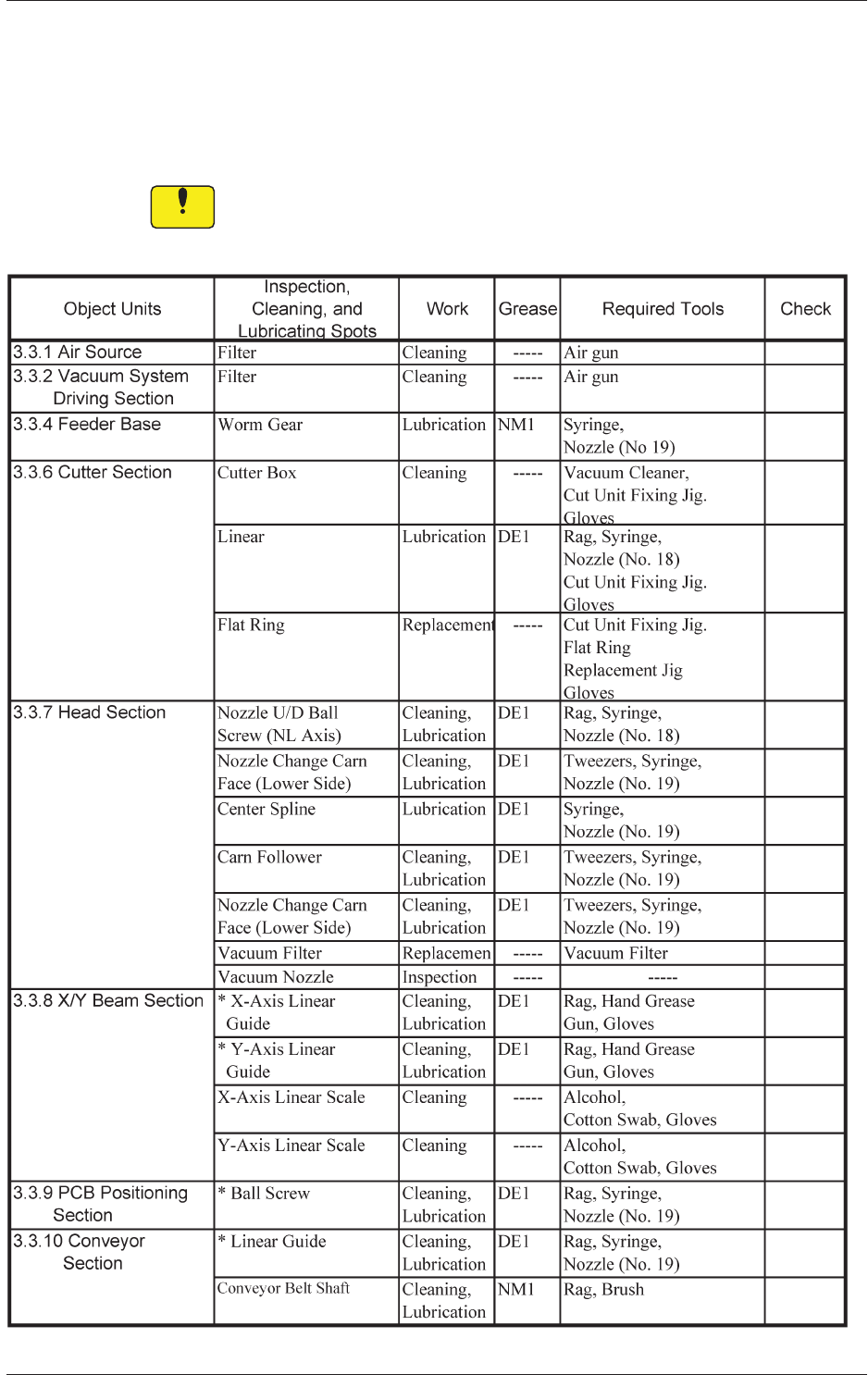

Table 4A11
2.4 Quarterly Maintenance
1-140802-002
2.4 Quarterly Maintenance

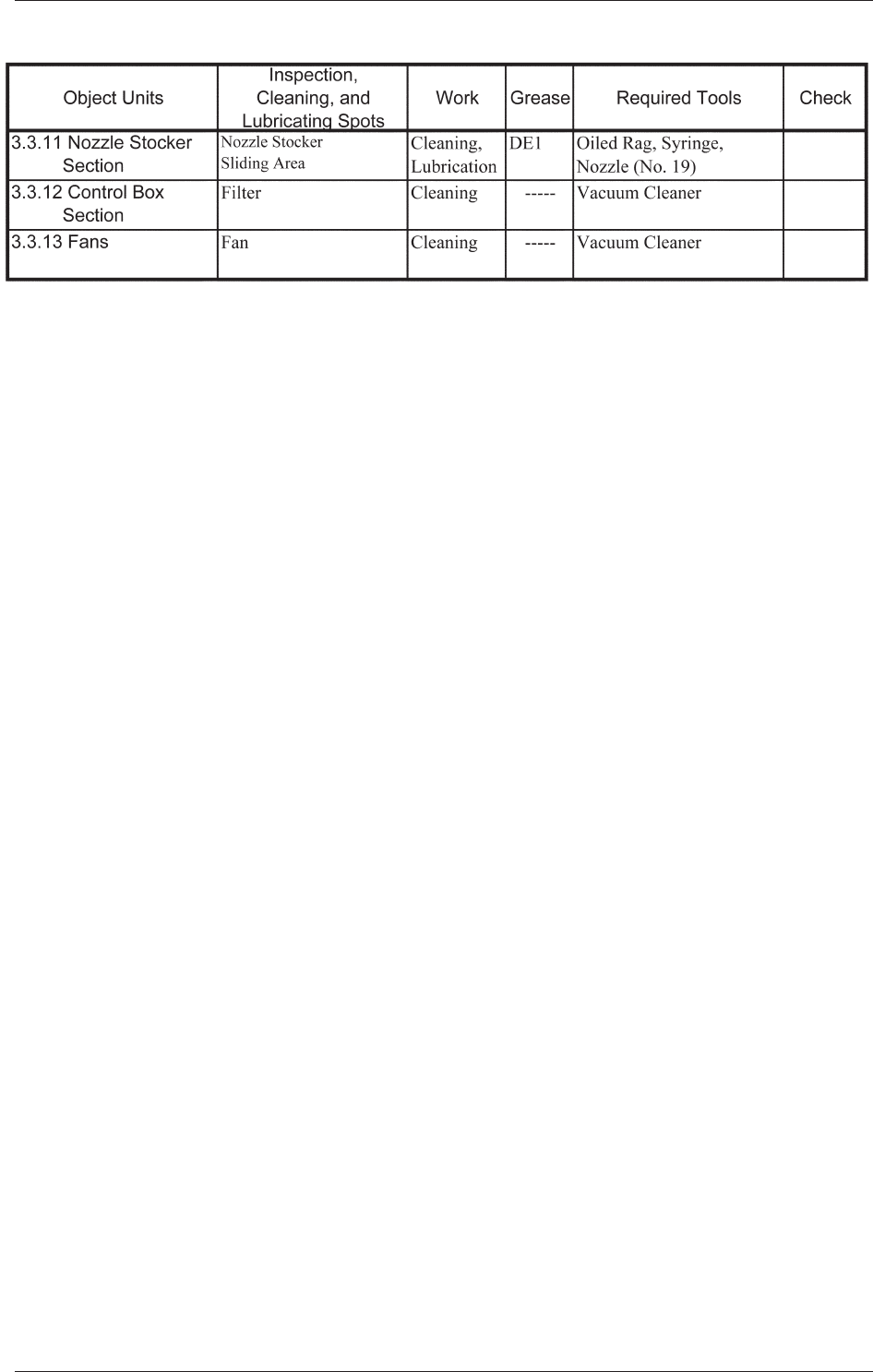

Table 4A11-1
1-150709-001
2.5 Half-Yearly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
KS64 : Silicon Grease KS64
Table 4A12
Object Units
Inspection,
Cleaning, and
Lubricating Spots
Work Grease Required Tools Check
3.3.8 X/Y Beam Section
X-Axis Cable
Sideface
Cleaning,
Lubrication
KS64 Oiled Rag, Brush
X-Axis Cable
Fixing Places
Inspection ----- -----
Y-Axis Cable
Sideface
Cleaning,
Lubrication
KS64 Oiled Rag, Brush
Y-Axis Cable
Fixing Places
Inspection ----- -----
3.3.9 PCB Positioning
Section
Ball Screw Splines Cleaning,
Lubrication
DE1 Oiled Rag,
Hand Grease Gun,
Type H
2.6 Yearly Maintenance
Table 4A13
Object Units
Inspection,
Cleaning, and
Lubricating Spots
Work Grease Required Tools Check
3.3.6 Cutter Section
Fluorine Sheet,
Urethane Clamp
Replacement ----- Screwdriver,
Cut Unit Fixing Jig
2.5 Half-Yearly Maintenance
