3. Machine Information
3. Machine Information
3.1 "Machine Information" Window
This window shows various kinds of information while the machine is
running.
Note
The machine does not stop running when this window becomes active.
[2]
[3]
[1]
[4]

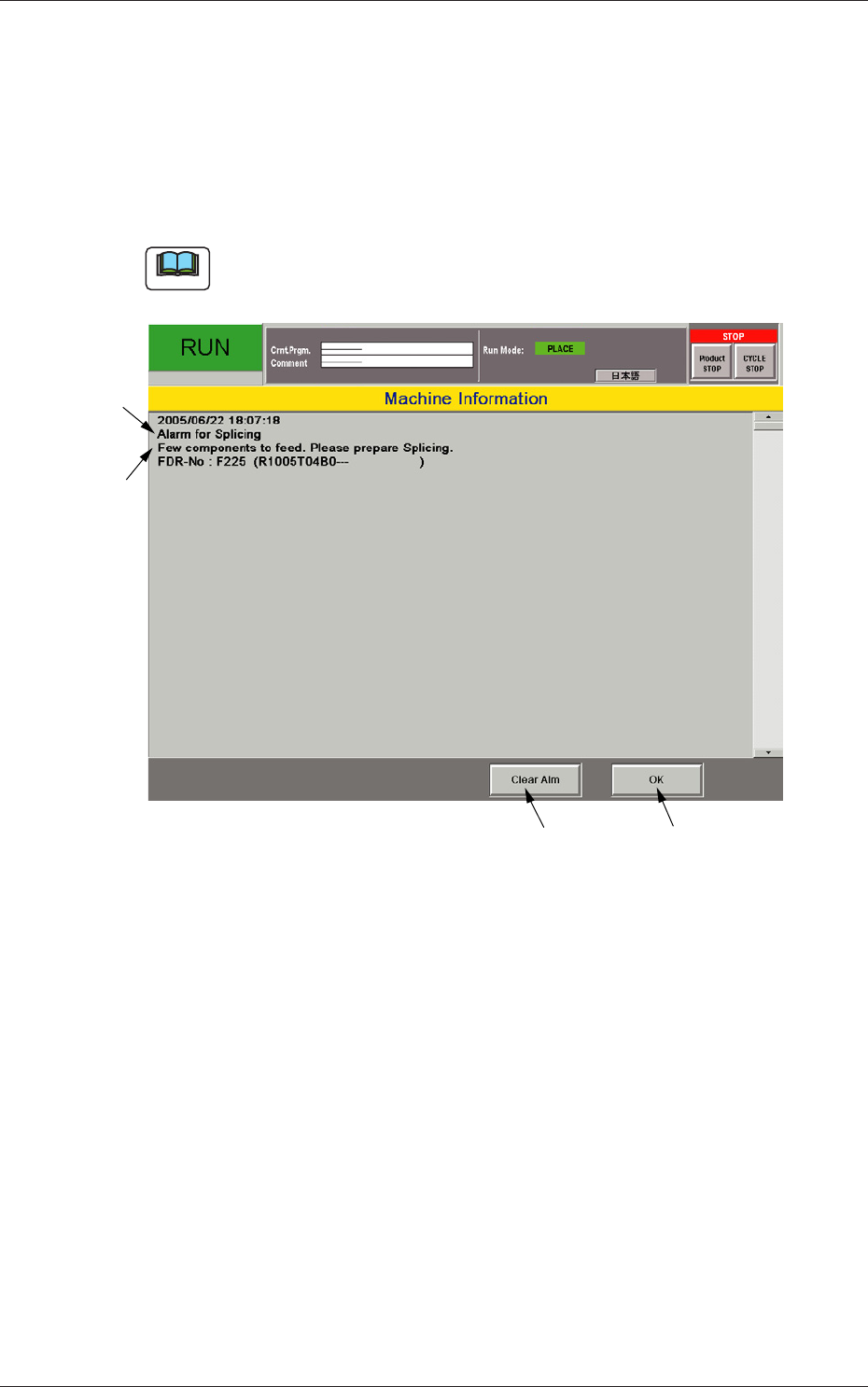

Fig. 4B3
[1] Display Field A
Displayed is the outline of the machine information.
[2] Display Field B
Displayed is the detailed machine information.
[3] [OK] Button
When pressed, this button closes the "Machine Information" window.
[4] [Clear Alarm] Button
When pressed, this button cancels an alarm (sound) only
.
2-110709-001
3.2 List of Machine Information
3.2 List of Machine Information
Table 4B4
Machine
Information Codes
Display Field A (Scope of Machine Information)
Display Field B (Details of Machine Information)
800101 Auto Noz. Bypass Started
Nozzle down error(L)
800102 Auto Noz. Bypass Started
Nozzle down error(H)
800103 Auto Noz. Bypass Started
Handling err-cont:
800104 Auto Noz. Bypass Started
Decreasing of comp.handling rate
800105 Auto Noz. Bypass Started
Selected nozzle position error
800106 Auto Noz. Bypass Started
Nozzle Posture Detection
800201 Auto Head Bypass Started
Communication error.
800202 Auto Head Bypass Started
Head origin error.
800203 Auto Head Bypass Started
Overtime
headoriginerror.Setct:3(xedvalue)
800204 Auto Head Bypass Started
Unselected
nozzledrop.Setct:2(xedvalue)
800205 Auto Head Bypass Started
CAM position.
800206 Auto Head Bypass Started
Origin Return Action.
800207 Auto Head Bypass Started
Motor Out of Control
800208
Auto Head Bypass Started
Current OverLoad.
800209 Auto Head Bypass Started
Motor not connected.
800210 Auto Head Bypass Started
Solenoid not connected.
800211 Auto Head Bypass Started
Power line warning.
800212 Auto Head Bypass Started
Power line error.
800213 Auto Head Bypass Started
Driver temperature warning.
800214 Auto Head Bypass Started
Driver temperature error.
2-120709-001
3.2 List of Machine Information
Machine
Information Codes
Display Field A (Scope of Machine Information)
Display Field B (Details of Machine Information)
800215 Auto Head Bypass Started
EEPROM error.
800216 Auto Head Bypass Started
Sensor error.
800217 Auto Head Bypass Started
Head cam position return action not complete.(Not CAM ORIGIN position)
800218 Auto Head Bypass Started
Head Driver communication time out.
800219 Auto Head Bypass Started
Nozzle change action not complete.(Not CAM ORIGIN position)
800220 Auto Head Bypass Started
Cam position self-check warning.
800301 Warning: Decreasing of Comp. Hdlg. Rate(For Noz.)
Nozzle message rate :
800302 Warning: Decreasing of Comp. Hdlg. Rate(For Noz.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
800401 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
Feeder message rate :
800402 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
800501 Alternated Tray Magazine Axis
Comp. Missing(sensor)
800502 Alternated Tray Magazine Axis
Comp. Vertical(sensor)
800503 Alternated Tray Magazine Axis
Comp. Missing(recog.)
800504 Alternated Tray Magazine Axis
Comp. Recog. Error
800505 Alternated Tray Magazine Axis
Shortage of component
800506 Alternated Tray Magazine Axis
Start recovery mode.
800507 Alternated Tray Magazine Axis
Comp. Thickness(sensor)
800508 Alternated Tray Magazine Axis
Comp. Pickup Diff.(recog.)
800509 Alternated Tray Magazine Axis
Comp. Reverse(recog.)
800601 Alternated Feeder
Comp. missing (sensor).
800602 Alternated Feeder
Comp. Vertical(sensor)
800603 Alternated Feeder
Comp. Missing(recog.)
