4.7 Replacement Procedure of Vacuum Filters

(2) Insert the lter replacement jig into the hole on the lter holder and pull

it up upward.

Hole on Filter Holder

Jig with pulled-out holder (filters)

Filter Replacement Jig

Fig.4A62

(3) Replace the two vacuum lters on the pulled-out holder with new ones.

(4) Direct the larger hole on the lter holder outward and insert the holder

with the lter replacement jig.

Be sure to push it deep enough until it stops (down to the lowest limit).

Notice

The holder should not interfere with the wirings for valves, etc. In

addition, the wires should not be caught in the upper and lower

areas of the top block.

Filter Fastening Claw

<NG: Insufficient Insertion>

The upper surface of the

filter holder is higher than

that of the filter fastening

claw.

<OK: Sufficient Insertion>

The filter fastening claw is

higher than that of the filter

holder.

Fig. 4A63

1-66

(5) Shake it in the rotational direction and conrm that the it does not

rotate. After that, pull out the lter replacement jig carefully so as not to

pull up the inserted lter together and stay aoat.

(6) Note the following and slide the lter fastener to the right to lock the

lter holder.

•

Conrm

thatthelterfasteningclaw

islocated

attheupper

centerofthelterholder.

•

Conrmthattheballplungerislocked.

Ball Plunger Locked

Slide the filter fastener to the right.

Filter Unlocked Filter Locked

Locking Position of Filter

Fastening Claw

Filter Unlocked Filter Locked

Fig.

4A64

When the lter fastening claw cannot be locked after being slid because

it interferes with the sideface of the lter holder, it can be assumed that

a foreign substance exists in the hole or the lter holder is not inserted

sufciently far into the hole.

Check the lter holder that has interfered with the sideface.

If a foreign

substance exists in the hole, clean the lter holder to remove

the substance.

After the cleaning is completed and no foreign substance is found in the

hole, starting with Step (4).

Notice

Unlessthelterholderissetcorrectlyinplace,apickuperrorwill

occurorthelterwillcomeoffandcauseaninterferencewitha

head.

The head may also be damaged.

4.7 Replacement Procedure of Vacuum Filters

0709-001

1-67

0802-002

5. Consumables and Important Servicing Parts

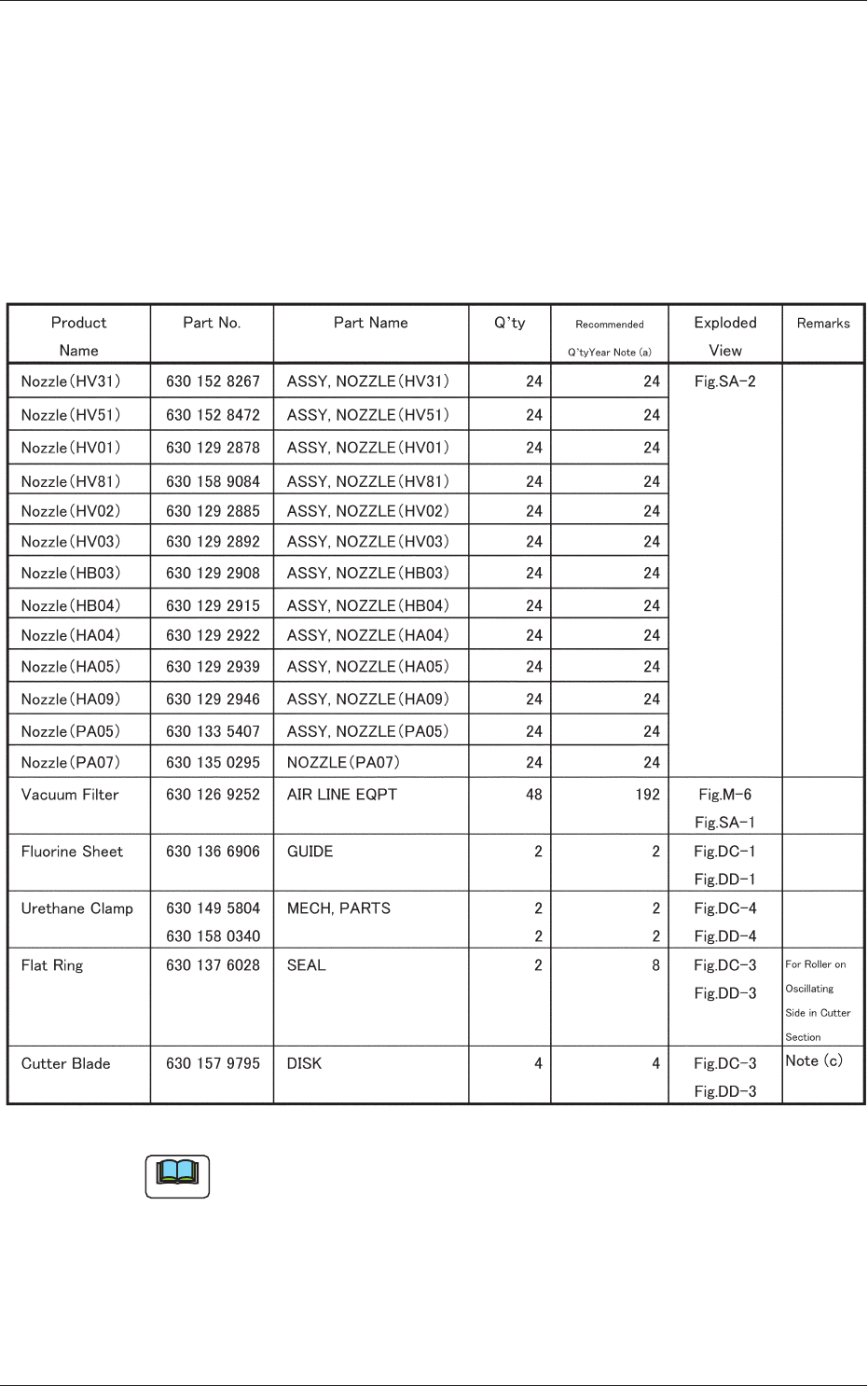

5.1 List of Consumables

Listed below are the parts that may be consumed within one year.

Consult our marketing department or sales agency whenever you need to

purchase these parts.

Table 4A14

Note

(a) The numbers entitled "Recommended Q'ty/Year" indicate the

referential values.

(b) Refer to "3. Maintenance Spots" and "4. Maintenance Method" for the

replacement procedures of these parts.

service personnel for detailed information.
