1-57 (4) Remove two screws and detach the belt cover . Belt Cover Screw Screw Fig 4A54-2 (5) Remove four screws and detach the cover . Screws Covers Fig 4A54-3 (6) Move the cutter unit to the right hand side. Cutter Unit…

1-56

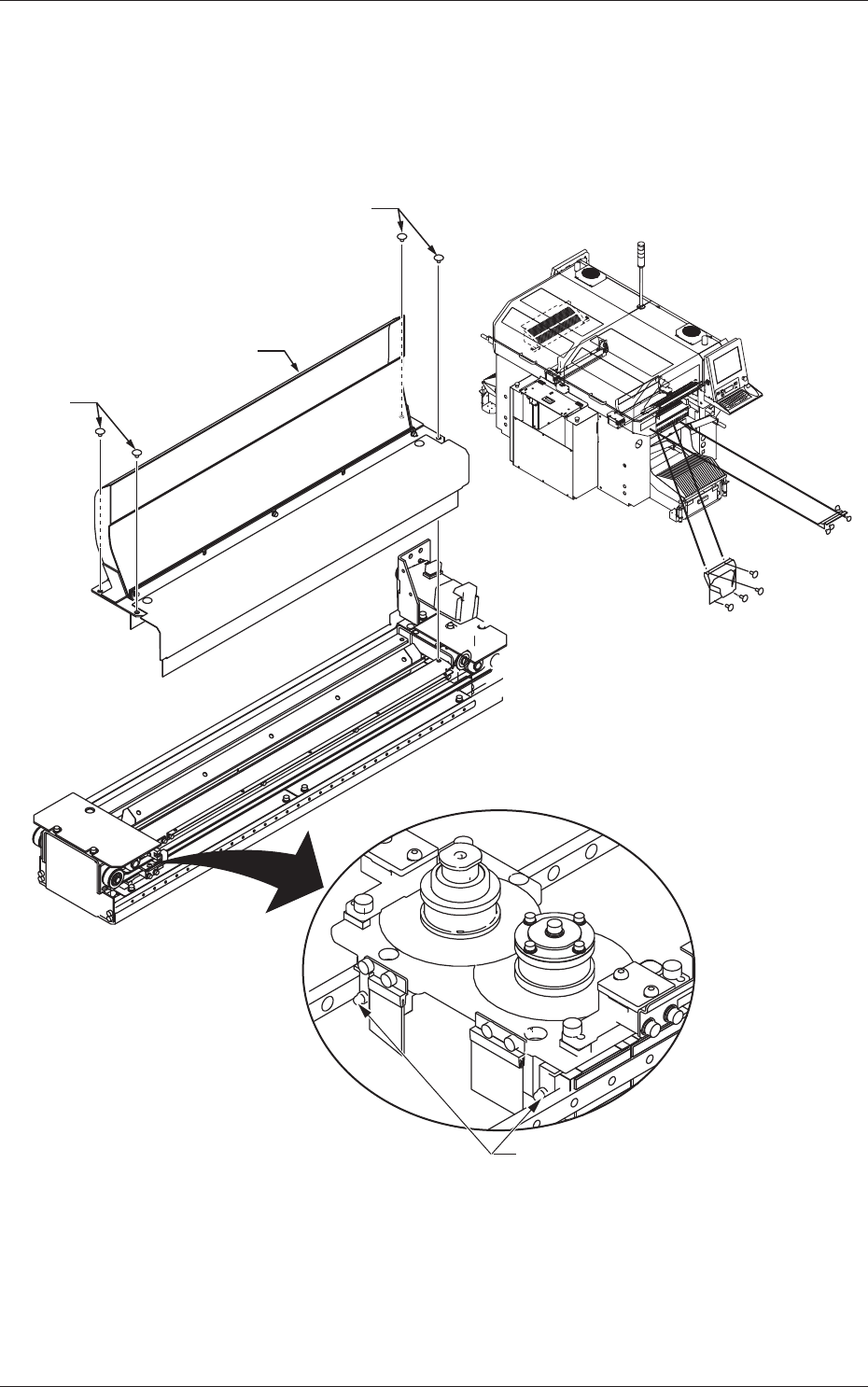

Lubricating Procedure

(1) Detach the

upper cover.

(2) Detach the lower cover.

(3) Remove four screws and detach the tape guide.

Oil Filler Port

(Two locations per cutter unit)

Tape Guid

Upper Cover

Lower Cover

Screws

Fig. 4A54-1

4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port

0811-002

1-57

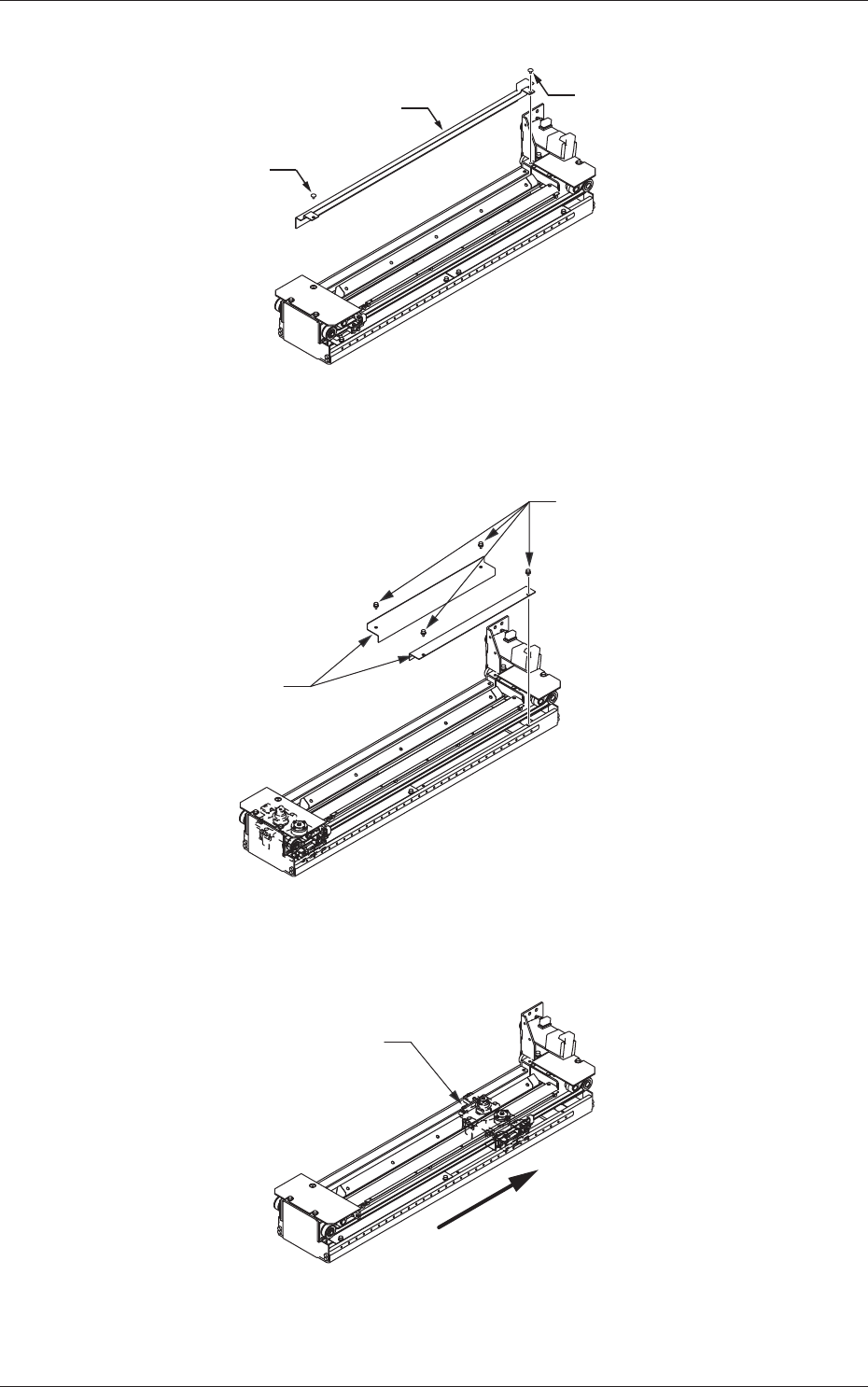

(4) Remove two screws and detach the belt cover.

Belt Cover

Screw

Fig 4A54-2

(5) Remove four screws and detach the cover.

Screws

Covers

Fig 4A54-3

(6) Move the cutter unit to the right hand side.

Cutter Unit

Fig 4A54-4

4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port

0811-002

1-58

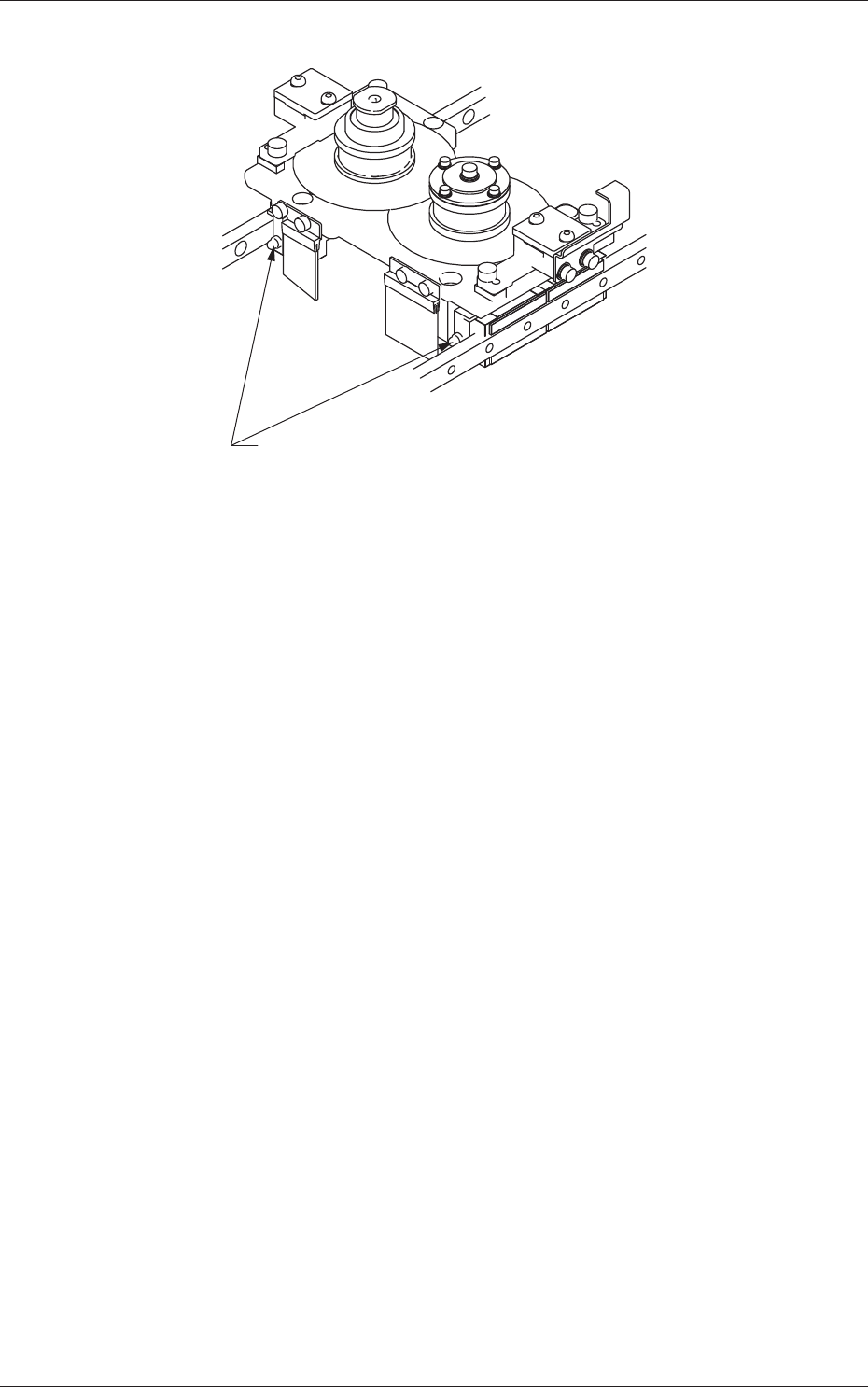

(7) Checktheoilllerportandwipeoldgreaseoutusinganapplicator.

Nipple

Fig 4A54-5

(8) Align the cutter unit with the origin position on the left.

Move it to

the origin position on the left.

(9) Attach the cover and fasten the four set screws.

(10) Attach the tape guid and fasten the four set screws.

(11) Attach the lower cover.

(12) Attach the upper cover.

(13) Lubricate the other cutter units using the same procedure in Steps (1) to (12).

4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port

0811-002
