1-180709-001
3.2 Understanding of Maintenance Items on Each Section
The following describes how to view the description of each  eld (numbered
elds) in "3.3 Inspection, Cleaning, and Lubrication Spots".

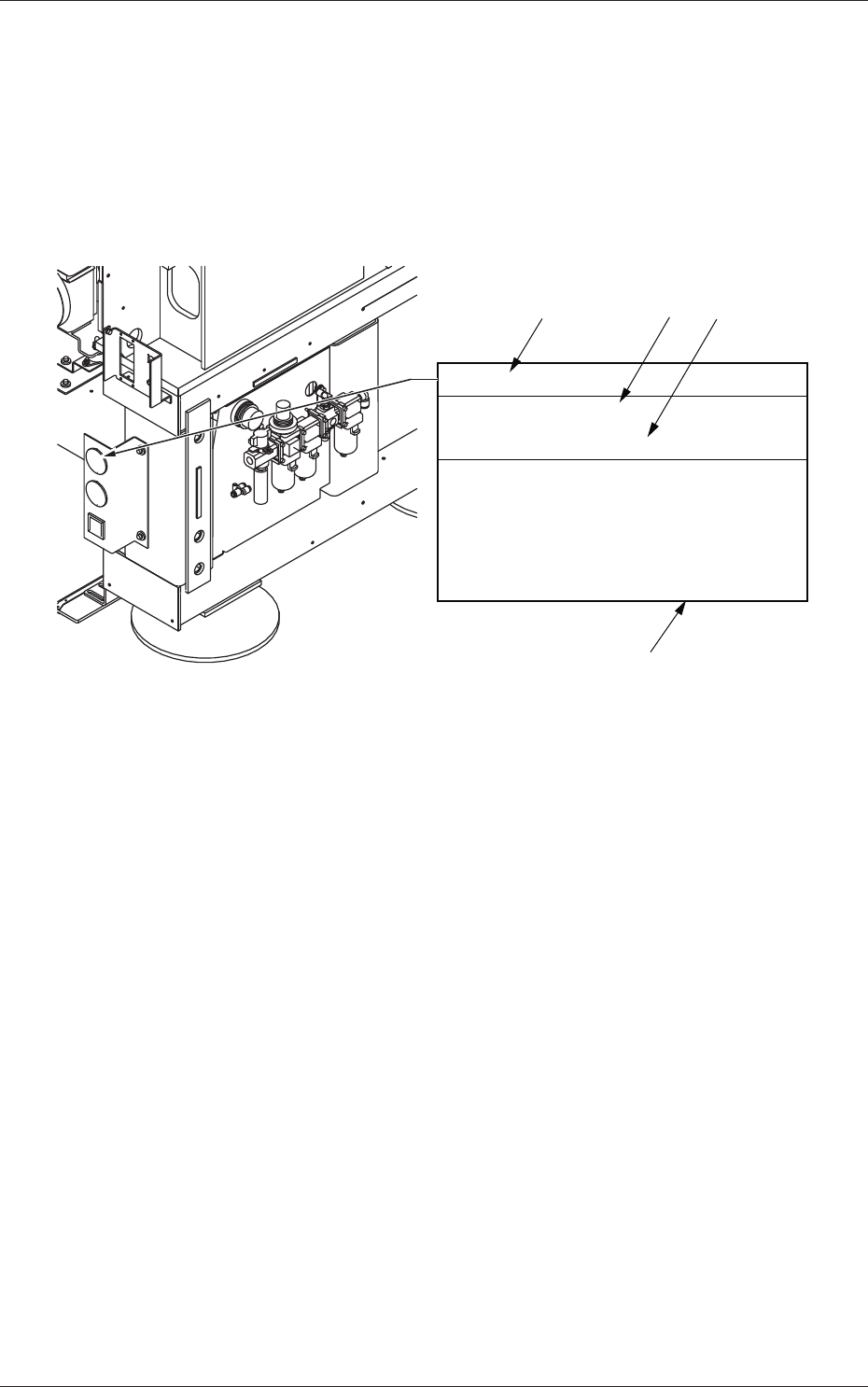

View of Inspection, Cleaning, and Lubrication Spots
(ExampleofIdentication)
Main Air Pressure
Every Day Inspection
Required Time: 1 minute
Set Air Pressure 0.45 MPa (4.6 kgf/cm
2
)
Check to see that the air pressure is
Min. 0.4 MPa (4.1 kgf/cm
2
) while the
machine is running.
If not, adjust the air pressure.
[1]
[2] [4]
[3]
Fig. 4A9
[1]: Maintenance Spot
[2]: Cycle and Contents of Maintenance
[3]: Details of Maintenance
[4]: Approximate Time required for the Maintenance
(excluding the time required to detach or attach the cover, etc.)
3.2 Understanding of Maintenance Items on Each Section
1-190709-001
3.3 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each
individual units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classied
based on frequency.

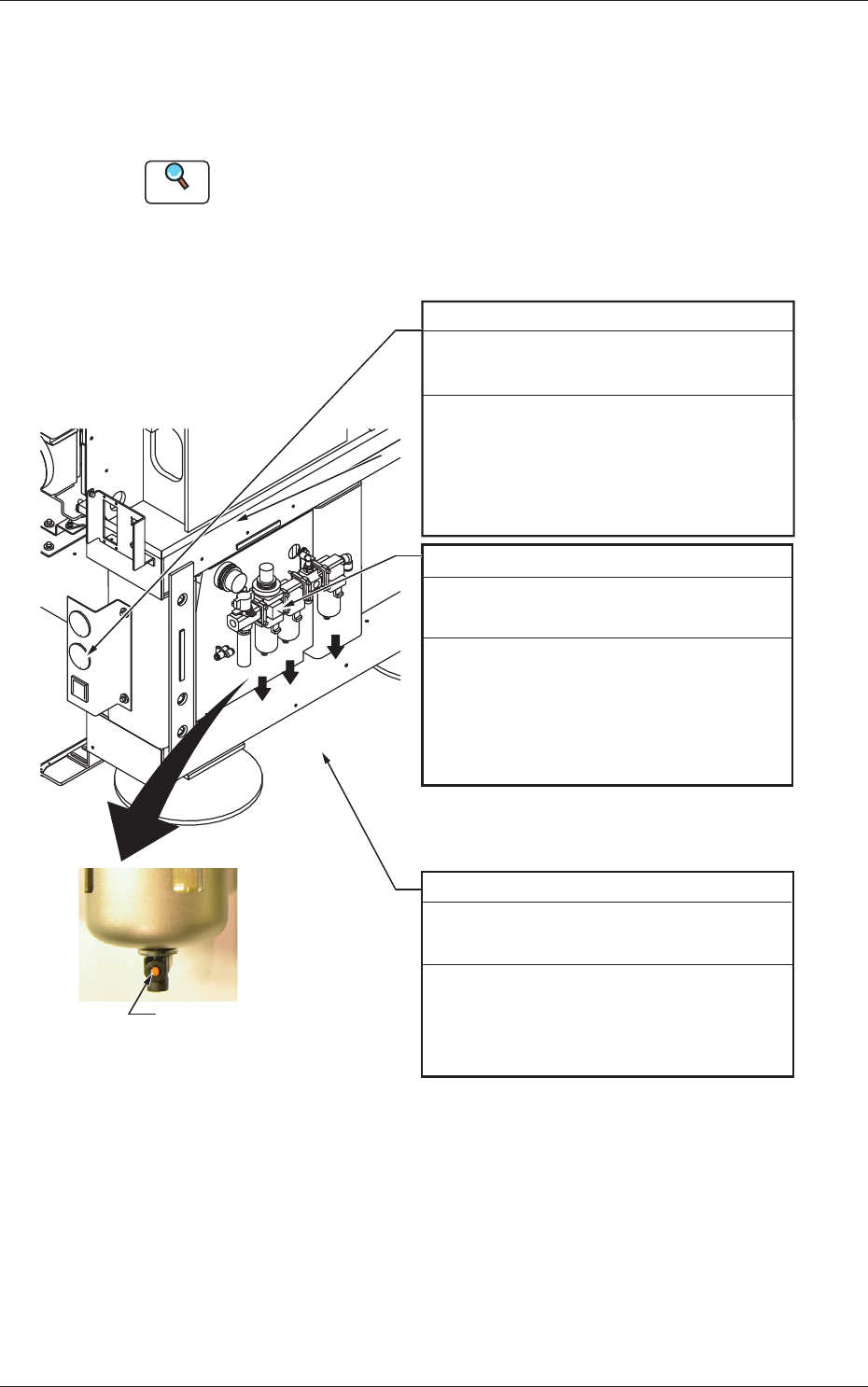

3.3.1 Air Source
Drain
Orange Button
Main Air Pressure
Every Day Inspection
Required Time: 1 minute
Set Air Pressure 0.45 MPa (4.6 kgf/cm
2
)
Check to see that the air pressure is
"Min. 0.4 MPa (4.1 kgf/cm
2
)" while the
machine is running.
If not, adjust the air pressure.
Drain
Every Week Cleaning
Required Time: 5 minutes
Place a container, etc., under the drain and
push the orange button located at the
bottom of each filter case to drain the
Air Blowing Pressure
Every Day Inspection
Required Time: 1 minute
Check to see that the pressure gauge reads
the initial setting (0.05 MPa (0.5 kgf/cm
2
)).
Do not change the pressure unless
necessary. The pressure is factory-adjusted
upon shipment of the machine.
Fig. 4A10
3.3 Inspection, Cleaning, and Lubrication Spots
1-200709-001

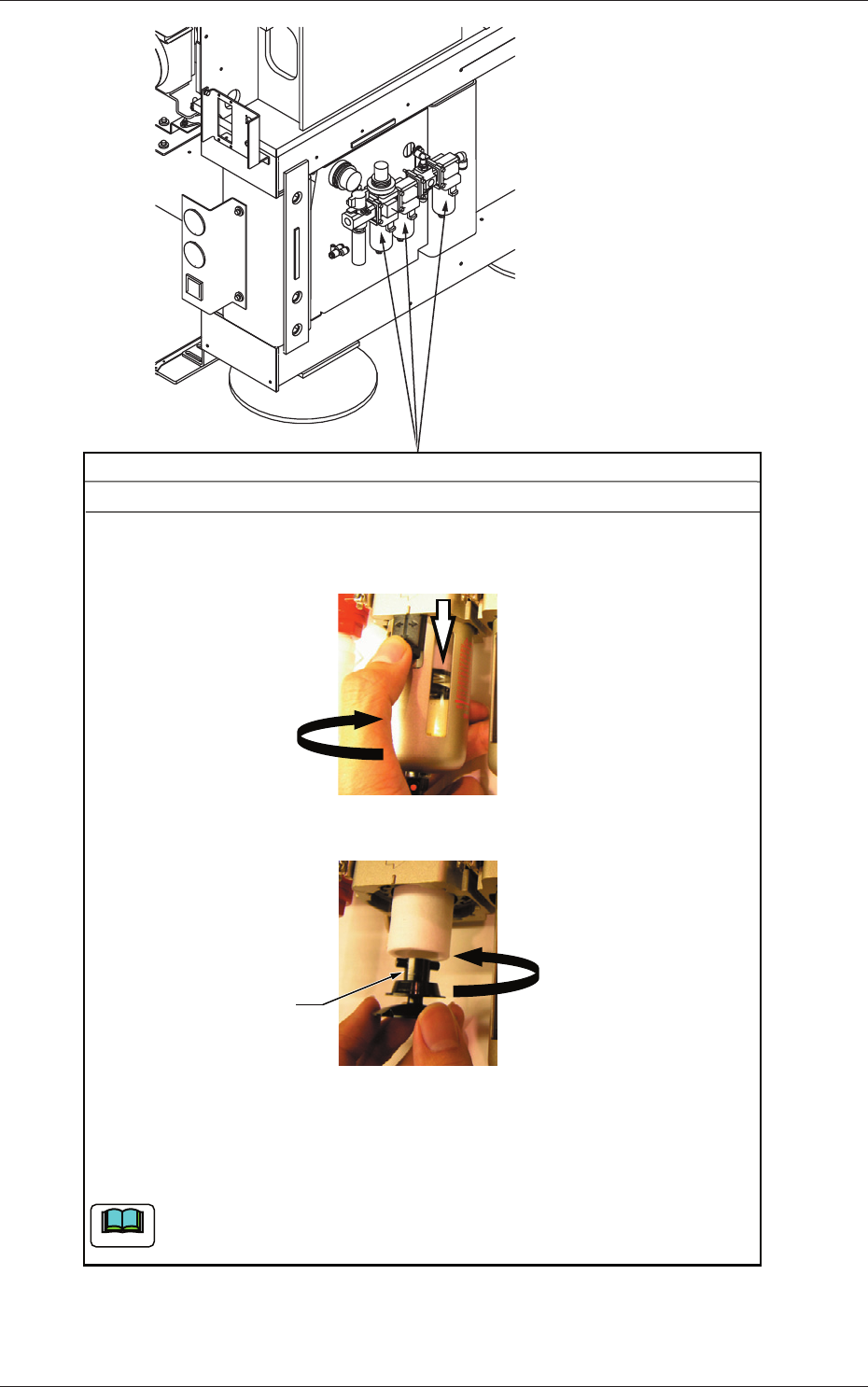

Filter
Every 3 Months Cleaning
(1) Detach the air filter.
While keeping the black part of the cover being slid down, rotate it
one-fourth.
(2) While rotating the filter holder counterclockwise, pull it out.
(3) Pull out the filter and blow air to it for cleaning.
(4) Insert the filter back in place and turn the filter holder clockwise to attach.
(5) Attach the filter cover.
When the filter has become defective, replace it with a new one.
Filter Holder
Required Time: 5 minutes
Note
Fig. 4A11
3.3 Inspection, Cleaning, and Lubrication Spots
