1-52
0709-001
4.4 Procedure of Flat Ring Replacement
Time of Replacement
It is recommended that they should be replaced every 3 months (approx.).
Replacement Procedure
Procedure
(1) Zero the cutter.
Reference
Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for
the zeroing operation of the cutter.
(2) Move down the feeder base and detach the bank feeder change
cart.
(3) Turn off the power to the machine.
(4) Open the cover.
(5) Detach the transparent cover (origin and motor sides) and the
tape guide.
Notice
(a) Carefully detach or attach the tape guide to avoid the
Y-axis linear scale being scratched.
(b) When the cutter is not located at its origin, the tape guide
cannotbedetachedbecausetheuorinesheetiscaught
by the tape clamp.
Tape Guide
Transparent Cover
(Motor Side)
Transparent
Cover
(Origin Side)
Fig. 4A51
4.4 Procedure of Flat Ring Replacement
1-53
4.4 Procedure of Flat Ring Replacement

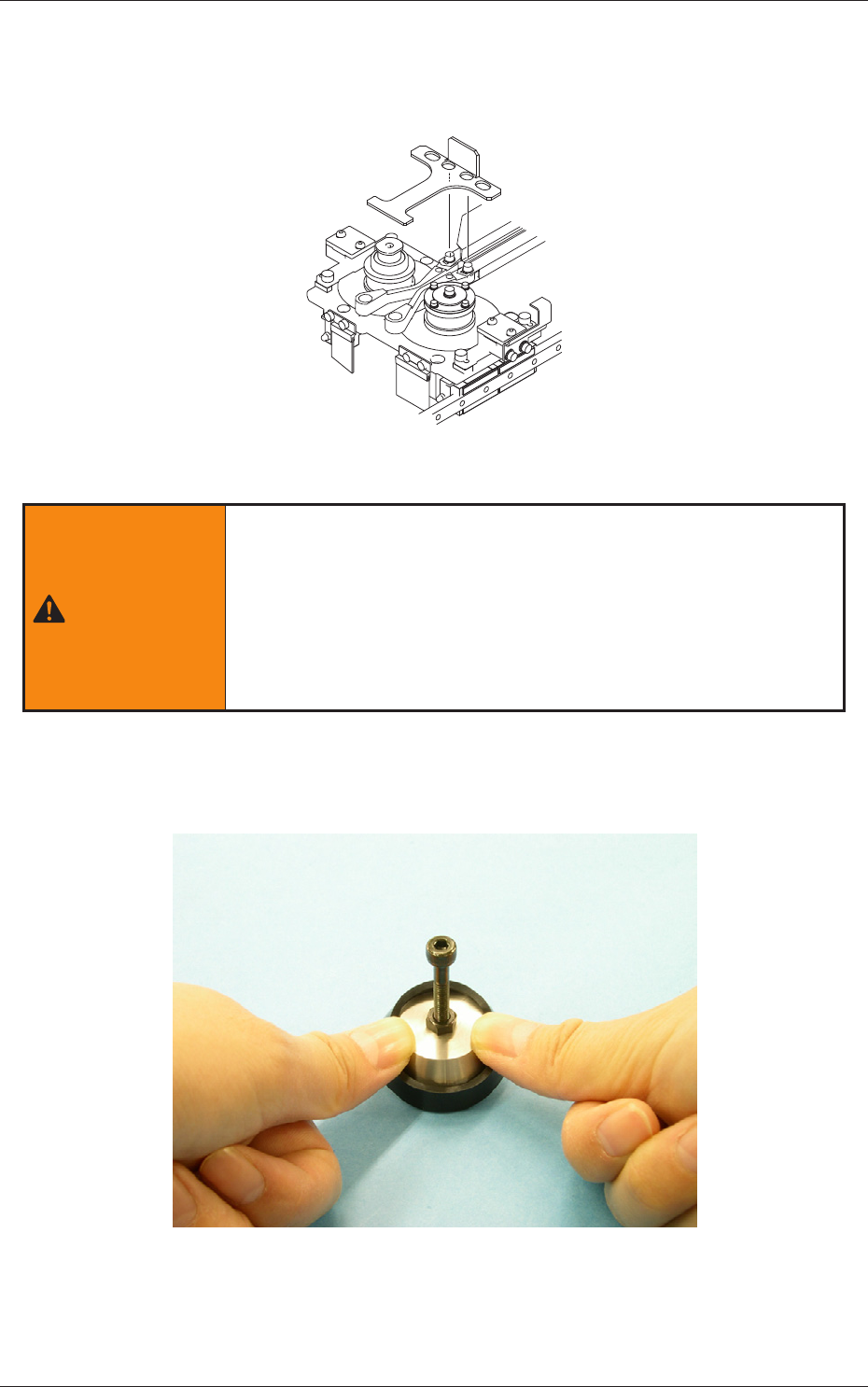

(6) Usetheinnerholesofthecutunitxingjigwiththetapeclamp
being closed and attach the jig with the bent portion being
directed upward.
Fig. 4A52
WARNING
Pay close attention to the cutter blade during the maintenance
work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Besuretoattachthexingjigtothecutunitduringthe
maintenance work for safety purposes.
(7) Cuttheusedatringwitha
cutteronmarketanddetachit.
(8) Attachtheatringtotheatringreplacementjig.
Fig. 4A53
0802-002
1-54
0709-001

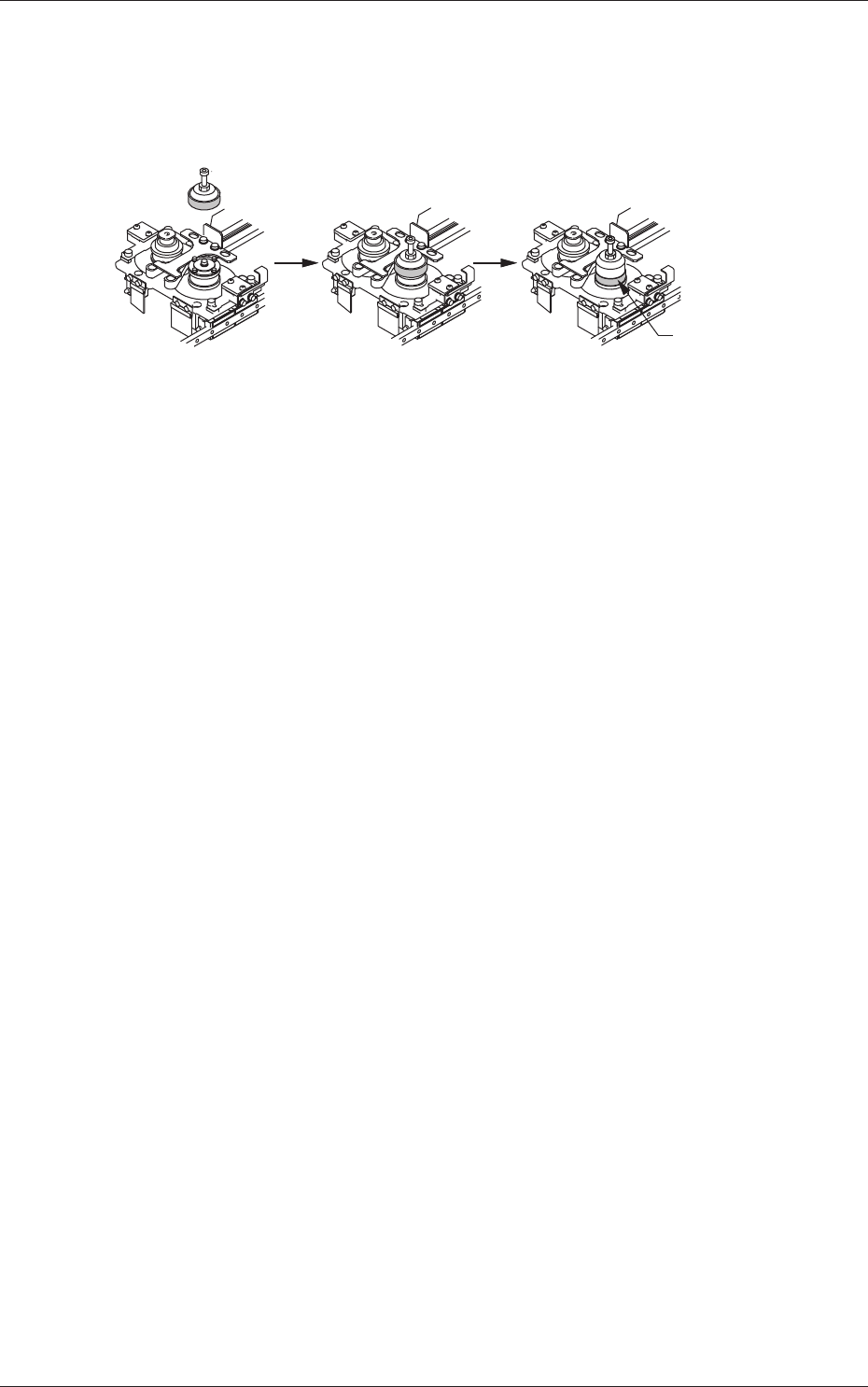

(9) Puttheatringreplacementjigontherollerontheoscillating
side (outside of the machine).
Pushonlytheatringdownwardbyhand
andinsertitintothe
groove of the roller.
Flat Ring
Fig. 4A54
(10)Payattentiontothecutterbladeanddetachtheatring
replacement jig.
(11) Attach the tape guide and the transparent cover.
