1-38 X-Axis Cable Fixing Places (2 places) Every 6 Months Inspection Required T ime: 1 minute Check visually for any abnormality such as cracks. X-Axis Cable Sidefaces Every 6 Months Cleaning and Lubrication (Silicon Gre…
1-37
CAUTION
Your hand might be cut at the edge of the linear guide in the
cleaning operation. Wear gloves.

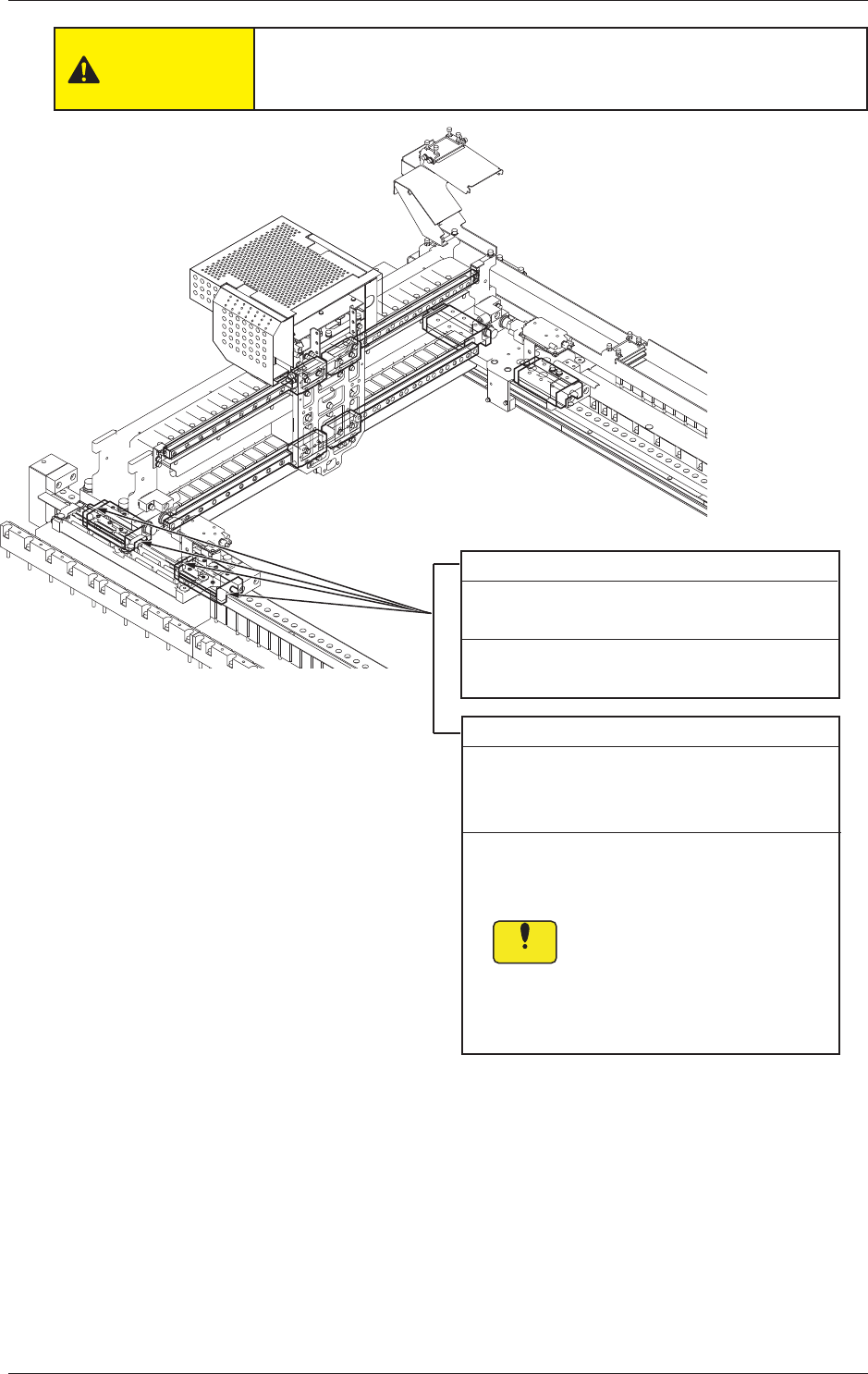

Y-Axis Linear Guides (8 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and supply
new grease to the grease nipples with a hand
grease gun.
Take ample care not to leave
any waste threads after
cleaning.
Grease should be applied every 3 months
after the initial month.
Y-Axis Linear Guides (2 places)
Every Day Inspection
Required Time: 1 minute
Check visually for any dropped foreign
substance, etc.
Notice
Fig. 4A25
3.3 Inspection, Cleaning, and Lubrication Spots
0802-002
1-38
X-Axis Cable Fixing Places (2 places)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
X-Axis Cable Sidefaces
Every 6 Months Cleaning and Lubrication
(Silicon Grease KS64)
Required Time: 3 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
Fig. 4A26
CAUTION
Your hand might be cut at the edge of the linear guide in the
cleaning operation. Wear gloves.
X-Axis Linear Scale
Every 3 Months Cleaning
Required Time: 5 minutes
Clean the X-axis linear scale with a cotton
swab soaked in alcohol.
Fig. 4A27
3.3 Inspection, Cleaning, and Lubrication Spots
0802-002
1-39
Y-Axis Cable Fixing Places (2 places)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
Y-Axis Cable Sidefaces
Every 6 Months Cleaning and Lubrication
(Silicon Grease KS64)
Required Time: 3 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
Fig. 4A28
CAUTION
Your hand might be cut at the edge of the linear guide in the
cleaning operation. Wear gloves.
Y-Axis Linear Scale
Every 3 Months Cleaning
Required Time: 5 minutes
Clean the Y-axis linear scale with a cotton
swab soaked in alcohol.
Fig. 4A29
3.3 Inspection, Cleaning, and Lubrication Spots
0802-002
