. Seite 5
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

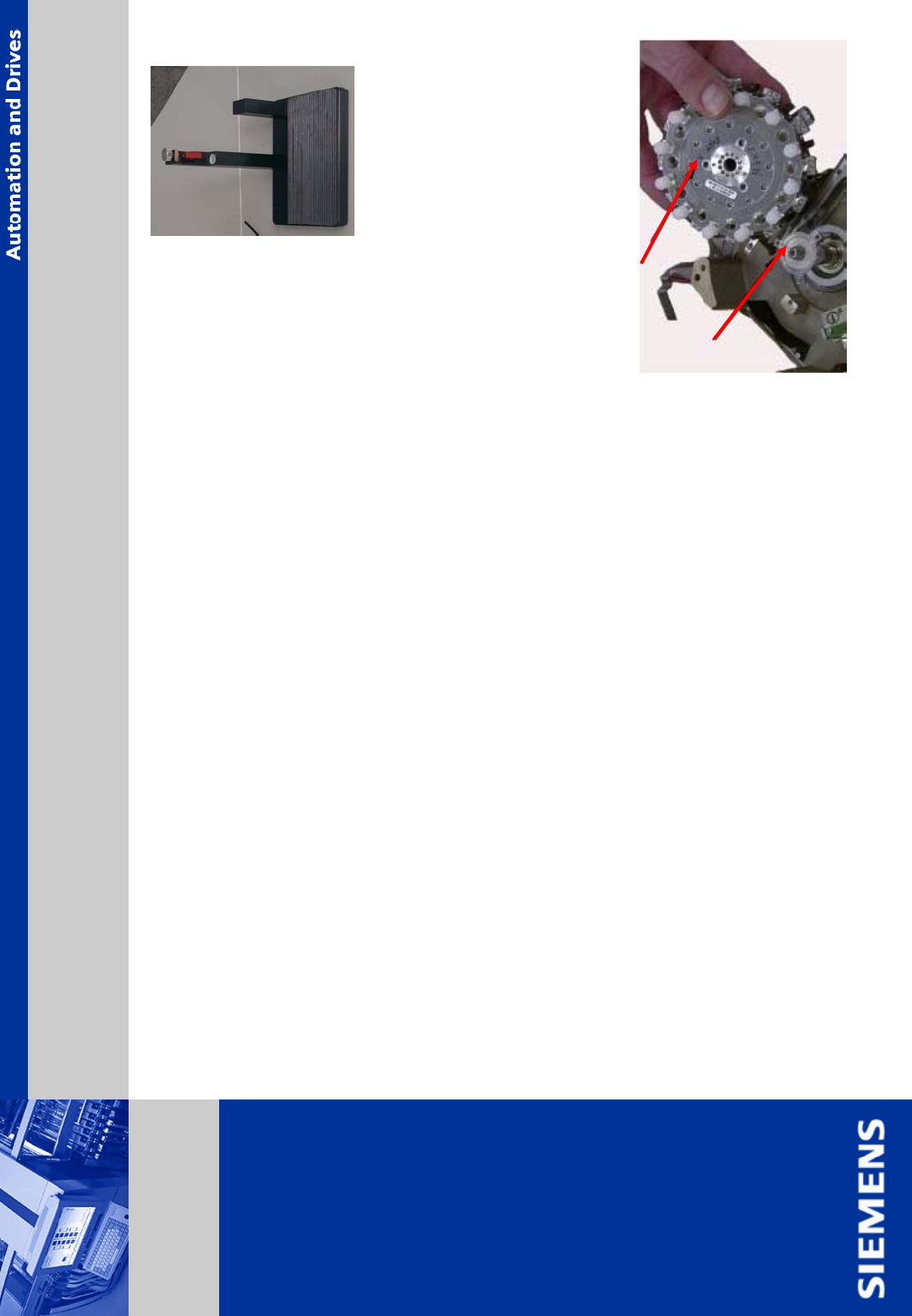

¾ fix the revolver head front part at the head stand,or alternatively,
place the front part into the protective cover (delivered with a new head)
if available.
¾ remove the sleeves and keep them in the container provided for this
purpose
¾ remove the vacuum distributor.
¾ remove the 3 hexagon socket screws M3x8 (allen wrench 2.5 mm) star.
¾ lift the star carefully until you feel slight resistance.
Pull the 3 segments, located below the screw holes outwards.
ATTENTION: when reassembling, fasten the star to motor shaft in the
same position as it was before disassembly. To do this, mark a
screw positions on the star and on the shaft.
Disassembly Z-Axis
. Seite 6
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ check all segments and hose connections. Exchange the star if it is damaged.
¾ set the star down very carefully with valve plungers down.
¾ clean segments as described in maintenance manual.
¾ pull the compressed air hoses from the forced-air tubes.
Disassembly Z-Axis (continuing)
. Seite 7
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ loosen and remove the 3 hexagon socket screws (allen wrench 2,5 mm) of the raceway and
take it out.
¾ check the raceway. Exchange the raceway if it is damaged.
¾ unfasten the angle piece (cable, depending on head type).
¾ loosen and remove the 2 hexagon screws (allen wrench 1,5 mm) used to fasten the driving
plate to the rolling slides.
¾ loosen and remove the 2 hexagon screws (allen wrench 2 mm) of belt fastener.
¾ remove the driver plate.
Disassembly Z-Axis (continuing)
