. Seite 24

SIPLACE

Placement Systems

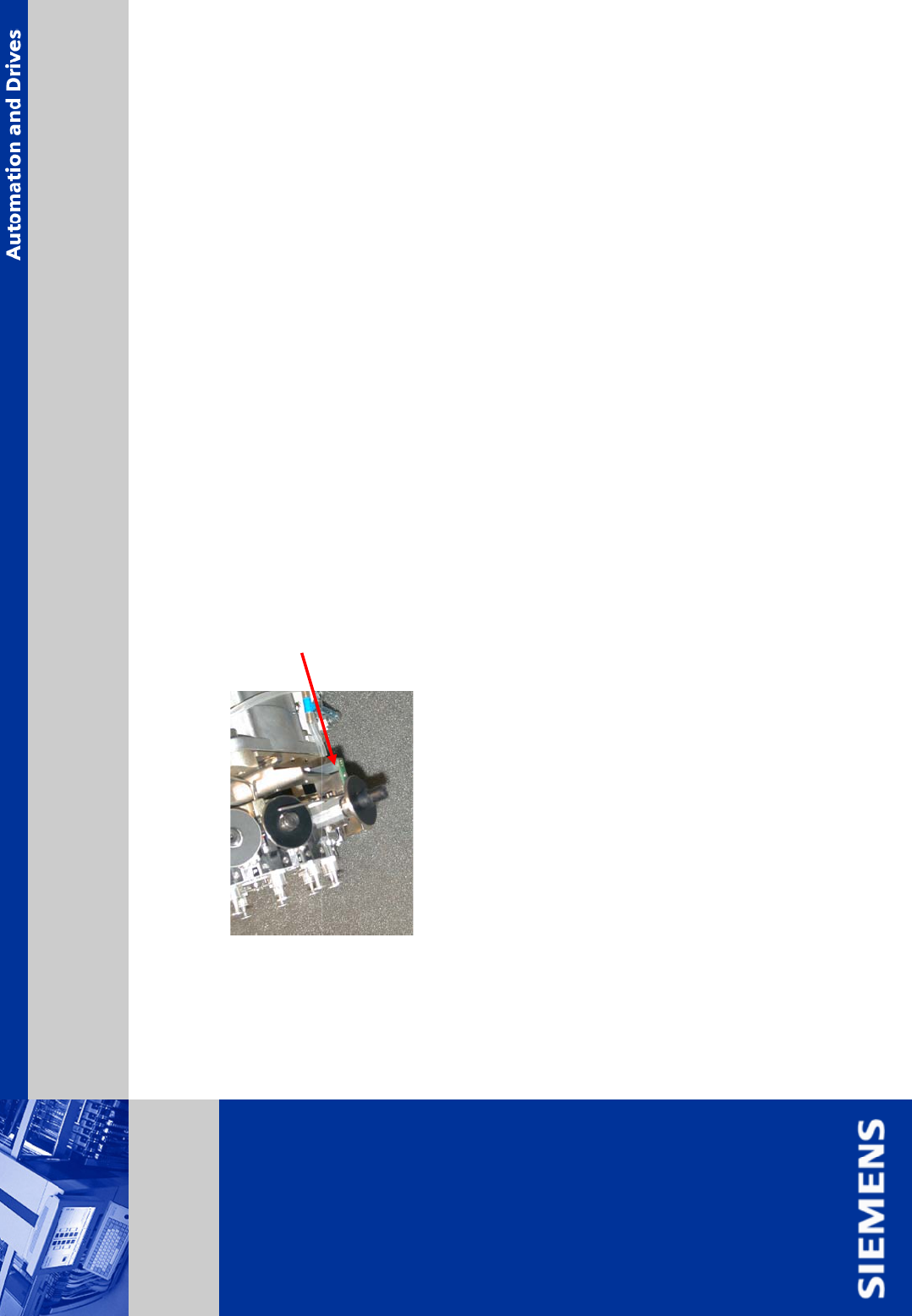

¾ check the bottom light sensor adjustment (1,0 mm).

¾ check the distance between reader head dp-axis and segment sleeve (1.4 - 1.6 mm)

¾ replace the O-rings correctly. move the star a half cycle

¾ check the valve drive adjustment (0,2 mm).

¾ connect the cables to the head board

¾ push compressed air hose back into position.

¾ switch on the placement station, adjust the star zero point correction and perform a C&P head

calibration

Adjustments on Revolving Head

. Seite 25

SIPLACE

Placement Systems

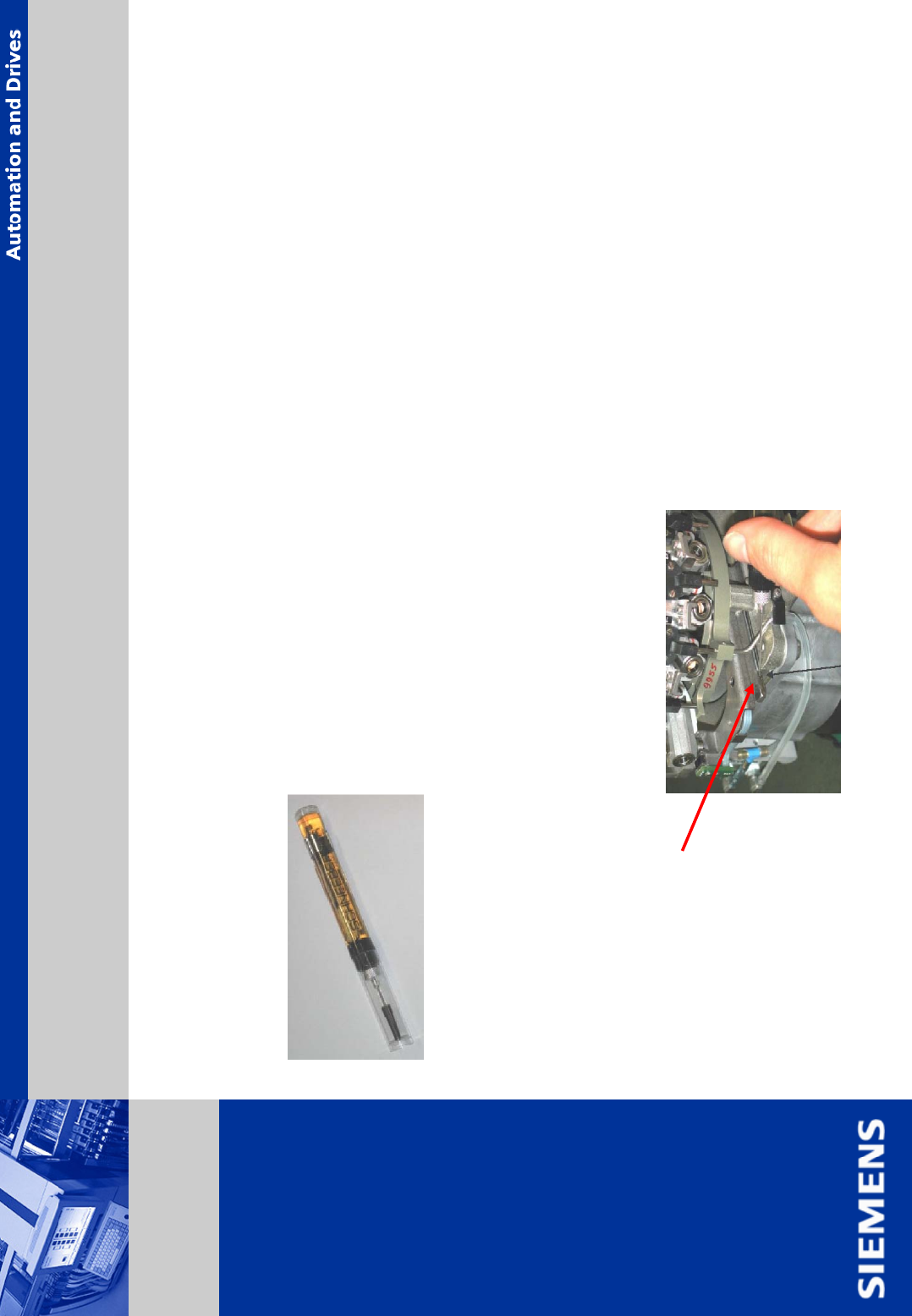

¾ apply 1 drop of oil into the z-axis bearing guide.

¾ do it on a regularly basis, every 4 months, use the special device (00367071-01)

(technical info 10D04091).

¾ move z-axis into the lower position by hand

¾ apply a drop of oil on both sides of z-axis bearing guide.

¾ move z-axis up and down several times to distribute the oil evenly.

Z-Axis Maintenance

. Seite 26

SIPLACE

Placement Systems

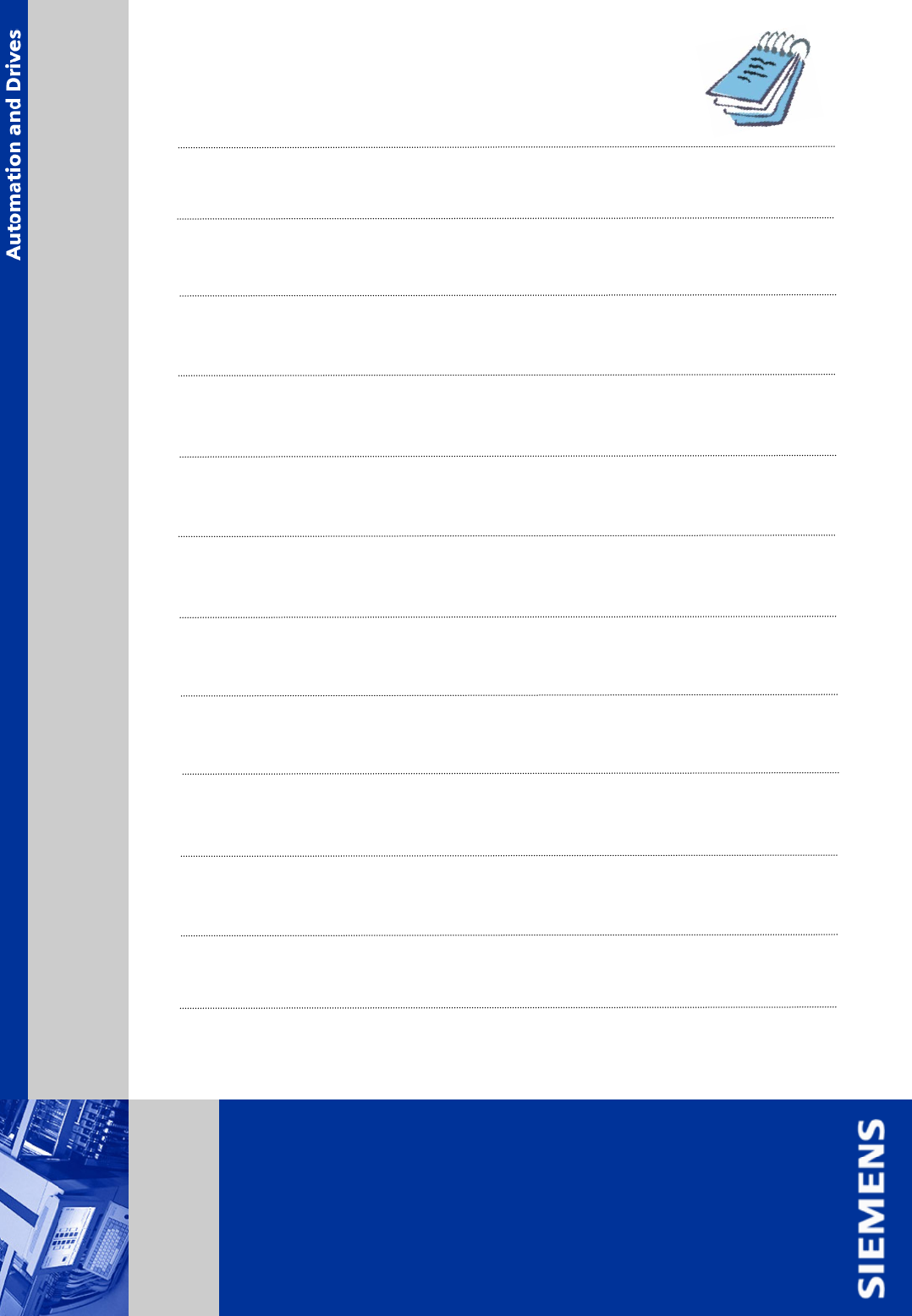

NOTES
