. Seite 12 © Siemens AG . . Änderungen vorbehalten SIPLACE Placement Systems ¾ screw on the intermediate board. ¾ pay specific attention to the screw length. 10 mm 9 mm M 3x5 7 mm Assembly Z-Axis (continuing)
. Seite 11
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ tighten the 4 screws and remove the feeler gauge.
¾ mount the motor and handle.
¾ locate the star motor with 1 screw only at first. Do not forget to mount the
handle.
¾ evenly tighten all screws.

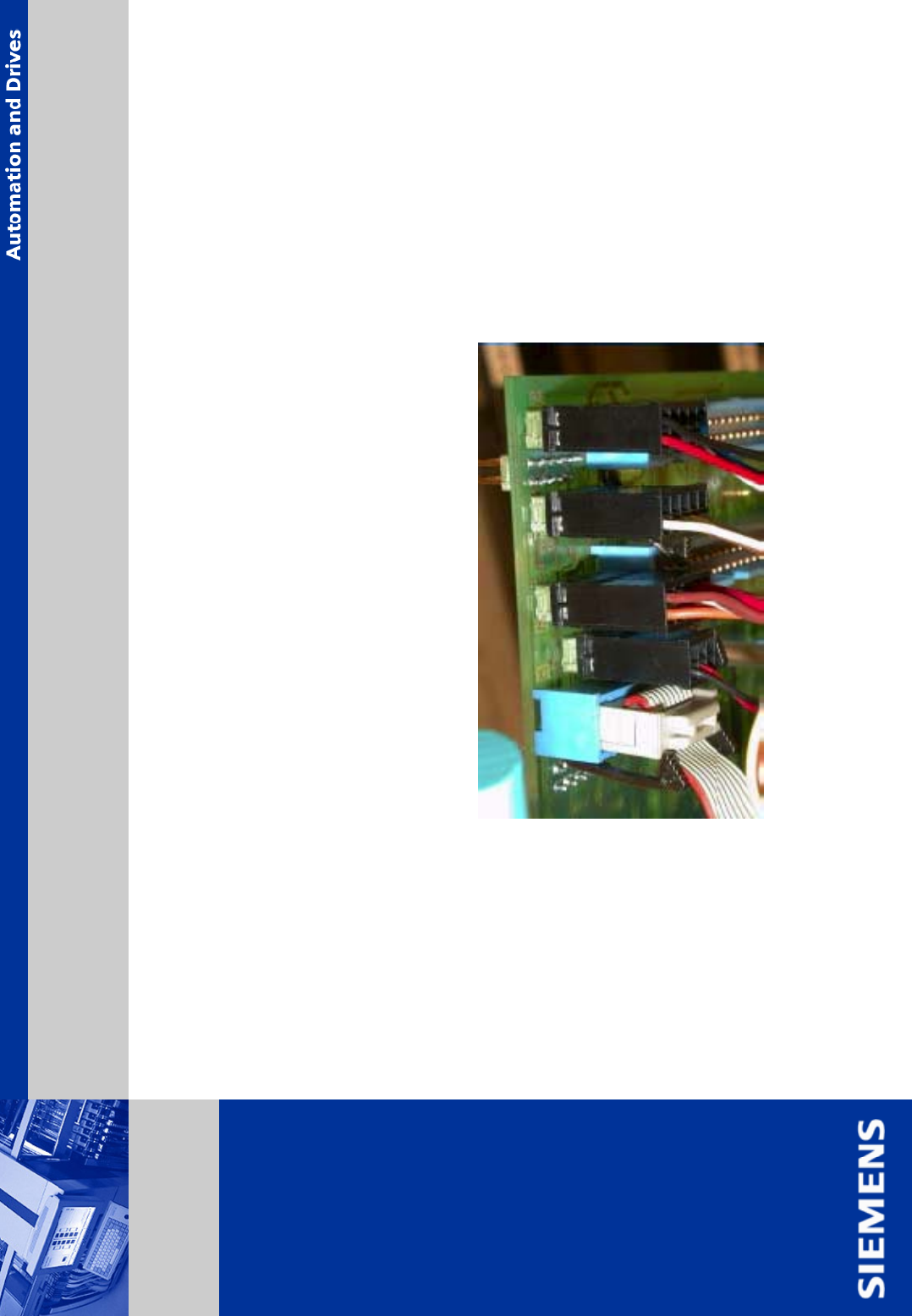

¾ plug the cables back into the intermediate board.
¾ take specific care of the cable and the compressed air hose. If the hose is
discolored, replace it.
Assembly Z-Axis (continuing)
. Seite 12
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ screw on the intermediate board.
¾ pay specific attention to the screw length.
10 mm
9 mm
M 3x5
7 mm
Assembly Z-Axis (continuing)
. Seite 13
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ fix the revolver head front part at the head stand, or alternatively, place the front part into the
protective cover (delivered with a new head) if available.
¾ check whether all parts on the top side are OK.
¾ mount the driving plate loosely.
¾ take care the cable is placed appropriately (looped, not twisted)
Assembly Z-Axis (continuing)
