. Seite 9 © Siemens AG . . Änderungen vorbehalten SIPLACE Placement Systems IC-Mapping for TWIN Head Segment 1 Blue color indica te ‚WARNIN G‘ tolerance exceeded deviation more the 200um in respect to related coordin…
. Seite 8
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
Mapp_11 show the result for
gantry 1 on transport 1.
The distance between 2
mapping positions is 40 mm
The mapping position on right
bottom is the nearest to the
machine zero point
Graphical Result RV Mapping
. Seite 9
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

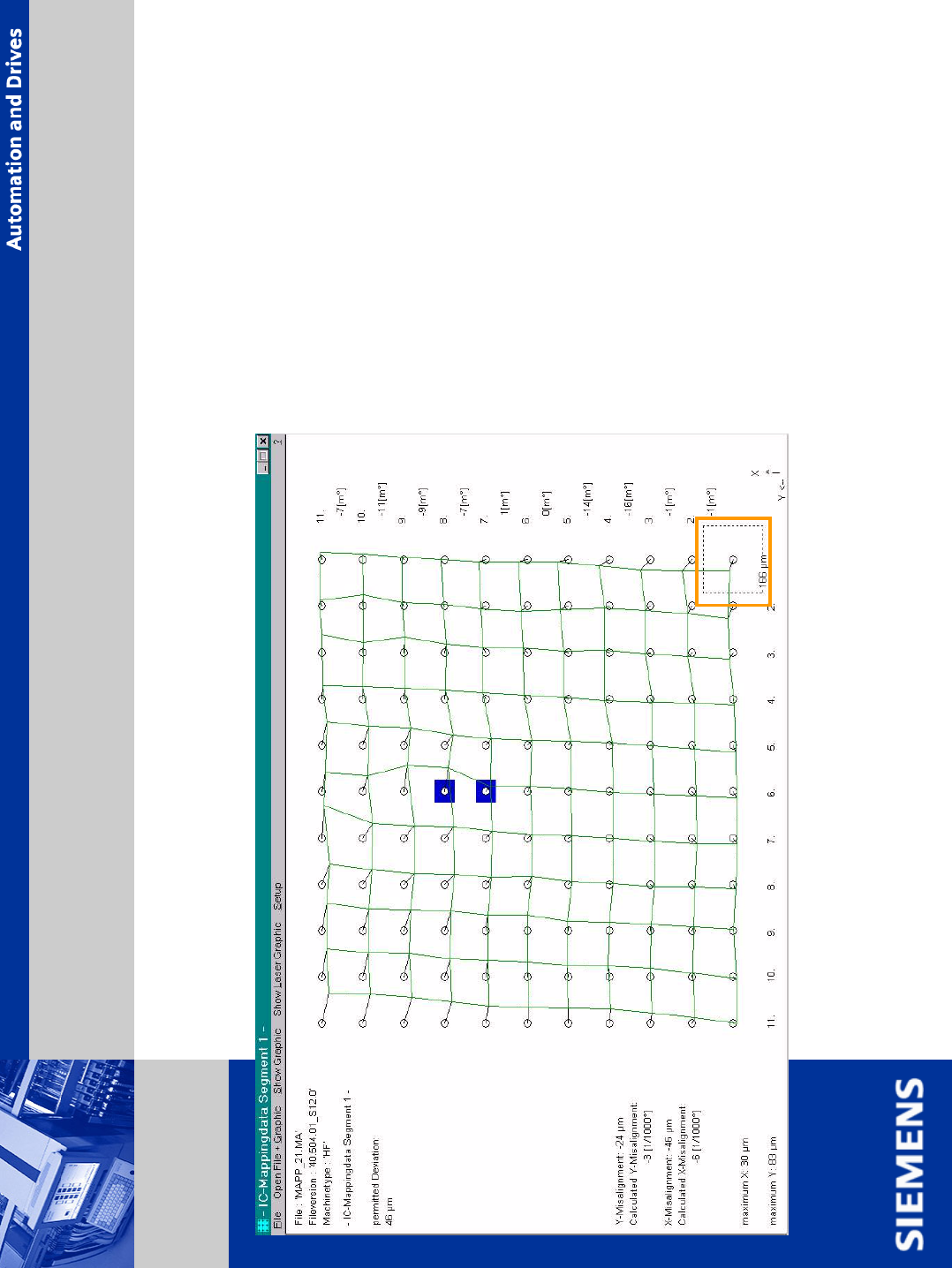

IC-Mapping for TWIN Head Segment 1
Blue color indicate ‚WARNING‘
tolerance exceeded
deviation more the 200um in
respect to related coordinate
#.
Red color indicates ERROR
deviation more the 300um in
respect to related coordinate
tolerance exceeded
. Seite 10
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

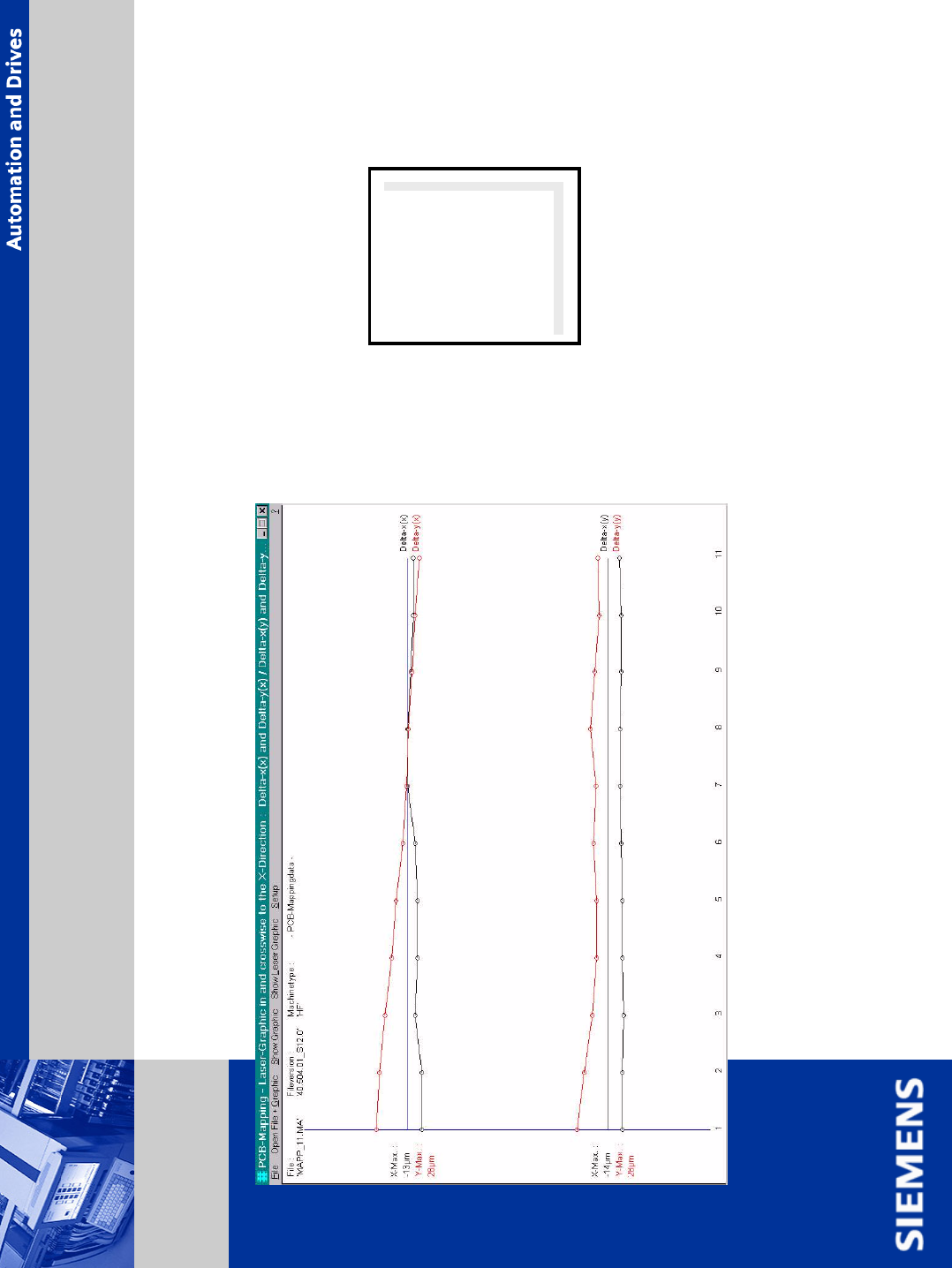

the upper lines displays the deviation of
1st column in X-direction.
the lower lines display the deviation of
the 1st line in Y-direction.
Laser Graphic for the PCB-Mapping
