. Seite 14 © Siemens AG . . Änderungen vorbehalten SIPLACE Placement Systems Attention : If the raceway exchange has been carried out, do no t forget to re move the forced-a ir tubes from the worn raceway and insert them…

100%1 / 138
. Seite 13
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ fix the revolver head front part at the head stand, or alternatively, place the front part into the
protective cover (delivered with a new head) if available.
¾ check whether all parts on the top side are OK.
¾ mount the driving plate loosely.
¾ take care the cable is placed appropriately (looped, not twisted)
Assembly Z-Axis (continuing)
. Seite 14
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
Attention:

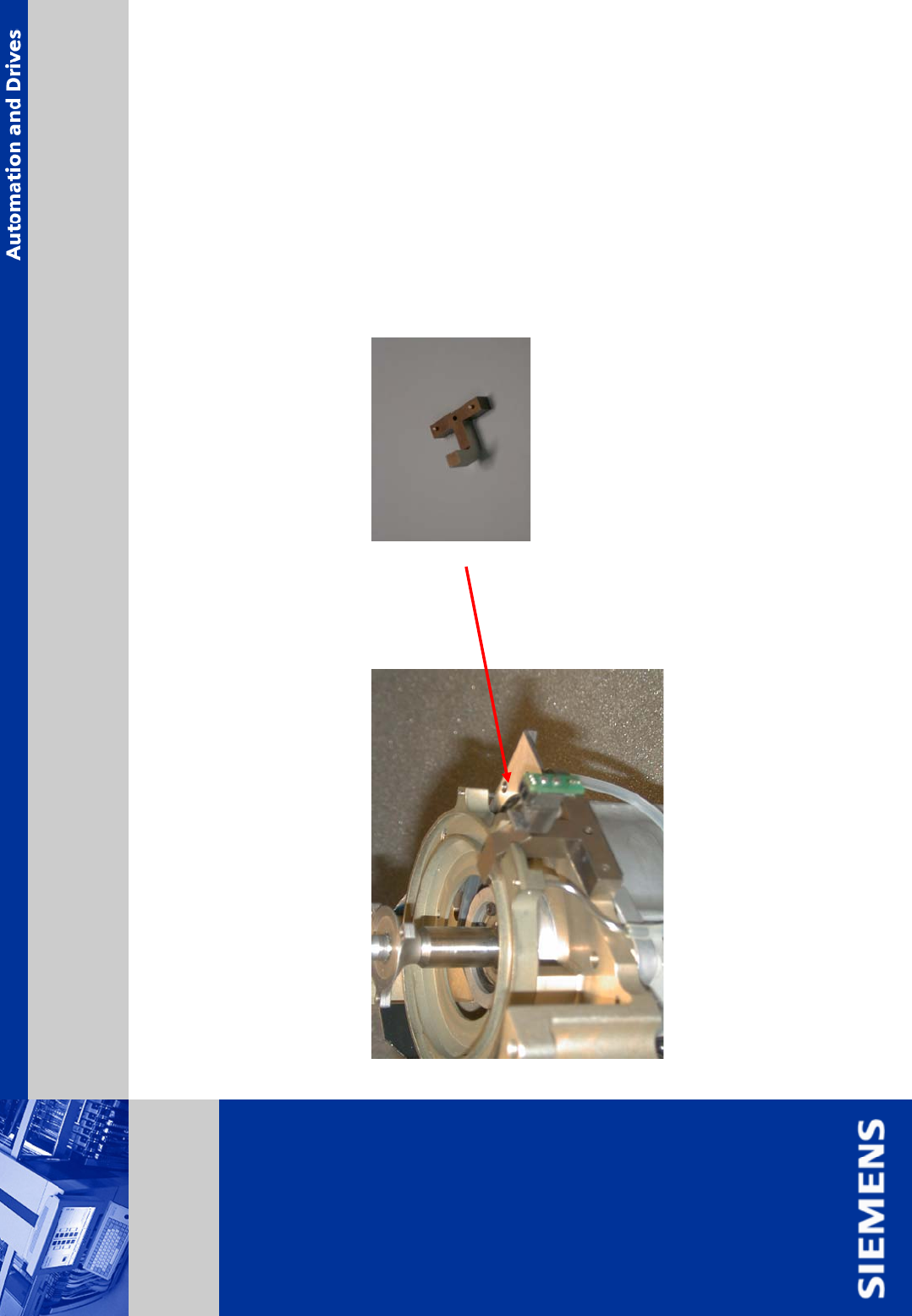

If the raceway exchange has been carried out, do not forget to remove the forced-air tubes from
the worn raceway and insert them in the new one (allen wrench 0.71 mm).
Adjust the 0.5 mm distance with the aid of the 5/10 gauge for forced-air tubes.
Tighten the grub screws (DIN 916 M1,6 x 2,5mm) carefully so that the tubes do not bend or brake.
Assembly Z-Axis (continuing)
. Seite 15
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
¾ remove any contamination from the raceway.
¾ insert the raceway.
¾ insert the screws (DIN 912 M3x5mm), do not tighten them.
¾ place the raceway gap gauge in star position 1.
Assembly Z-Axis (continuing)
