. Seite 6
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

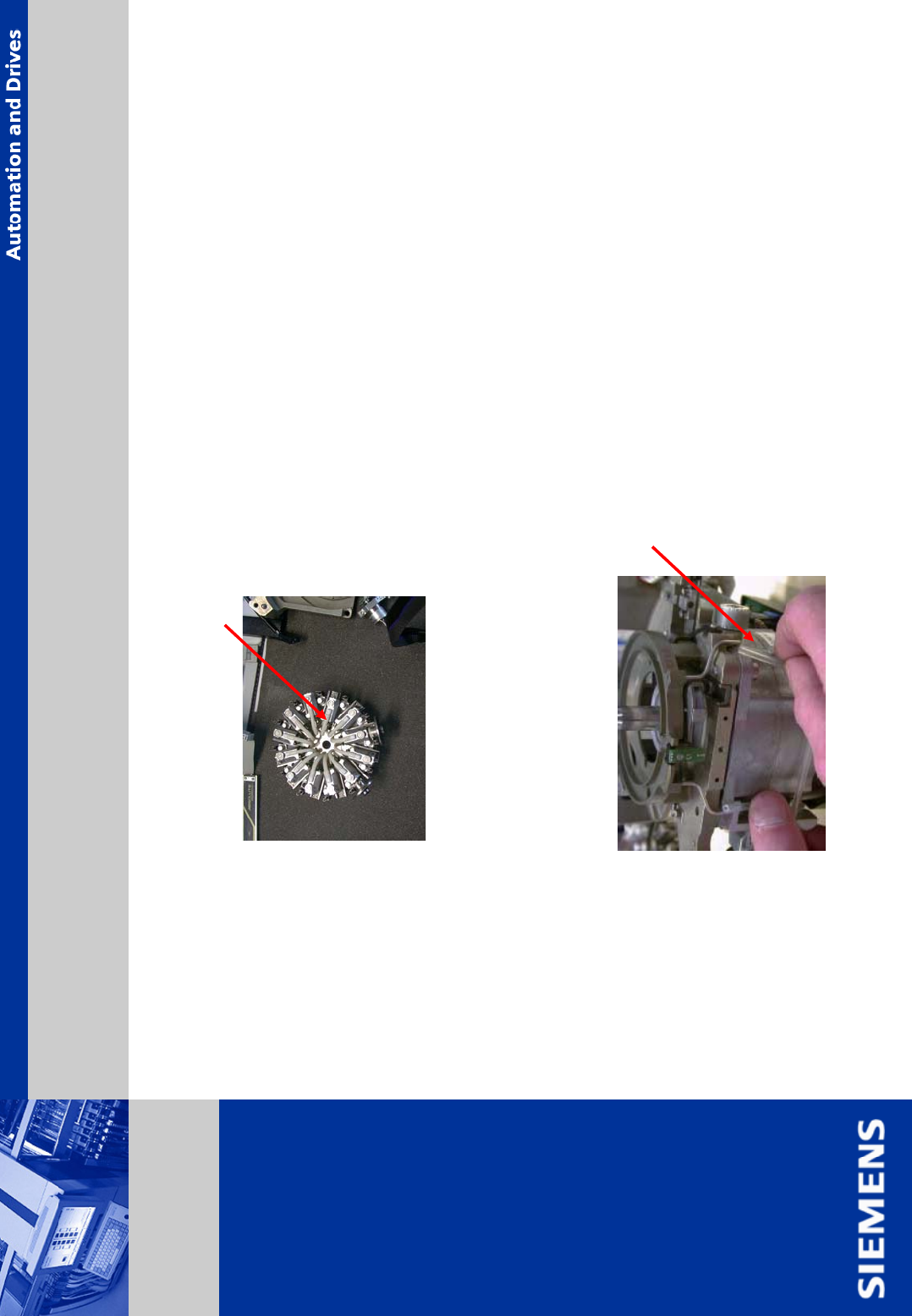

¾ check all segments and hose connections. Exchange the star if it is damaged.
¾ set the star down very carefully with valve plungers down.
¾ clean segments as described in maintenance manual.
¾ pull the compressed air hoses from the forced-air tubes.
Disassembly Z-Axis (continuing)
. Seite 7
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

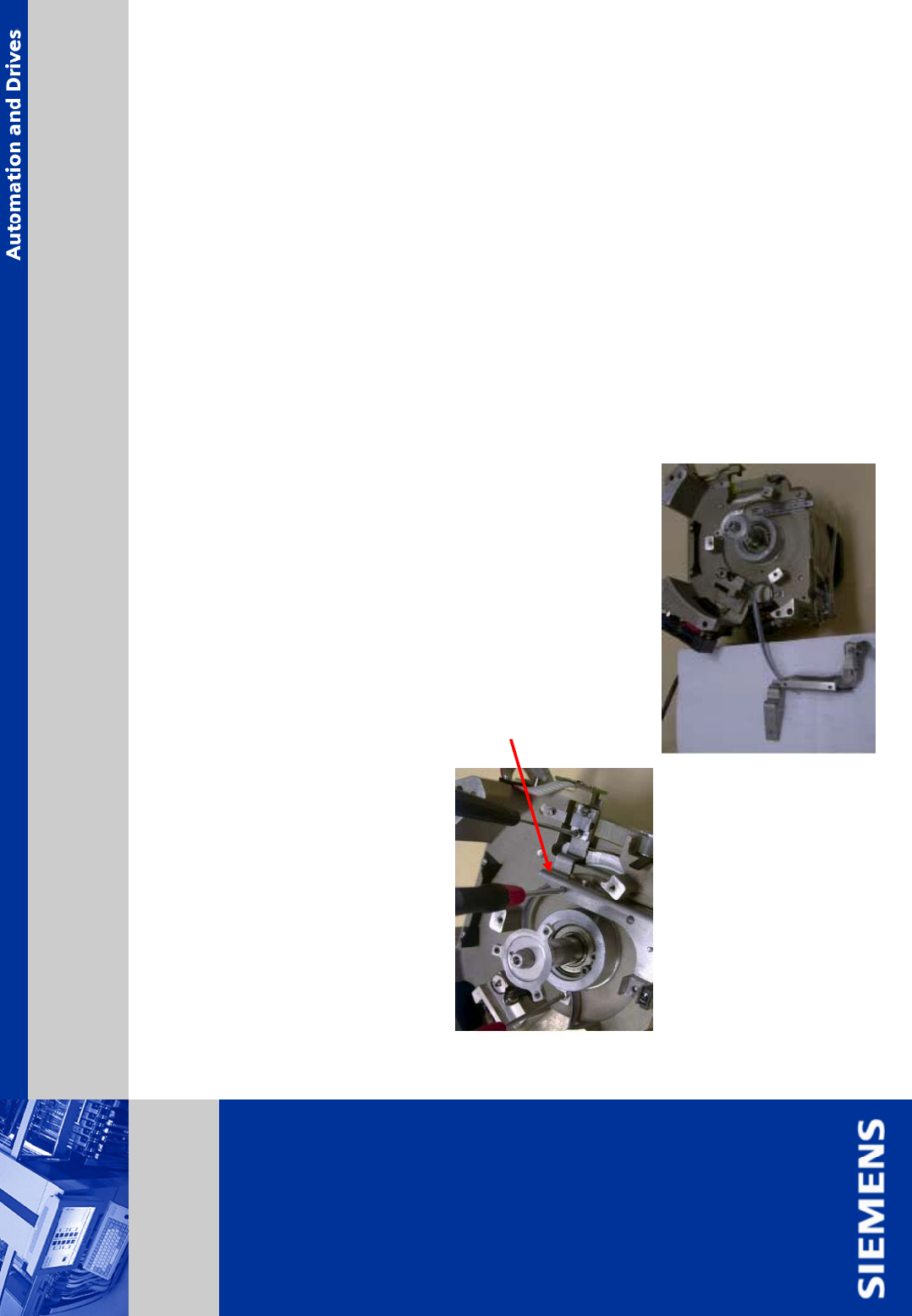

¾ loosen and remove the 3 hexagon socket screws (allen wrench 2,5 mm) of the raceway and
take it out.
¾ check the raceway. Exchange the raceway if it is damaged.
¾ unfasten the angle piece (cable, depending on head type).
¾ loosen and remove the 2 hexagon screws (allen wrench 1,5 mm) used to fasten the driving
plate to the rolling slides.
¾ loosen and remove the 2 hexagon screws (allen wrench 2 mm) of belt fastener.
¾ remove the driver plate.
Disassembly Z-Axis (continuing)
. Seite 8
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

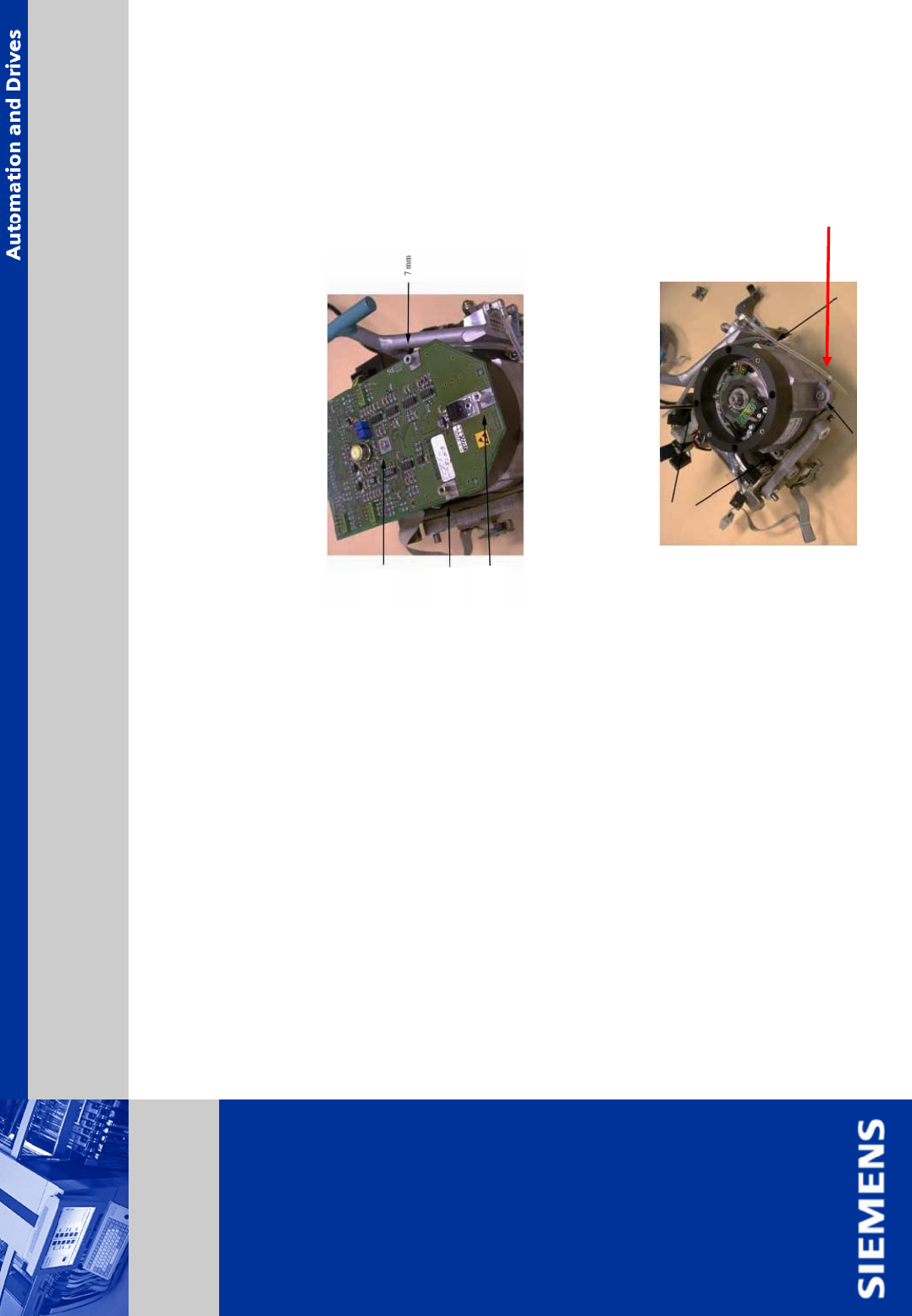

¾ place the front part of the head with the star downward.
¾ remove the 4 screws of the intermediate distribution board. Use a spanner 5,5 mm and an allen
wrench 2,5 mm.
¾ take specific care about screw size and allocation.
¾ remove the intermediate distributor board.
¾ take off all cables and the compressed air hose from intermediate distributor board
(plugs are coded).
¾ loosen and remove the 4 hexagon socket
head screws (allen wrench 4 mm) of the star
motor.
10 mm
9 mm
M 3x5
Disassembly Z-Axis (continuing)
