. Seite 19
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

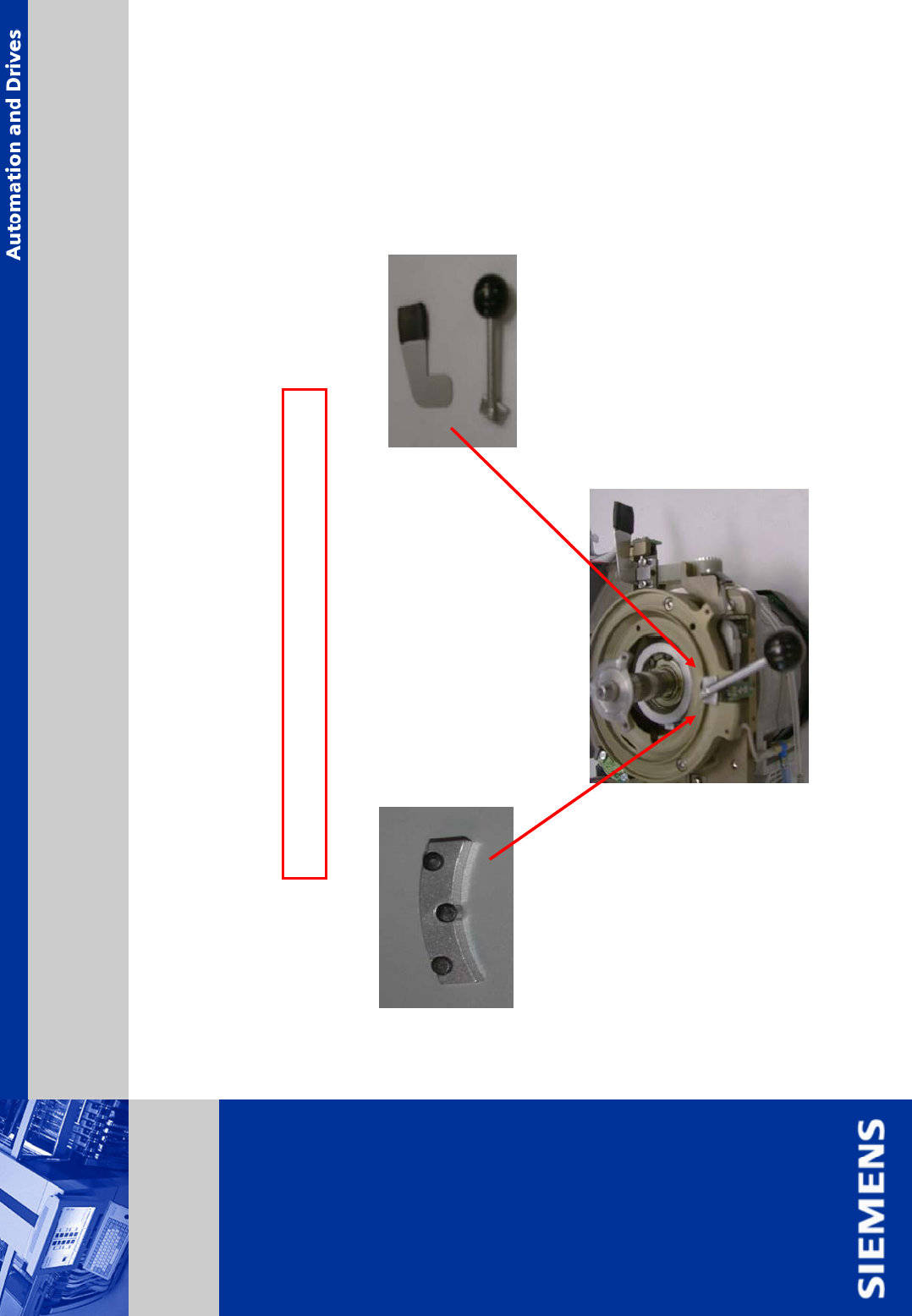

C&P M 8000, M 10 000: z-axis gauge shown below must be used
alternative
Attention: only C&P M 8000, M 10000 head
Assembly Z-Axis only M 8000, M 10000
. Seite 20
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems
C&P M 8000 / M 10000

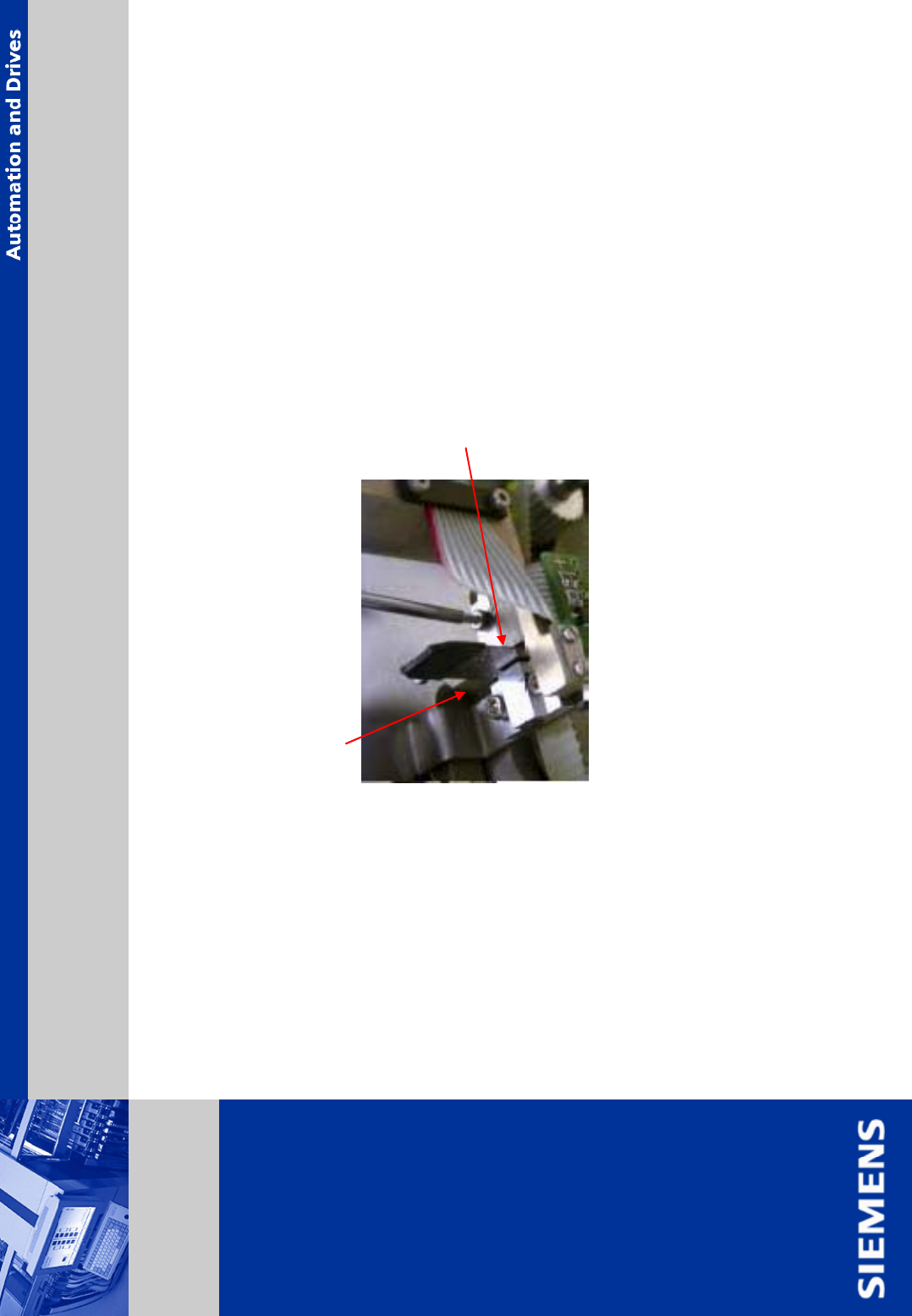

¾ loosen and remove the hexagon socket head screw (1.5 mm allen wrench) of
z-axis upper stop.
¾ place a 0.3 mm feeler gauge on the upper stop.
¾ push the z-axis stop in the direction of the belt fastener and tighten the screw of the
z-axis upper stop.
¾ remove the feeler gauge and the gauge for z-axis upper stop.
¾ check belt tension using belt tension meter:
belt tension: C&P head: M 8000 / M 10000 head: 190 +- 10 Hz
upper stop z-axis
Assembly Z-Axis only M 8000, M 10000
. Seite 21
© Siemens AG . . Änderungen vorbehalten
SIPLACE
Placement Systems

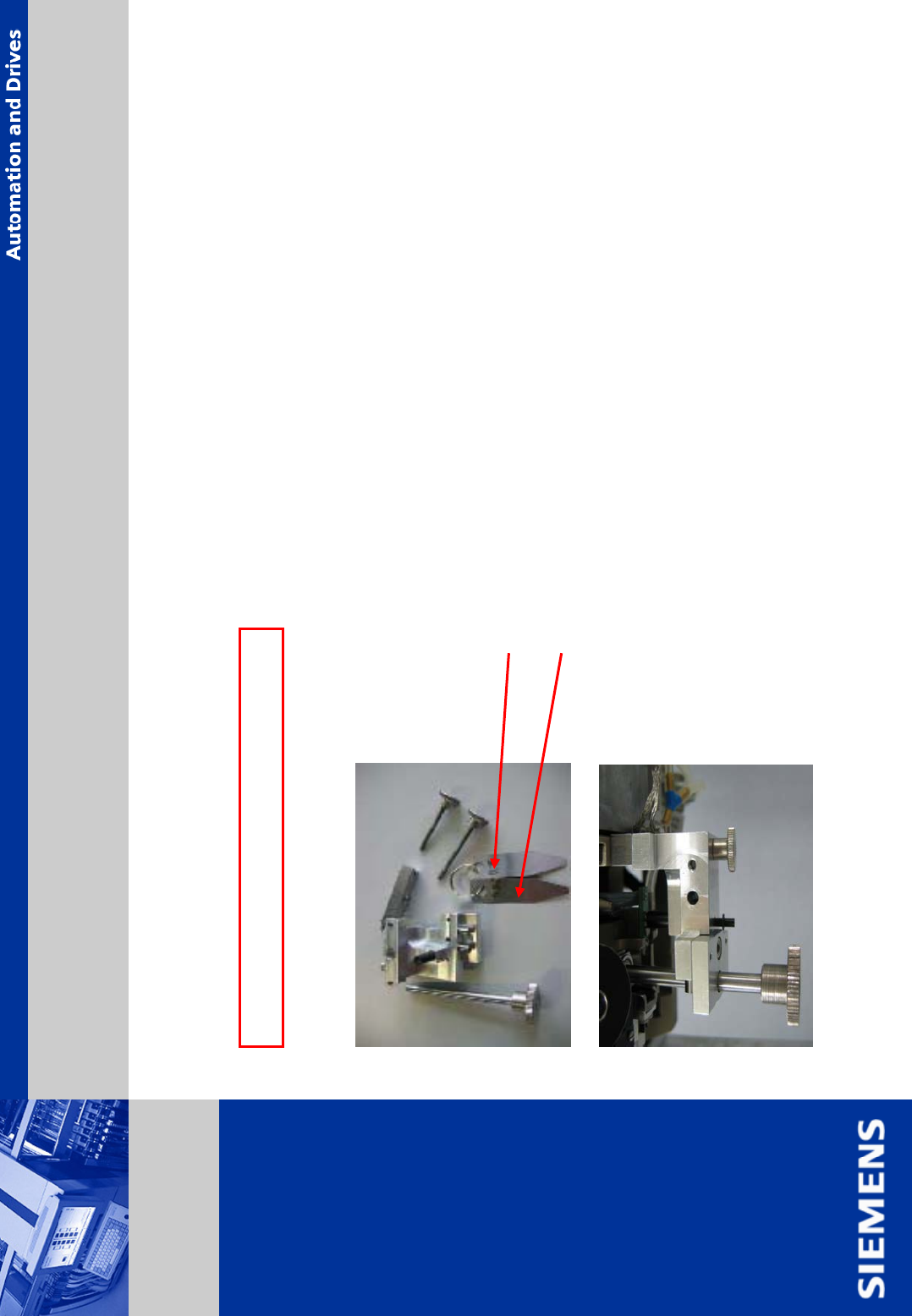

order number 00326164-01
don’t mix it up with the gauge for adjusting the zero point correction
gauge star axis
C&P DLM head: z-axis gauge shown below must be used
see Technical Info 10C06014
Attention: only for C&P DLM head
Assembly Z-Axis only DLM Head
0,15mm
0,05mm
