MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 99 FB-1 1 630 091 2432 MOTOR,STEPPING 1 MPM031,B2083-D21ASM 782FB-1 10-001 2 630 088 3565 COUPLING 1 782FB-1 10-002 3 630 005 1353 BEARING,UNIT …
MODEL TPM-200F/R
0207-001
98
スクリーン認識部 SCREEN RECOGNITION SECTION

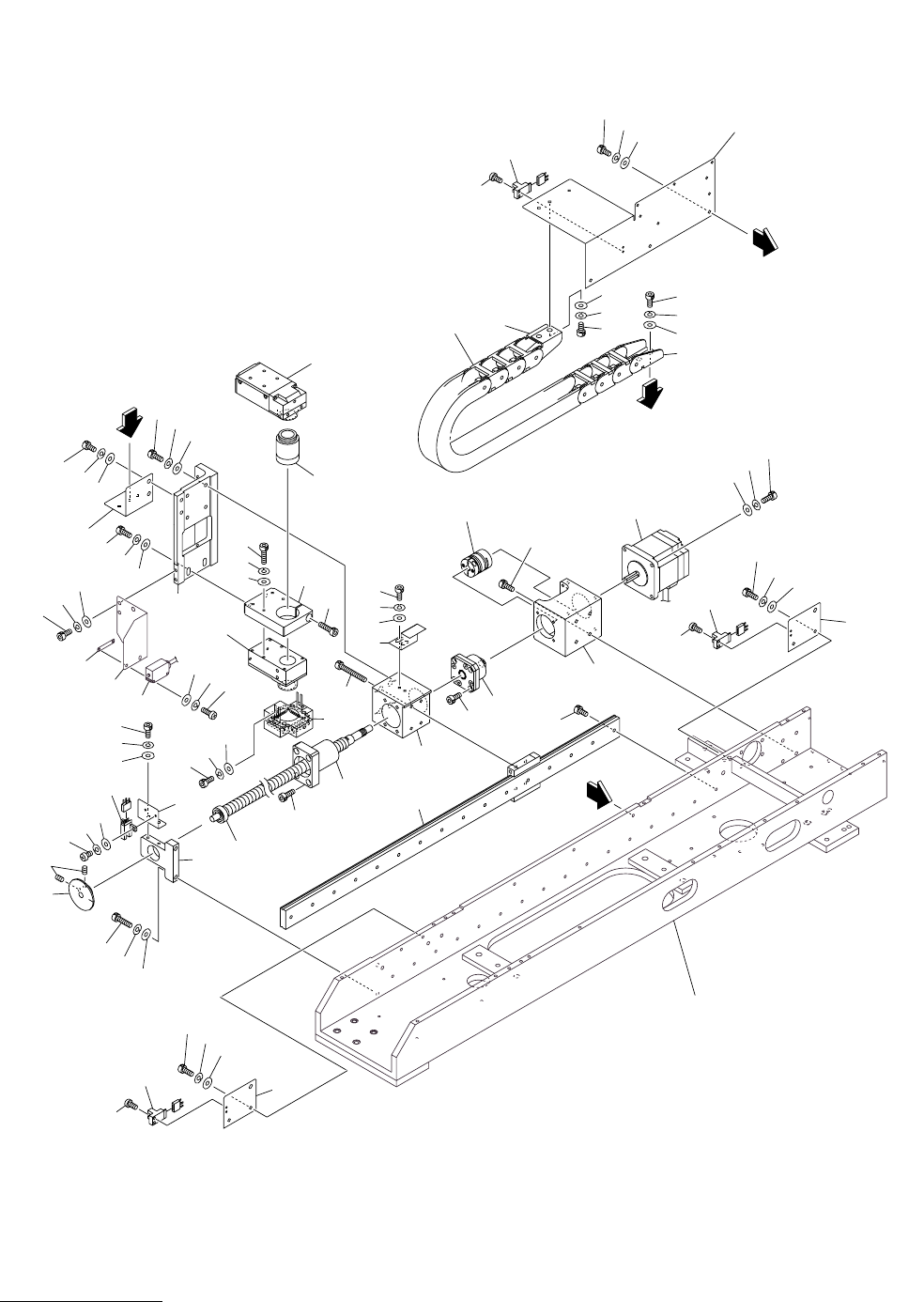

Fig. FB-1
スクリーン認識 X 軸駆動部
Screen Recognition X Axis Driver
68
72
73
78
77
74
74
77
78
11
A
B
B
10
9
78
77
78
21
63
64
65
67
72
73
24
68
2
68
4
1
3
68
17
5
75
18
73
72
67
32
84
83
81
20
6
85
83
84
66
19
76
77
78
See Fig.FA-1
Key No.40
15
75
79
22
75
68
72
73
23
70
30
31
A
72
73
77
74
25
26
33
29
28
27
68
7
72
72
73
70
73
61
61
3
86
72
73
Fig.FB-1
TPM-200F/R
26
68
7
72
73
7
61
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
99
FB-1
1 630 091 2432 MOTOR,STEPPING 1 MPM031,B2083-D21ASM
782FB-110-001
2 630 088 3565 COUPLING 1 782FB-110-002
3 630 005 1353 BEARING,UNIT 1 782FB-110-003
4 630 108 5807 GUIDE,LINEAR 1 782FB-110-004
5 630 108 7542 BALL SCREW 1 782FB-110-005
6 630 032 5287 SENSOR,PHOTO 1 BPH314 782FB-110-006
7 630 069 0545 SENSOR,PHOTO 3 BPH311-313 782FB-110-007
9 630 108 6781 MECH PARTS(CABLEVEYOR) 1 782FB-110-009
10 630 088 3688 MECH PARTS 1 782FB-110-010
11 630 088 3695 MECH PARTS 1 782FB-110-011
15 630 109 0030 BRACKET 1 782FB-110-015
17 630 112 3936 BLOCK 1 782FB-110-017
18 630 109 0054 BLOCK 1 782FB-110-018
19 630 088 0427 PLATE 1 782FB-110-019
20 630 108 6873 BRACKET 1 782FB-110-020
21 630 108 6880 STAY 1 782FB-110-021
22 630 088 0472 BLOCK 1 782FB-110-022
23 630 108 6910 BRACKET 1 782FB-110-023
24 630 110 5581 BRACKET 1 782FB-110-024
25 630 108 6927 BRACKET 1 782FB-110-025
26 630 108 6941 BRACKET 2 782FB-110-026
27 630 097 8049 SENSOR,PELEC 1 BPH064 782FB-110-027
28 630 108 6958 BRACKET 1 782FB-110-028
29 630 101 6634 PLATE 1 782FB-110-029
30 630 089 2567 UNIT,CAMERA 1 B003,#KP-MC2-S2 782FB-110-030
31 630 108 5814 SCOPE UNIT 1 #LA-004-16-35-L42 782FB-110-031
32 630 114 6546 LIGHTING UNIT 1 E06E,#8S162 782FB-110-032
33 630 114 4771 LIGHTING UNIT 1 E06F,#253S0020 782FB-110-033
61 411 041 7208 SCR PAN 3X5 8 782FB-110-061
63 630 000 7565 BOLT,HEX-SCT 4 782FB-110-063
64 411 141 2806 WASHER SPR 3 4 782FB-110-064
65 411 141 3902 WASHER V 3X7X0.5 4 782FB-110-065
66 630 000 8920 SET SCREW 2 782FB-110-066
67 630 000 7619 BOLT,HEX-SCT 4 782FB-110-067
68 630 000 7626 BOLT,HEX-SCT 33 782FB-110-068
70 630 000 7657 BOLT,HEX-SCT 8 782FB-110-070
72 411 141 2905 WASHER SPR 4 23 782FB-110-072
73 411 141 4008 WASHER V 4X9X0.8 23 782FB-110-073
74 630 000 7749 BOLT,HEX-SCT 6 782FB-110-074
75 630 000 7763 BOLT,HEX-SCT 10 782FB-110-075
76 630 000 7787 BOLT,HEX-SCT 2 782FB-110-076
77 411 141 6705 WASHER SPR 5 10 782FB-110-077
78 411 141 4107 WASHER V 5X10X1 10 782FB-110-078
79 630 000 7893 BOLT,HEX-SCT 1 782FB-110-079
81 411 162 1604 SCR PAN 3X20 2 782FB-110-081
83 411 086 4408 WASHER SPR 3 4 782FB-110-083
84 411 119 1909 WASHER V 3X7X0.5 4 782FB-110-084
85 411 042 0703 SCR PAN 3X8 2 782FB-110-085
86 630 000 7602 BOLT,HEX-SCT 2 782FB-110-086
MODEL TPM-200F/R
0207-001
100
スクリーン認識部 SCREEN RECOGNITION SECTION

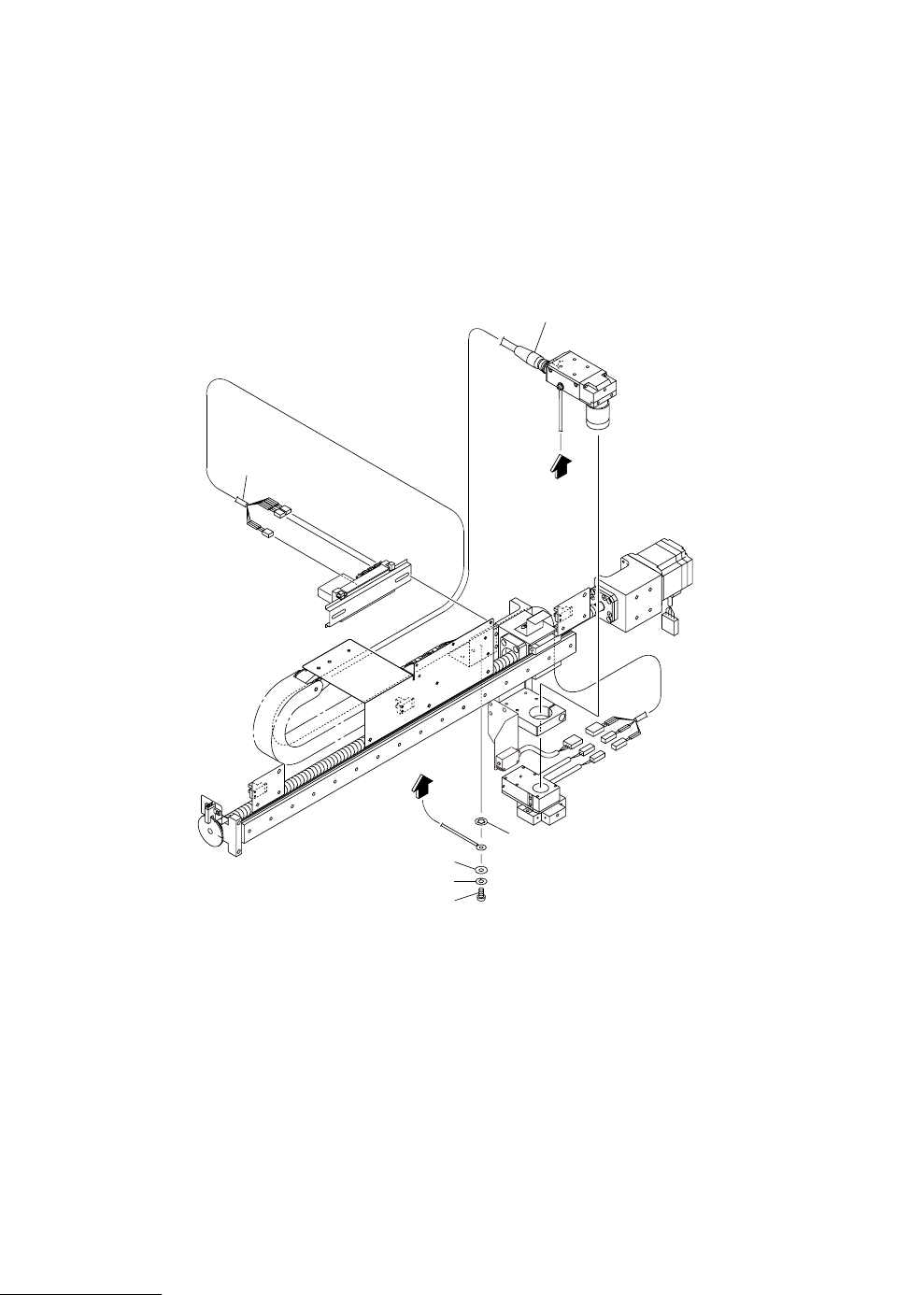

Fig. FB-2 ケーブル Cable
Fig.FB-2
TPM-200F/R
102
105
104
106
101
107
A
A
