MODEL TPM-200F/R 0207-001 250 制御ボックス部 CONTROL BOX SECTION Fig. RC-1 制御ボックス Control Box Fig.RC-1 TPM-200F/R See Fig.K-4 Key No.302 1 4 5 6 1 2 1 63 3 62 61 66 67 65 64 A B A B
MODEL TPM-200F/R
0207-001
249

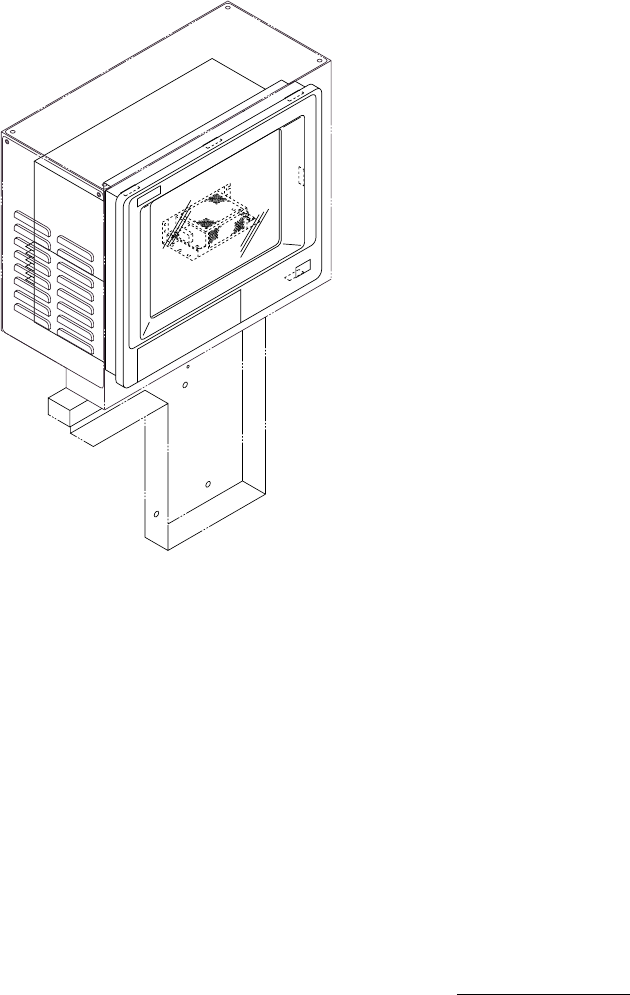

Fig. RC 制御ボックス部 CONTROL BOX SECTION
MODEL TPM-200F/R
0207-001
250
制御ボックス部 CONTROL BOX SECTION

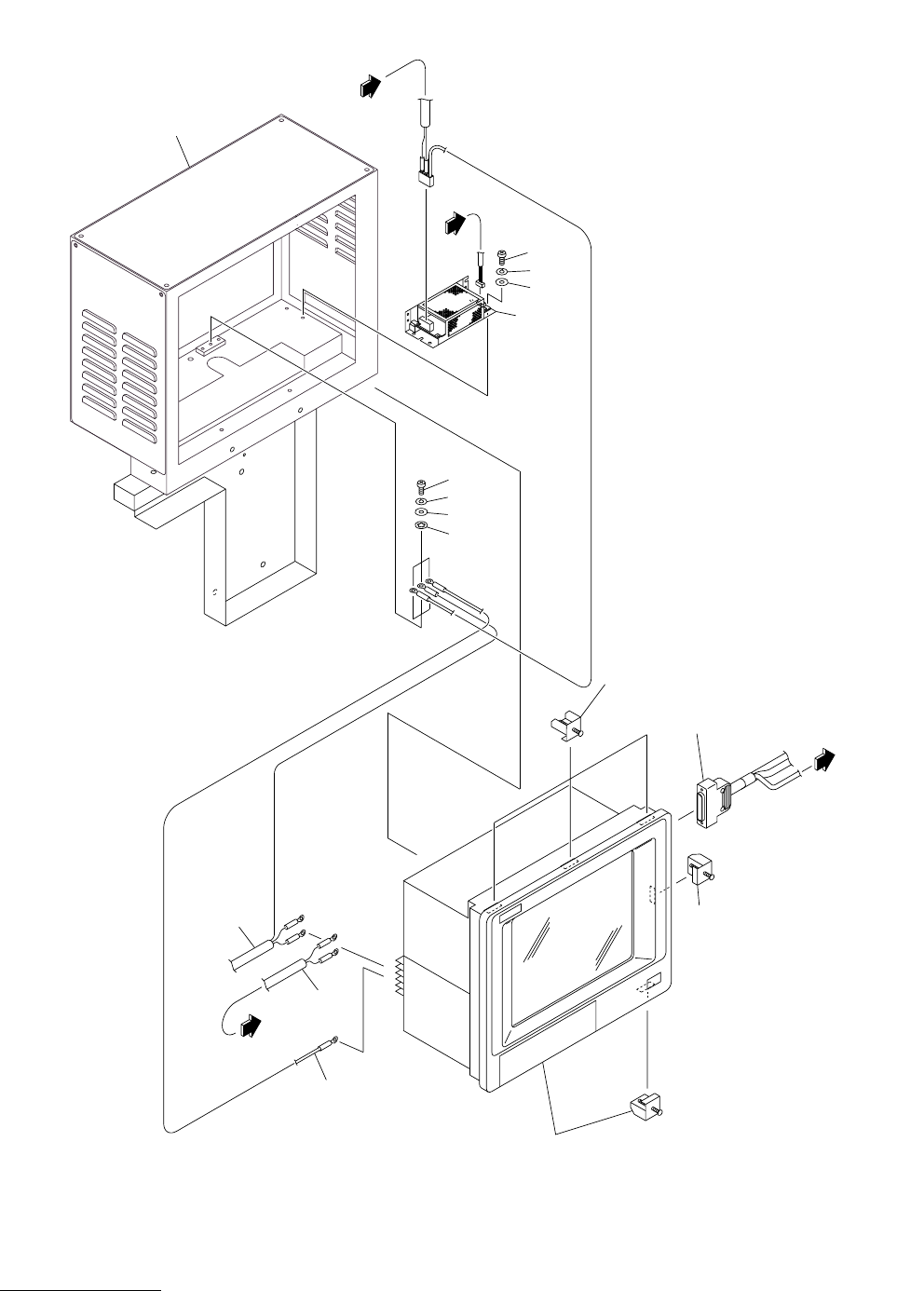

Fig. RC-1 制御ボックス Control Box
Fig.RC-1
TPM-200F/R
See Fig.K-4
Key No.302
1
4
5
6
1
2
1
63
3
62
61
66
67
65
64
A
B
A
B
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
RC-1
1 630 111 2503 EQUIPMENT 1 #PL6920-SHC 782RC-110-001
2 630 112 5916 CORD 1 XCN002-XCN106H,107H,XNC002
782RC-110-002
3 630 089 2635 UNIT,POWER 1 G004,#ZWS5-12/JA 782RC-110-003
4 630 112 5930 CORD 1 782RC-110-004
5 630 112 5923 CORD 1 XNC001- 782RC-110-005
6 630 112 5947 CORD 1 782RC-110-006
61 411 041 8908 SCR PAN 3X6 2 782RC-110-061
62 411 086 4408 WASHER SPR 3 2 782RC-110-062
63 411 119 1909 WASHER V 3X7X0.5 2 782RC-110-063
64 411 043 5004 SCR PAN 4X8 3 782RC-110-064
65 411 008 1706 WASHER SPR 4 3 782RC-110-065
66 411 119 2104 WASHER V 4X9X0.8 3 782RC-110-066
67 411 087 0508 WASHER IN TW 4 3 782RC-110-067
