MODEL TPM-200F/R 0207-001 86 スキージヘッド部 SQUEEGEE HEAD SECTION Fig. F A-1 スキージヘッド Y 軸駆動部 Squeegee Head Y Axis Driver A B C C A B 78 78 66 69 71 72 20 22 21 70 71 72 15-01 15-02 17 13 12 11 . 14 74 76 77 68 71 72 61 9 67 71 …
MODEL TPM-200F/R
0207-001
85

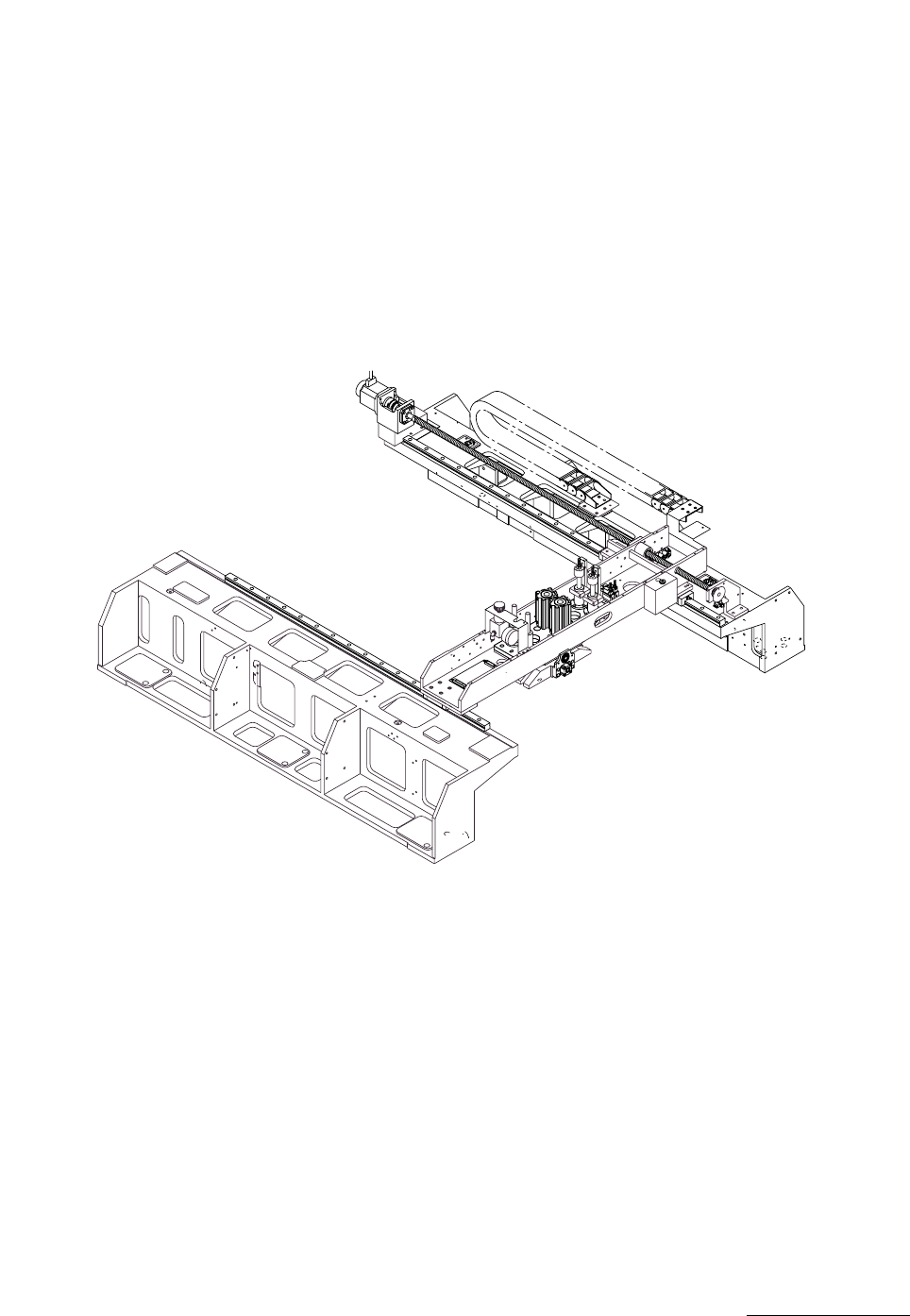

Fig. FA スキージヘッド部 SQUEEGEE HEAD SECTION
MODEL TPM-200F/R
0207-001
86
スキージヘッド部 SQUEEGEE HEAD SECTION
Fig. FA-1 スキージヘッド Y 軸駆動部 Squeegee Head Y Axis Driver
A
B
C
C
A
B
78
78
66
69
71
72
20
22
21
70
71
72
15-01
15-02
17
13
12
11
.
14
74
76
77
68
71
72
61
9
67
71
72
68
71
72
80
81
82
79
31
See Fig K-1
Key No.1
73
73
2
3
4
4
33
34
72
71
67
65
7
5
40
45
43
6
30
29
1
32
68
73
87
76
77
41
46
39
67
71
72
61
79
81
82
35
9
20
42
44
74
76
77
74
76
77
Fig.FA-1
TPM-200F/R
16
17
66
67
71
72
28
71
72
26
70
18
27
27
22
21
23
15
65
37
38
36
84
85
86
84
85
86
9
61
1
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
87
FA-1
1 630 109 0108 PIN,LOCATE 10 782FA-110-001
2 630 114 9356 MOTOR,STEPPING 1 MPM027,ASM66BA 782FA-110-002
3 630 088 3572 COUPLING 1 782FA-110-003
4 630 013 6241 BEARING,UNIT 1 782FA-110-004
5 630 108 5791 GUIDE,LINEAR 1 782FA-110-005
6 630 108 5098 GUIDE,LINEAR 1 782FA-110-006
7 630 108 7559 BALL SCREW 1 782FA-110-007
9 630 000 0252 SENSOR,PHOTO 4 BPH271-274 782FA-110-009
11 630 108 6651 MECH PARTS(CABLEVEYOR) 1 782FA-110-011
12 630 088 3718 MECH PARTS 1 782FA-110-012
13 630 088 3725 MECH PARTS 1 782FA-110-013
14 630 088 3749 MECH PARTS 4 782FA-110-014
15 630 089 2116 SOLENOID VALVE 1 YSV068,069, #VV3Z1-X139
782FA-110-015
15 -01 630 092 8068 AIR LINE EQPT 1
15 -02 630 092 7870 SOLENOID VALVE 2
16 630 092 8174 PIPE FITTINGS 1 782FA-110-016
17 630 088 8850 AIR LINE EQPT 5 782FA-110-017
18 630 095 4951 PIPE FITTINGS 1 782FA-110-018
20 630 088 8867 VALVE 2 782FA-110-020
21 630 069 0538 PIPE FITTINGS 3 782FA-110-021
22 630 088 4432 PIPE FITTINGS 5 782FA-110-022
23 630 092 8457 AIR LINE EQPT 1 782FA-110-023
26 630 092 8167 AIR LINE EQPT 1 782FA-110-026
27 630 080 5420 PIPE FITTINGS 2 782FA-110-027
28 630 081 7508 PIPE FITTINGS 1 782FA-110-028
29 630 114 2166 FRAME 1 782FA-110-029
30 630 114 2173 FRAME 1 782FA-110-030
31 630 109 0061 BLOCK 1 782FA-110-031
32 630 107 4672 BRACKET 1 782FA-110-032
33 630 113 2266 BLOCK 1 782FA-110-033
34 630 108 6682 PLATE 1 782FA-110-034
35 630 113 2259 BRACKET 1 782FA-110-035
36 630 108 6811 BRACKET 1 782FA-110-036
37 630 108 6828 BRACKET 1 782FA-110-037
38 630 108 6835 BRACKET 1 782FA-110-038
39 630 108 6842 BRACKET 1 782FA-110-039
40 630 108 6729 FRAME 1 782FA-110-040
41 630 108 6859 BRACKET 1 782FA-110-041
42 630 108 6712 COVER 1 782FA-110-042
43 630 108 6705 BRACKET 1 782FA-110-043
44 630 108 6866 BRACKET 1 782FA-110-044
45 630 109 0580 COVER 1 782FA-110-045
46 630 114 9363 MECH PARTS(CLEAN DANPER) 1 782FA-110-046
61 411 040 6202 SCR PAN 3X10 8 782FA-110-061
65 630 000 8920 SET SCREW 4 782FA-110-065
66 411 051 1708 SCR TRS 4X6 8 782FA-110-066
67 630 000 7619 BOLT,HEX-SCT 12 782FA-110-067
68 630 000 7626 BOLT,HEX-SCT 8 782FA-110-068
69 630 000 7657 BOLT,HEX-SCT 4 782FA-110-069
