MODEL TPM-200R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 167 HR-2 10 1 630 069 3799 GEAR,REDUCTION 1 782HR-1 10-101 10 2 630 088 4272 MOTOR,REVERSIBLE 1 M003,USM425-41 1WJ 782HR-1 10-102 10 3 630 1 15 54…
MODEL TPM-200R
0207-001
103
168
103
168
104
168
168

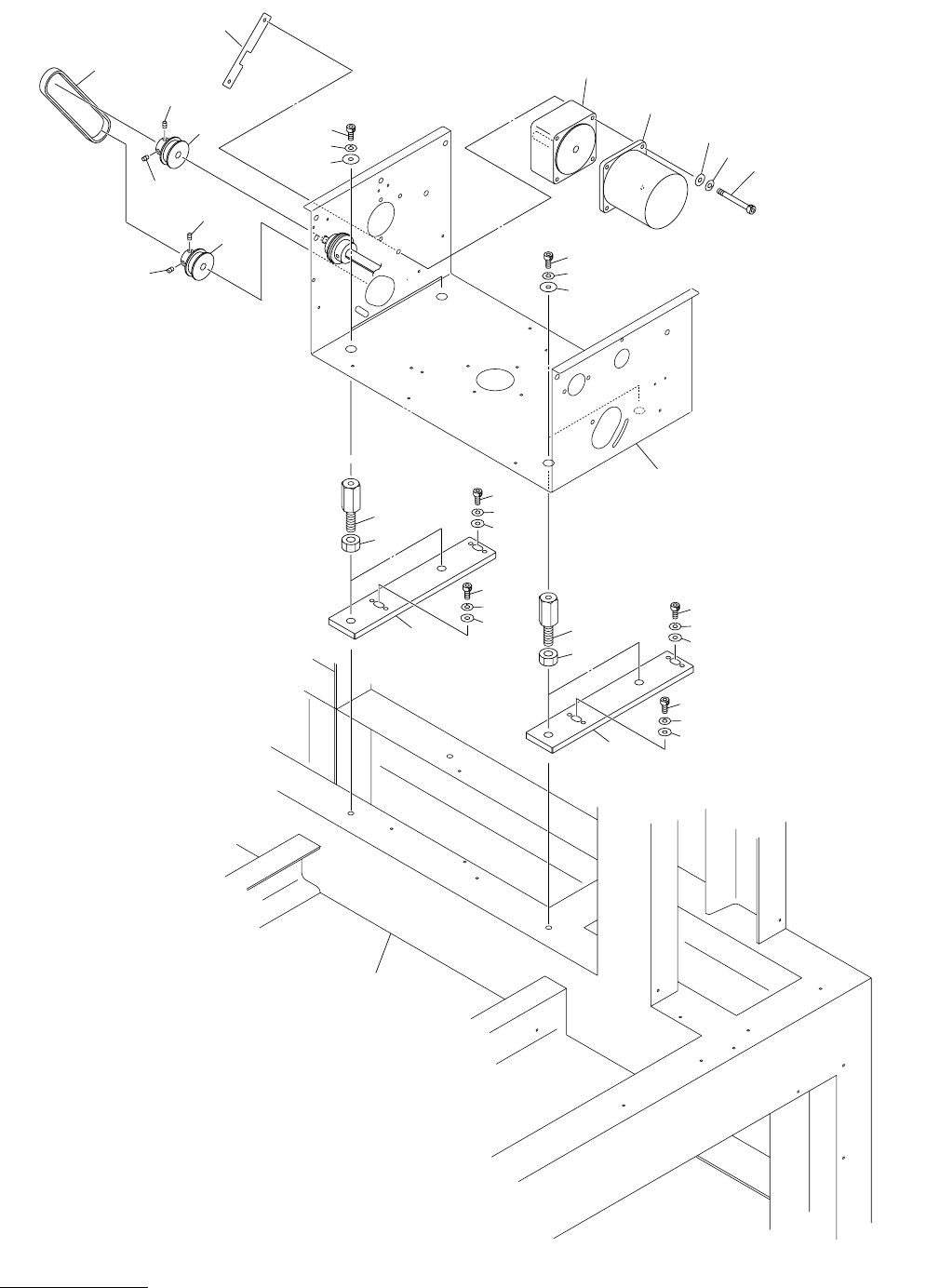

Fig.HR-2
TPM-200R
164
163
162
106
161
105
164
163
162
164
163
162
164
163
162
See Fig HR-1
Key No.19
See Fig K-1
Key No.1
106
161
105
164
163
162
164
163
162
107
101
102
165
166
167
MODEL TPM-200R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
167
HR-2
101 630 069 3799 GEAR,REDUCTION 1 782HR-110-101
102 630 088 4272 MOTOR,REVERSIBLE 1 M003,USM425-411WJ
782HR-110-102
103 630 115 5449 PULLEY,TIMING 2 782HR-110-103
104 630 053 2395 BELT,TIMING 1 782HR-110-104
105 630 107 8205 PLATE 2 782HR-110-105
106 630 107 8182 SHAFT 4 782HR-110-106
107 630 107 8120 PLATE 1 782HR-110-107
161 411 141 1304 NUT HEX 12 4 782HR-110-161
162 630 001 0244 WASHER 8 782HR-110-162
163 411 141 3100 WASHER SPR 8 8 782HR-110-163
164 630 000 8012 BOLT,HEX-SCT 8 782HR-110-164
165 411 141 4107 WASHER V 5X10X1 2 782HR-110-165
166 411 141 6705 WASHER SPR 5 2 782HR-110-166
167 630 000 7831 BOLT,HEX-SCT 2 782HR-110-167
168 630 000 8951 SET SCREW 4 782HR-110-168
MODEL TPM-200R
0207-001
168
R コンベア部（奥基準）
R CONVEYOR SECTION（Rear Reference）
Fig. HR-3 コンベア幅変更部 Conveyor Width Change Section
Fig.HR-3
TPM-200R
263
262
261
201
See Fig HR-1
Key No.19
264
202
205
204
264
202
