MODEL TPM-200F/R 0207-001 234 ドライバ１部 DRIVER 1 SECTION Fig. BE-1 ドライバ１部 Driver-1 Section See Fig.K-4 Key No.309 Fig.BE-1 TPM-200F/R 6 7 2 1 3 3 63 62 64 8 63 62 61 63 62 61 65 63 62 61 5 11 4 12 9 63 62 61 10 52 67 68 66 …
MODEL TPM-200F/R
0207-001
233

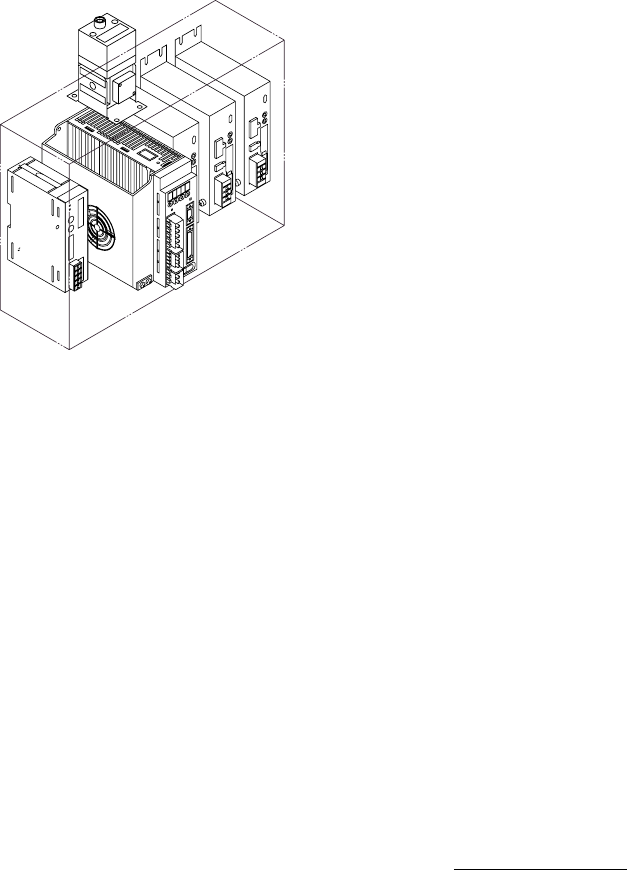

Fig. BE ドライバ１部 DRIVER 1 SECTION
MODEL TPM-200F/R
0207-001
234
ドライバ１部 DRIVER 1 SECTION

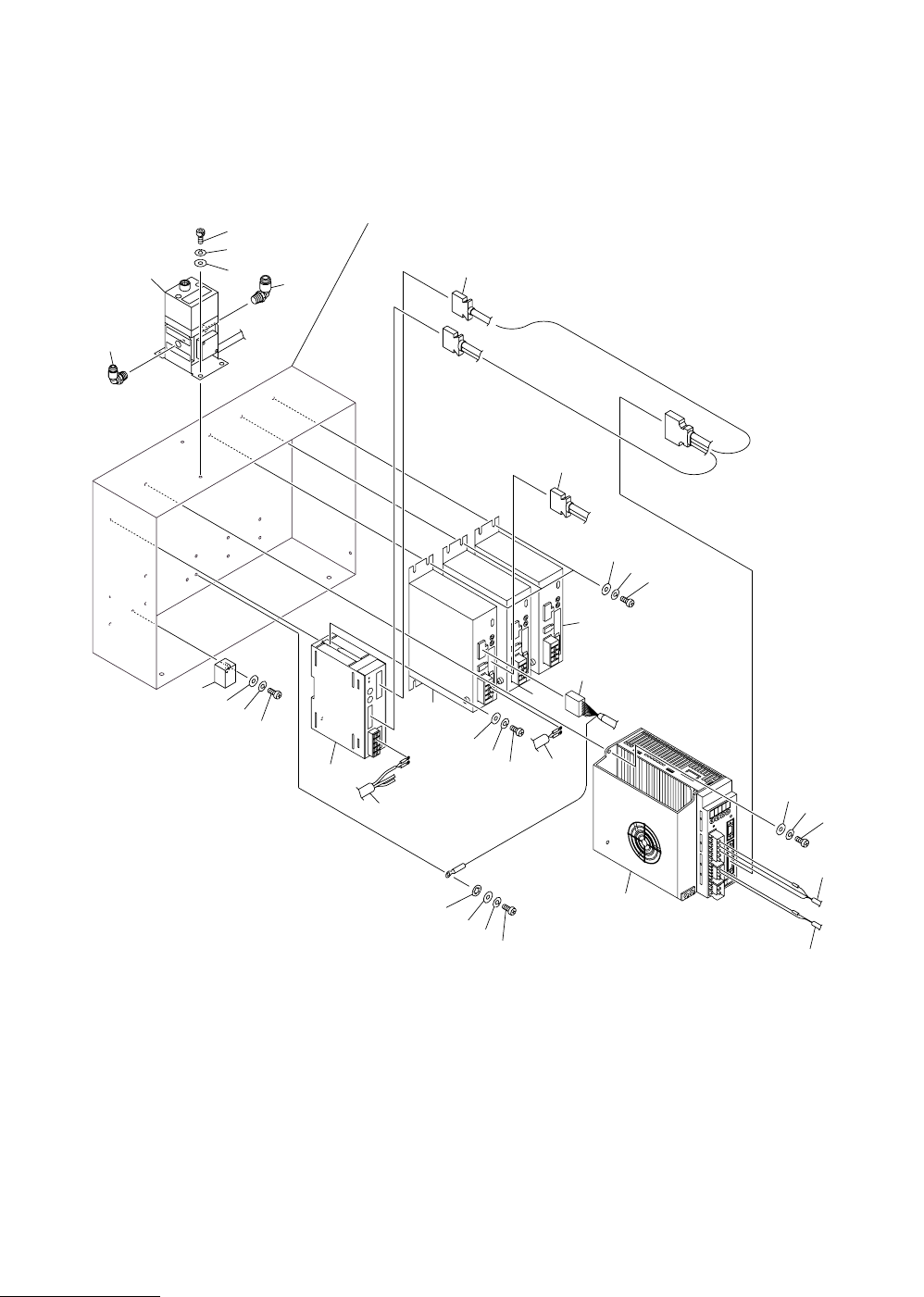

Fig. BE-1 ドライバ１部 Driver-1 Section
See Fig.K-4
Key No.309
Fig.BE-1
TPM-200F/R
6
7
2
1
3
3
63
62
64
8
63
62
61
63
62
61
65
63
62
61
5
11
4
12
9
63
62
61
10
52
67
68
66
52
51
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
235
BE-1
1 630 108 5944 UNIT,DRIVER 1 N017,EG101-SDS2 782BE-110-001
2 630 108 5913 UNIT,DRIVER 1 ASMD017,#R88D-WT08H
782BE-110-002
3 630 107 2630 UNIT,DRIVER 2 APMD19,21, ASD24A-ASD
782BE-110-003
4 630 112 4803 CORD 1 XNC195-XNC190,197
782BE-110-004
5 630 112 4810 CORD 1 XCN196-XNC1191 782BE-110-005
6 630 107 2647 UNIT,DRIVER 1 APMD023,ASD30D-ASD
782BE-110-006
7 630 112 4766 CORD 1 782BE-110-007
8 630 091 1732 COMP,CR 1 782BE-110-008
9 630 112 4797 CORD 1 782BE-110-009
10 630 112 4780 CORD 1 782BE-110-010
11 630 112 4773 CORD 1 XCN176,XNC1171-XNC055,056,057,
05C,XCN178,179 782BE-110-011
12 630 112 4827 CORD 1 782BE-110-012
51 630 037 6982 SOLENOID VALVE 1 EV2500-008-C11E2B4
782BE-110-051
52 630 102 6312 PIPE FITTINGS 2 782BE-110-052
61 411 043 5004 SCR PAN 4X8 17 782BE-110-061
62 411 008 1706 WASHER SPR 4 18 782BE-110-062
63 411 119 2104 WASHER V 4X9X0.8 18 782BE-110-063
64 411 042 3001 SCR PAN 4X10 1 782BE-110-064
65 411 087 0508 WASHER IN TW 4 7 782BE-110-065
66 630 000 7619 BOLT,HEX-SCT 2 782BE-110-066
67 411 141 2905 WASHER SPR 4 2 782BE-110-067
68 411 141 4008 WASHER V 4X9X0.8 2 782BE-110-068
