Key No. PART No. PART NAME Q’ty REMARKS
NOTE
207
MZ-5
401 630 089 2741 CIRCUIT PROTECTOR 1 Q202 782MZ-110-401
402 630 112 5114 CORD 1 782MZ-110-402
403 630 112 5138 CORD 1 XNC09A- 782MZ-110-403
404 630 089 2758 EM-CONTACTOR 1 KM202 782MZ-110-404
405 630 112 5121 CORD 1 782MZ-110-405
406 630 102 4240 RELAY 1 782MZ-110-406
407 630 091 1893 COMP,CR 1 782MZ-110-407
408 630 088 7297 CORD 1 782MZ-110-408
409 630 088 7303 CORD 1 782MZ-110-409
410 630 091 1718 ACCESSORY,WIRING 1 782MZ-110-410
411 630 112 5107 CORD 1 782MZ-110-411
412 630 060 6409 ACCESSORY,WIRING 2 782MZ-110-412
461 411 043 5004 SCR PAN 4X8 4 782MZ-110-461
462 411 008 1706 WASHER SPR 4 5 782MZ-110-462
463 411 119 2104 WASHER V 4X9X0.8 5 782MZ-110-463
464 411 087 0508 WASHER IN TW 4 2 782MZ-110-464
465 411 042 3001 SCR PAN 4X10 1 782MZ-110-465
MEMO
MODEL TPM-200F/R
0207-001
209

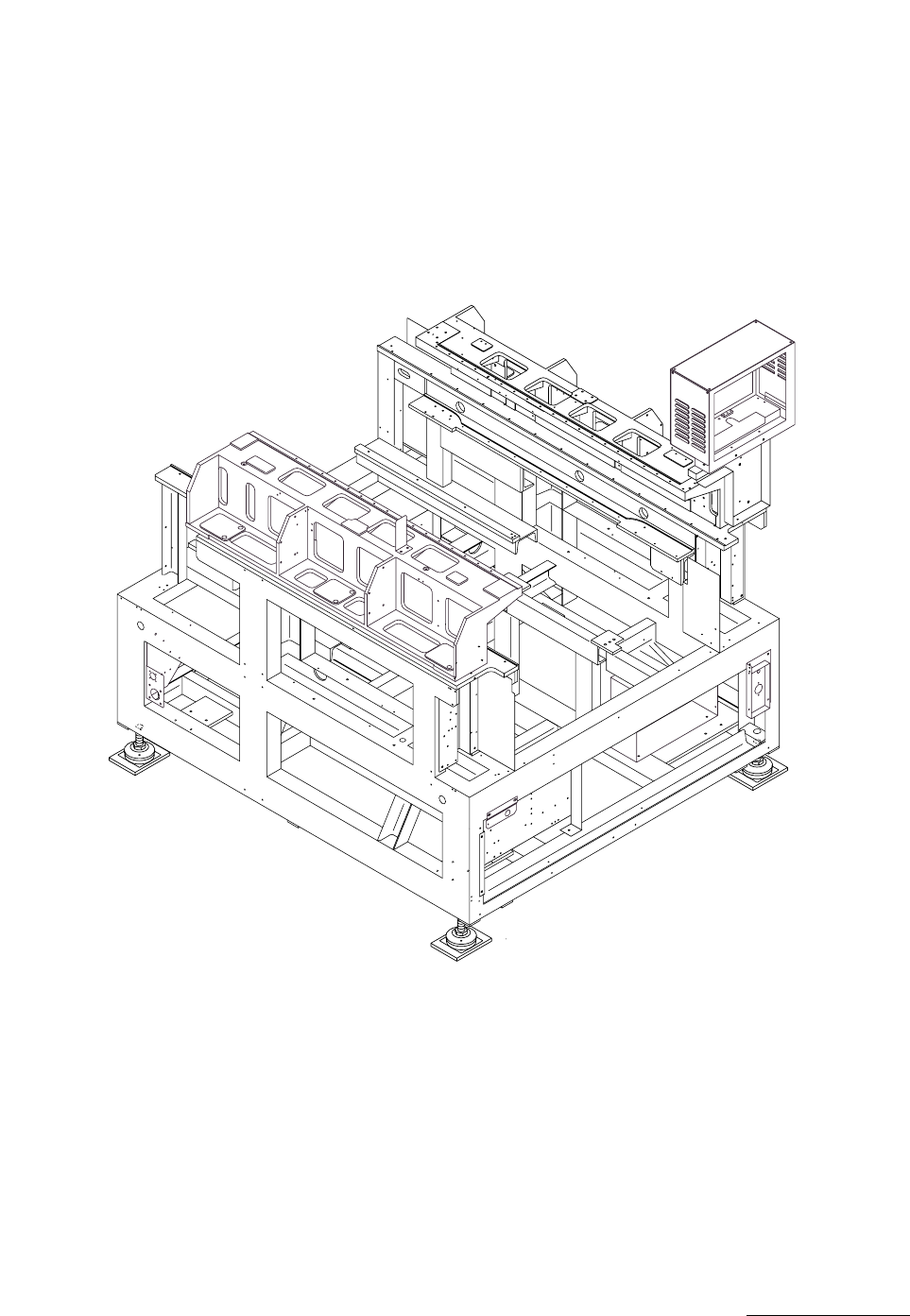

Fig. K メカ廻り
