MODEL TPM-200F/R 0207-001 254 操作パネル部 OPERA TION P ANEL SECTION Fig. RD-1 操作パネル部 Operation Panel Section Fig.RD-1 TPM-200F/R See Fig.K-4 Key No.304 61 62 63 13 10 7 8 9 3 4 . 2 6 . 5 1 . 12 11 61 62 63 64
MODEL TPM-200F/R
0207-001
253
Fig. RD 操作パネル部 OPERATION PANEL SECTION
MODEL TPM-200F/R
0207-001
254
操作パネル部 OPERATION PANEL SECTION

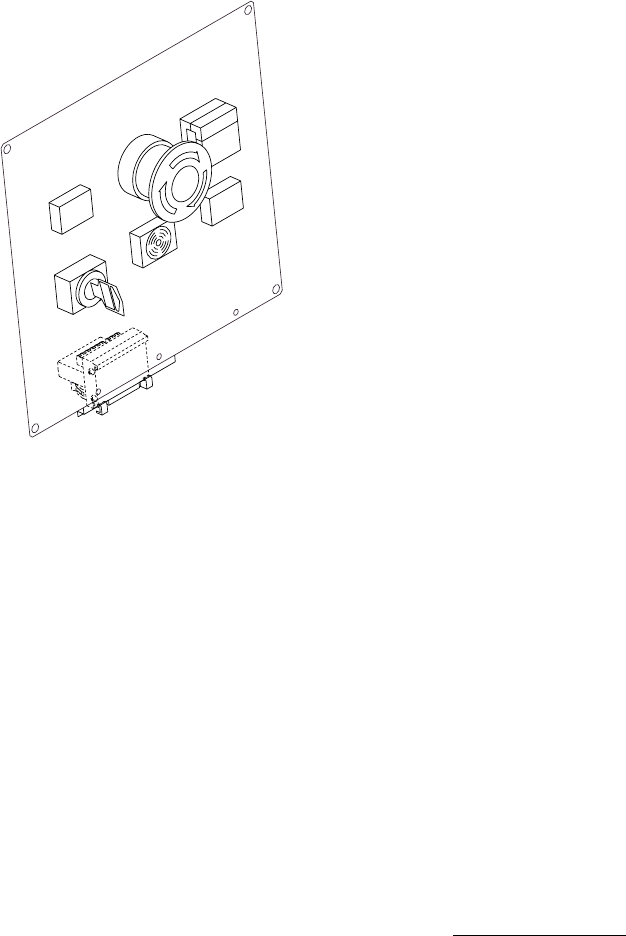

Fig. RD-1 操作パネル部 Operation Panel Section
Fig.RD-1
TPM-200F/R
See Fig.K-4
Key No.304
61
62
63
13
10
7
8
9
3
4
.
2
6
.
5
1
.
12
11
61
62
63
64
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
255
RD-1
1 630 033 4609 SWITCH,BUTTON 1 SPB001 782RD-110-001
2 630 033 4586 DISPLAY ELEMENT 1 782RD-110-002
3 630 033 4593 ACCESSORY,SW 1 HD001 782RD-110-003
4 630 036 4620 SWITCH,BUTTON 1 SPB002 782RD-110-004
5 630 000 2713 SWITCH,BUTTON 1 SPB003 782RD-110-005
6 630 000 0382 ACCESSORY,SW 1 HD003 782RD-110-006
7 630 000 3130 SWITCH,SELECTOR 1 S005 782RD-110-007
8 630 035 0074 BUZZER 1 HA006 782RD-110-008
9 630 000 2515 SWITCH,BUTTON 1 SPB004 782RD-110-009
10 407 139 6505 VARISTOR TNR9G470K 1 782RD-110-010
11 630 112 5190 CORD 1 XCN010- 782RD-110-011
12 630 106 4604 UNIT,I/O 1 N001,SAB10-TM16H3A
782RD-110-012
13 630 091 1787 ACCESSORY,WIRING 1 782RD-110-013
61 411 043 5004 SCR PAN 4X8 3 782RD-110-061
62 411 008 1706 WASHER SPR 4 3 782RD-110-062
63 411 119 2104 WASHER V 4X9X0.8 3 782RD-110-063
64 411 087 0508 WASHER IN TW 4 1 782RD-110-064
