MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 205 MZ-4 30 1 630 089 2123 SOLENOID V AL VE 1 YSV098,099, #SS5Y3-X917 782MZ-1 10-301 30 1 -01 630 091 2234 AIR LINE EQPT 1 30 1 -02 630 091 2227…
MODEL TPM-200F/R
0207-001
204
ブロアユニット部 BLOWER UNIT SECTION

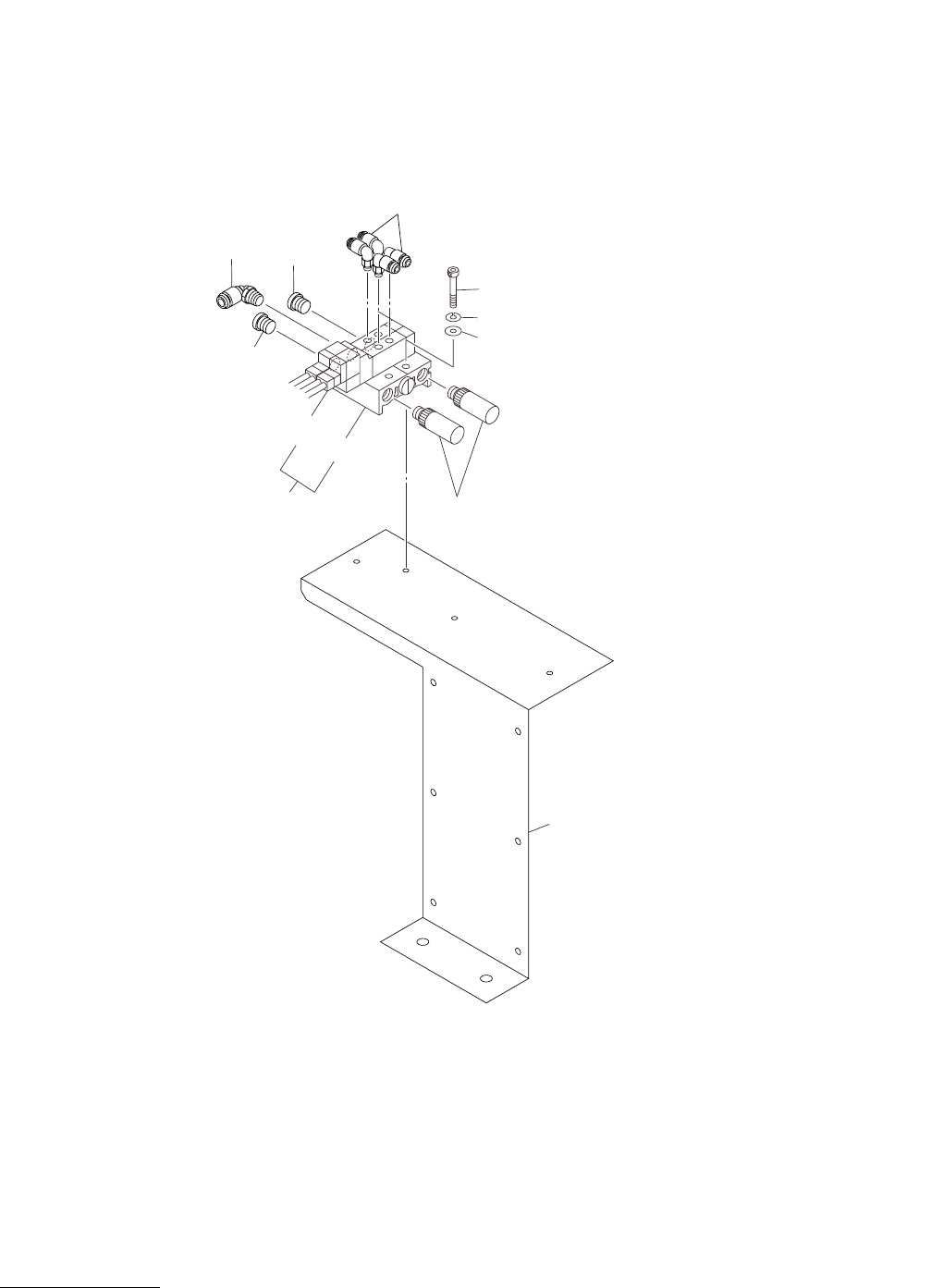

Fig. MZ-4 エア配管 Air Piping
See Fig.MZ-1
Key No.10
363
302
301
303
303
304
305
362
361
301-02
301-01
Fig.MZ-4
TPM-200F/R
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
205
MZ-4
301 630 089 2123 SOLENOID VALVE 1 YSV098,099, #SS5Y3-X917
782MZ-110-301
301 -01 630 091 2234 AIR LINE EQPT 1
301 -02 630 091 2227 SOLENOID VALVE 2
302 630 003 6541 AIR LINE EQPT 2 782MZ-110-302
303 630 088 4470 PIPE FITTINGS 2 782MZ-110-303
304 630 069 0538 PIPE FITTINGS 1 782MZ-110-304
305 630 092 8174 PIPE FITTINGS 4 782MZ-110-305
361 411 141 4008 WASHER V 4X9X0.8 2 782MZ-110-361
362 411 141 2905 WASHER SPR 4 2 782MZ-110-362
363 630 000 7671 BOLT,HEX-SCT 2 782MZ-110-363
MODEL TPM-200F/R
0207-001
206
ブロアユニット部 BLOWER UNIT SECTION

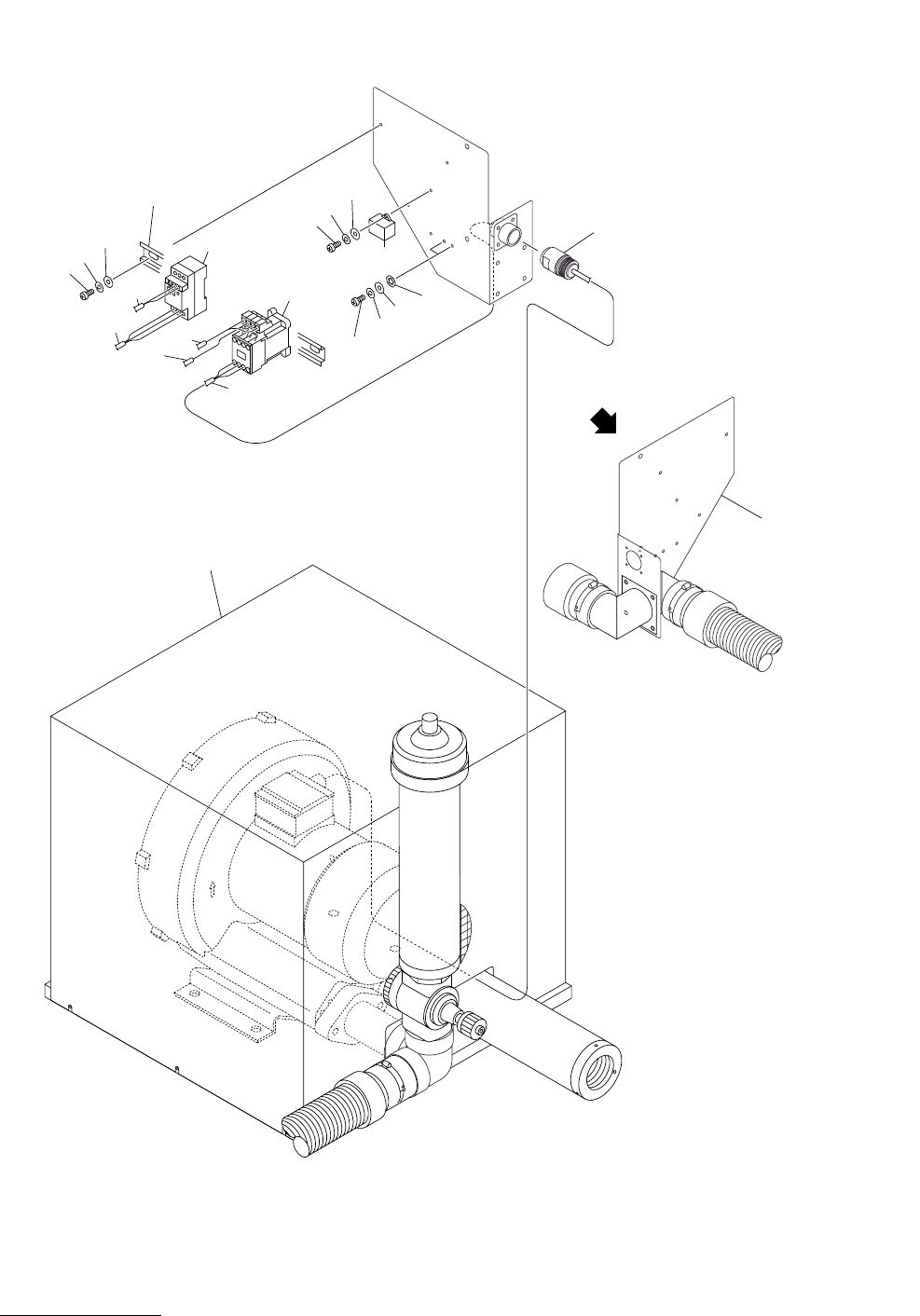

Fig. MZ-5 電装部 Electrical Parts
Fig.MZ-5
TPM-200F/R
See Fig.MZ-2
Key No.112
461
410
402
401
404
406
.
462
463
465
462
463
407
See Fig.K-5
Key No.402
405
403
411
464
463
462
461
408
409
A
VIEW"A"
